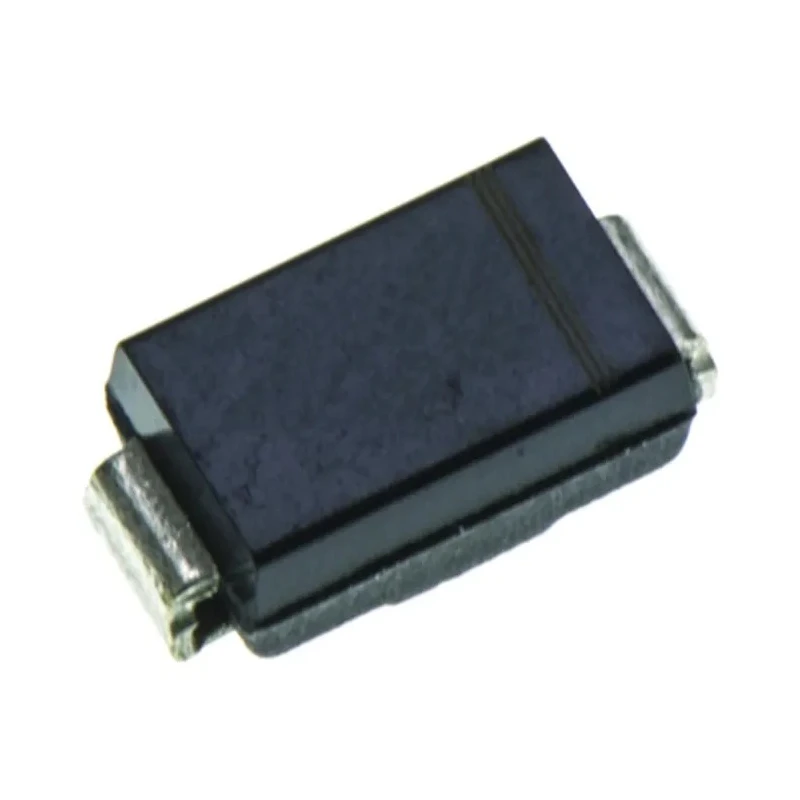

STMicroelectronics 100 V 2 A Schottky Diode Surface Mount DO-214AC STPS2H100AY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS2H100AY |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | STPS2H100-Y |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- This diode supports a maximum continuous forward current of 2 amperes.
- It features a peak reverse repetitive voltage rating of 100 volts.
- The maximum forward voltage drop is 0.6 volts ensuring minimal power loss.
- Designed for surface mount applications with a DO-214AC package type.
- Operates reliably between temperatures of -40°C to 175°C.
- Has a high peak non-repetitive forward surge current capacity of 75 amps.
- This component is a single diode Schottky rectifier with two pins.
- Compact dimensions of 4.6 mm length, 2.9 mm width, and 2.45 mm height.
Product Description
STMicroelectronics STPS2H100AY is a high-performance Schottky Diode designed for surface mount technology with a compact DO-214AC package. This diode supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 100 V, making it suitable for a range of power electronic applications.
It features a low maximum forward voltage drop of 0.6 V and a peak non-repetitive forward surge current rating of 75 A. The operating temperature range is from -40°C to 175°C, allowing for reliable performance in various industrial environments.
With two pins and single diode configuration, it offers efficient rectification with minimal power loss, ideal for power management in electronics, telecommunications, automotive electronics, and industrial equipment.
The diode’s compact dimensions of 4.6 mm length, 2.9 mm width, and 2.45 mm height enable easy integration in tight PCB layouts. This diode supports a maximum continuous forward current of 2 amperes. It features a peak reverse repetitive voltage rating of 100 volts.
The maximum forward voltage drop is 0.6 volts ensuring minimal power loss. Designed for surface mount applications with a DO-214AC package type. Operates reliably between temperatures of -40°C to 175°C. Has a high peak non-repetitive forward surge current capacity of 75 amps.
This component is a single diode Schottky rectifier with two pins. Compact dimensions of 4.6 mm length, 2.9 mm width, and 2.45 mm height. It exhibits a low peak reverse current of 1 milliampere for efficiency. Suitable for electronic circuits requiring fast switching and low loss rectification.
This diode is widely used in industrial, telecommunications, automotive, and consumer electronic applications requiring fast switching and efficient power rectification. Shop this Schottky diode and explore more semiconductor components at EnvMart for reliable industrial-grade electronic components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 2 amperes.
The peak reverse repetitive voltage rating for this model is 100 volts.
This diode has compact dimensions of 4.6 mm in length, 2.9 mm in width, and 2.45 mm in height.
The maximum forward voltage drop of this diode is 0.6 volts, which helps in minimizing power loss.
It operates reliably between temperatures of -40°C to 175°C.
The peak non-repetitive forward surge current capacity is 75 amps.
This diode is designed for surface mount applications with a DO-214AC package type.
This component features a two-pin configuration.
The peak reverse current for this model is 1 milliampere.
This component is a single diode Schottky rectifier.
It is suitable for power management in electronics, telecommunications, automotive electronics, and industrial equipment.
This diode belongs to the STPS2H100-Y series.
