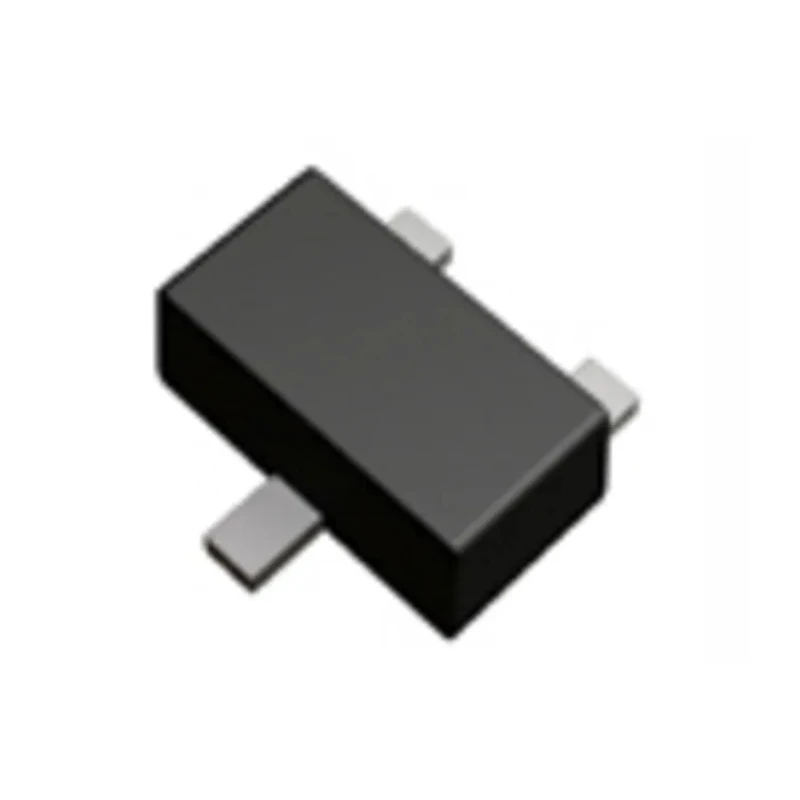

ROHM 100 mA NPN Digital Transistor, 50 V, 3-Pin SOT-416 Surface Mount DTC014EEBTL

ROHM DTC014EEBTL is a 100 mA NPN digital transistor designed for efficient switching in electronic circuits. Housed in a 3-pin SOT-416 surface mount package, it features built-in biasing resistors to ease design complexity and improve overall circuit stability.

Its collector emitter voltage rating of 50 V and maximum DC collector current of 100 mA make it suitable for a variety of low power applications. Operating temperatures range from -55°C to 150°C, enabling reliable function under harsh industrial and automotive conditions.

This transistor supports a maximum power dissipation of 150 mW and a transition frequency of 250 MHz, supporting high-speed switching essential for modern electronic devices. Compliant with the AEC-Q101 automotive standard, it is well suited for automotive and industrial use.

Common applications include portable data terminals, coin processing machines, digital multimeters (both handy and bench type), motor control applications such as brushless DC motors, PLCs, servos, stepper motors, POS systems, electric bikes, surveillance cameras, smart meters, embedded PCs, and X-ray inspection machines.

The compact dimensions (Length: 1.7mm, Width: 0.9mm, Height: 0.8mm) make it suitable for high-density circuit designs. The transistor polarity is NPN with a single transistor configuration, optimized for switching and amplification tasks.

Set contains 1 Digital Transistor component. This is a new product made primarily for industrial, automotive, and laboratory electronic applications. Maximum DC collector current of 100 mA. Maximum collector emitter voltage: 50 V.

Surface mount 3-pin SOT-416 package. Built-in bias resistors for simplified usage. Operating temperature range: -55°C to 150°C. High transition frequency: 250 MHz. AEC-Q101 automotive standard compliant. Compact size suitable for dense PCB layouts.
