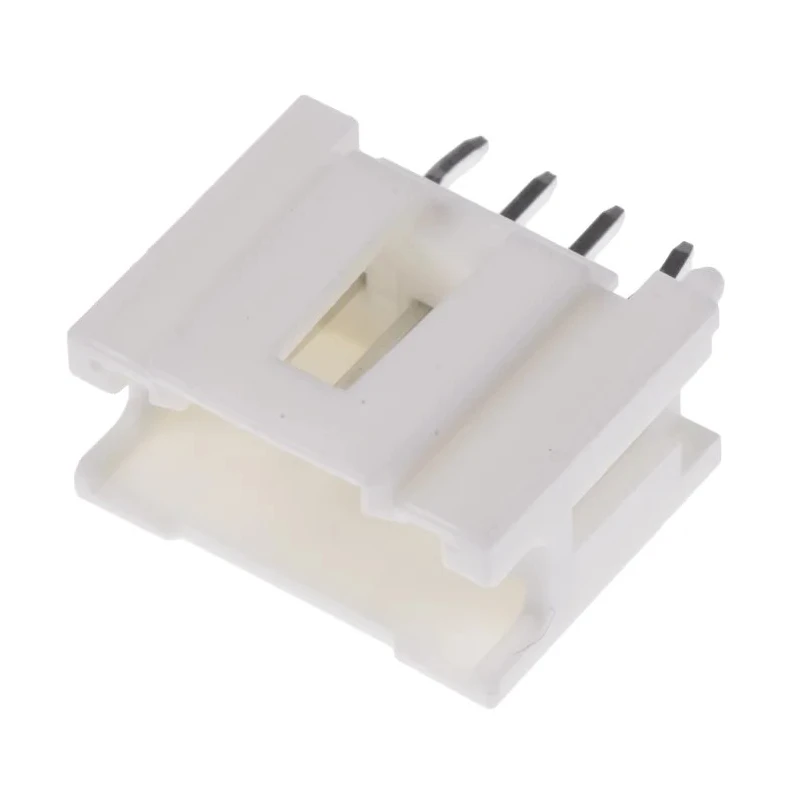

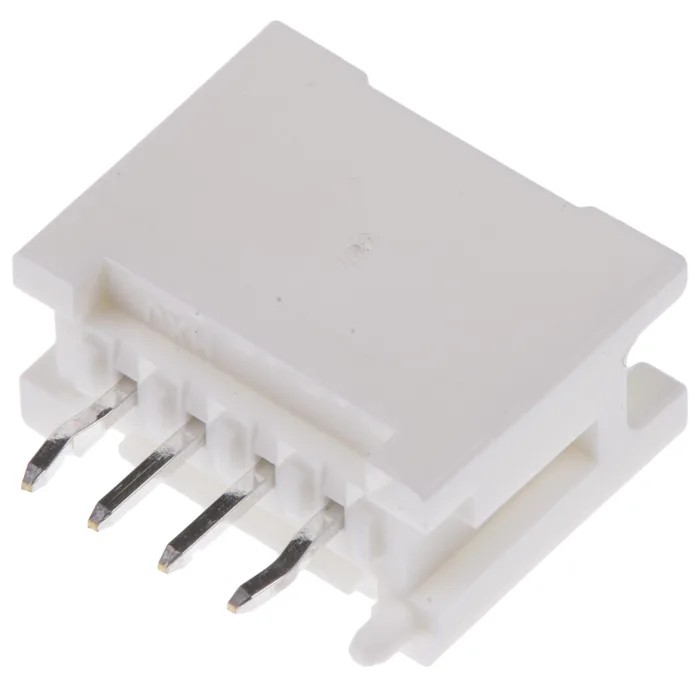

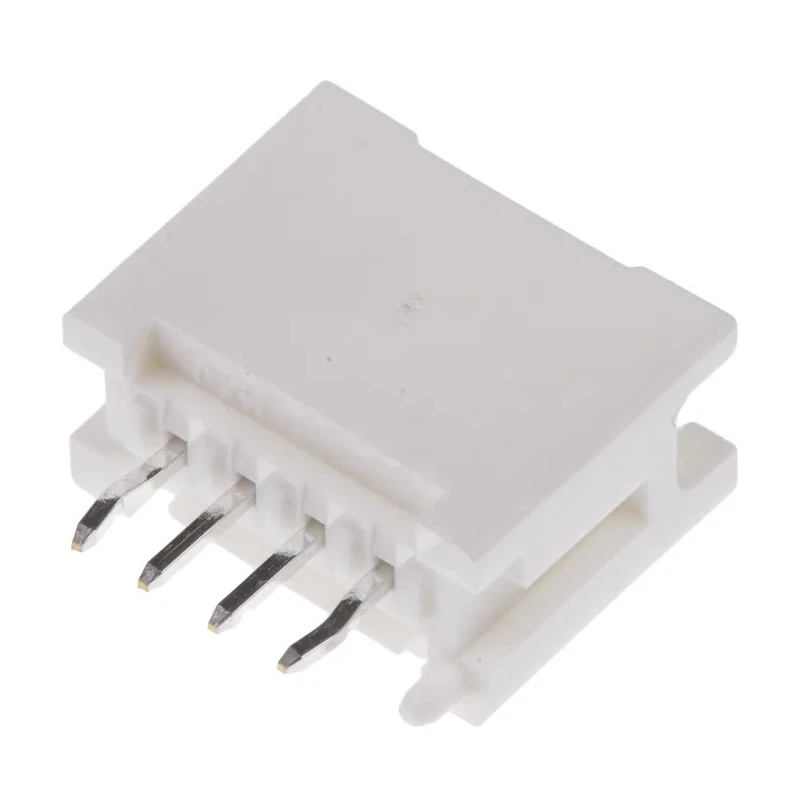

Molex MicroClasp Series 4 Contact Straight Through Hole PCB Header, 2 mm Pitch, 1 Row, Shrouded 55932-0410
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Features a 2.00 mm pitch for compact PCB layout.
- Supports up to 3 A current with tin-plated contacts for reliable conductivity.
- Shrouded design with straight orientation for secure and protected connections.
- Constructed with durable polyester housing suitable for harsh environments.
- Operating temperature ranges from -40°C to 105°C for versatile applications.
- Mount type is through hole with solder termination ensuring strong mechanical stability.
- Includes inner positive lock for latch protection and audible mating click.
- Tail pin length is 3.2 mm and mating pin length is 2 mm to ensure proper fit.
Product Description
Molex 55932-0410 MicroClasp Series PCB Header is a high-quality, single row, straight through hole connector featuring 4 contacts and a 2 mm pitch. This shrouded wire-to-board header is engineered for space savings on printed circuit boards and provides secure, easy mating and unmating.
The 2.00 mm pitch MicroClasp™ system incorporates an inner positive lock mechanism that ensures latch protection and secure retention, accompanied by an audible mating click to confirm connection. The contacts are female with tin plating for excellent conductivity and corrosion resistance. The housing is made from polyester, offering robustness and endurance in industrial and electronic applications.
The operating temperature range of -40°C to 105°C makes this header suitable for demanding environments. It carries a current of up to 3 A on each contact and supports a system voltage of 250 V. The through hole mount with solder termination ensures a durable mechanical connection to the PCB.
Additional features include low insertion force terminal design, two-point contact for high current handling, and a housing lance system that contributes to PCB space saving. The header is intended for use in electronics manufacturing for control panels, industrial automation, communications equipment, and other electronic assemblies requiring reliable wire-to-board connections.
2 mm pitch single row PCB header with 4 contacts and shrouded design. Inner positive lock provides secure mating with audible click. Compact design enables PCB space savings and easy assembly. Polyester housing and tin-plated contacts ensure durability and conductivity.
Supports up to 3 A current and 250 V operating voltage. Wide operating temperature from -40°C to 105°C. Through hole solder termination for strong mechanical PCB attachment. Manufactured in Japan under strict quality controls.
Choose the Molex MicroClasp PCB Header 55932-0410 for efficient, reliable wire-to-board connections in industrial and electronic applications. Explore more electronics components and connectors in EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Molex MicroClasp Series 4 Contact PCB header is 2.00 mm, designed for compact PCB layout.
This model supports a maximum current of 3 A on each contact, making it suitable for various applications.
The operating temperature range for this header is from -40°C to 105°C, allowing it to function in diverse environments.
The termination type for this unit is solder, ensuring a strong mechanical connection to the PCB.
This PCB header features 4 contacts, designed for efficient wire-to-board connections.
The housing of this model is constructed from durable polyester, suitable for harsh environments.
This unit has a straight orientation, which facilitates secure and protected connections.
The tail pin length of this model is 3.2 mm, ensuring a proper fit during installation.
This PCB header utilizes a wire-to-board connector system, designed for reliable connections in electronic assemblies.
This model is shrouded, which provides additional protection and security for the connections.
The voltage rating for this unit is 250 V, making it suitable for various electronic applications.
This model is manufactured in Japan under strict quality controls, ensuring high standards.
