Nexperia 100 V 250 mA Surface Mount Schottky Barrier Diode 2-Pin SOD-123 BAT46GWX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 100 V 250 mA Surface Mount Schottky Barrier Diode 2-Pin SOD-123 BAT46GWX

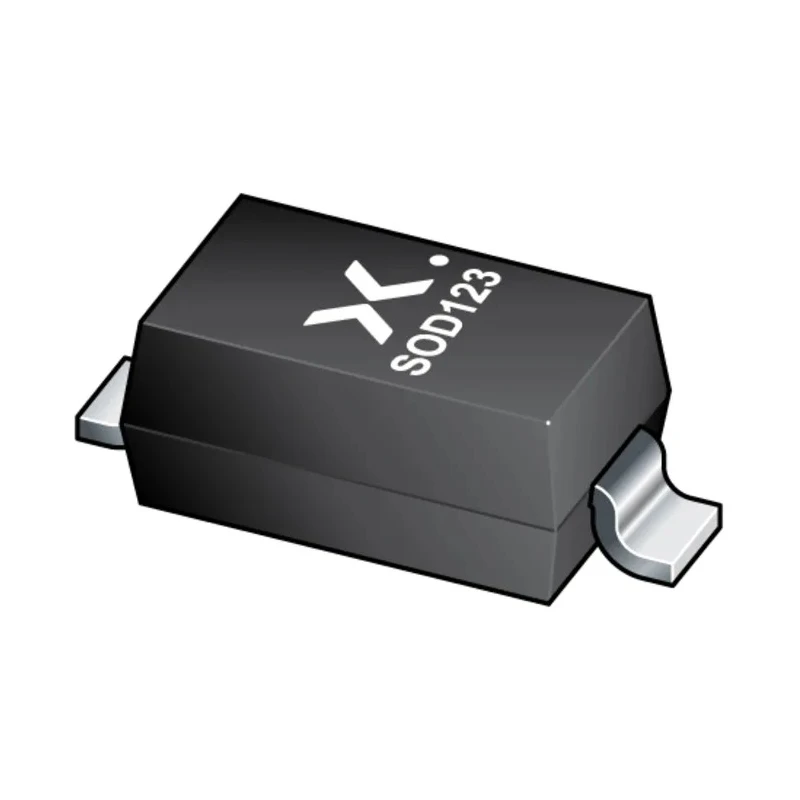

Name: Nexperia 100 V 250 mA Surface Mount Schottky Barrier Diode 2-Pin SOD-123 BAT46GWX
Brand: Nexperia
SKU: 147713
Price: 0.07 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.3mm
Length	2.8mm
Model	BAT46GWX
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	250mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	600μA
Peak Non-Repetitive Forward Surge Current Ifsm	2.5A
Maximum Forward Voltage Vf	850mV
Peak Reverse Recovery Time trr	5.9ns
Low forward voltage	VF ≤ 850 mV
Low leakage current	IR ≤ 4 μA

Key Features

Low forward voltage of up to 850 mV ensures efficient power performance.
Maximum continuous forward current of 250 mA suitable for low current applications.
Peak reverse repetitive voltage of 100 V protects circuits from voltage spikes.
Supplied in compact SOD-123 plastic surface-mounted device package.
High-speed switching with a peak reverse recovery time of 5.9 ns.
Low leakage current with peak reverse current limited to 600 µA.
Wide operating temperature range from -55°C to 150°C for reliable performance.
Compliant with automotive standard AEC-Q101 ensuring quality and durability.

Product Description

Nexperia BAT46GWX is a 100 V 250 mA planar Schottky barrier diode specifically designed for surface mount applications. Encapsulated in a 2-pin SOD-123 plastic package, it is highly suitable for electronic circuits requiring efficient high-speed switching, voltage clamping, and reverse polarity protection.

This diode exhibits a low forward voltage drop (VF ≤ 850 mV) and low leakage current (IR ≤ 4 µA), contributing to energy-efficient operation and reduced heat generation. Its maximum continuous forward current is 250 mA with a peak reverse repetitive voltage of 100 V, providing robust protection for sensitive circuits.

The device supports a rapid peak reverse recovery time of 5.9 nanoseconds and a peak non-repetitive forward surge current of 2.5 A, making it reliable under transient conditions. The integrated guard ring provides stress protection to enhance durability in demanding environments.

Nexperia BAT46GWX operates reliably across a wide temperature range of -55°C to 150°C and complies with automotive standard AEC-Q101, making it suitable for automotive and industrial electronic applications. The compact SOD-123 package ensures minimal board space usage and easy integration in modern PCB designs.

Low forward voltage of up to 850 mV ensures efficient power performance. Maximum continuous forward current of 250 mA suitable for low current applications. Peak reverse repetitive voltage of 100 V protects circuits from voltage spikes.

Compact and durable SOD-123 surface mount package provides space-saving benefits. High-speed switching capability with peak reverse recovery time of 5.9 ns. Low leakage current enhances energy efficiency and reliability.

Wide operating temperature range from -55°C to 150°C ensures stable operation in harsh environments. AEC-Q101 qualification certifies automotive grade quality and reliability. Integrated guard ring offers stress protection for extended device lifespan.

This Schottky diode is ideal for use in industrial, automotive, communication electronics, power supply circuits, and other high-frequency switching applications. Browse related Nexperia semiconductor products at EnvMart for a wide range of Diodes and Rectifiers.
