Nexperia 100 V 4.2 A Medium Power Low Forward Voltage Schottky Diode 2-Pin SOD-128 PMEG10030ELPX

The Nexperia PMEG10030ELPX is a medium power Schottky diode designed for efficient rectification in electronic circuits. It features a maximum continuous forward current of 4.2 A and can withstand peak reverse voltages up to 100 V, making it suitable for power supply and voltage protection applications in industrial and automotive electronics.

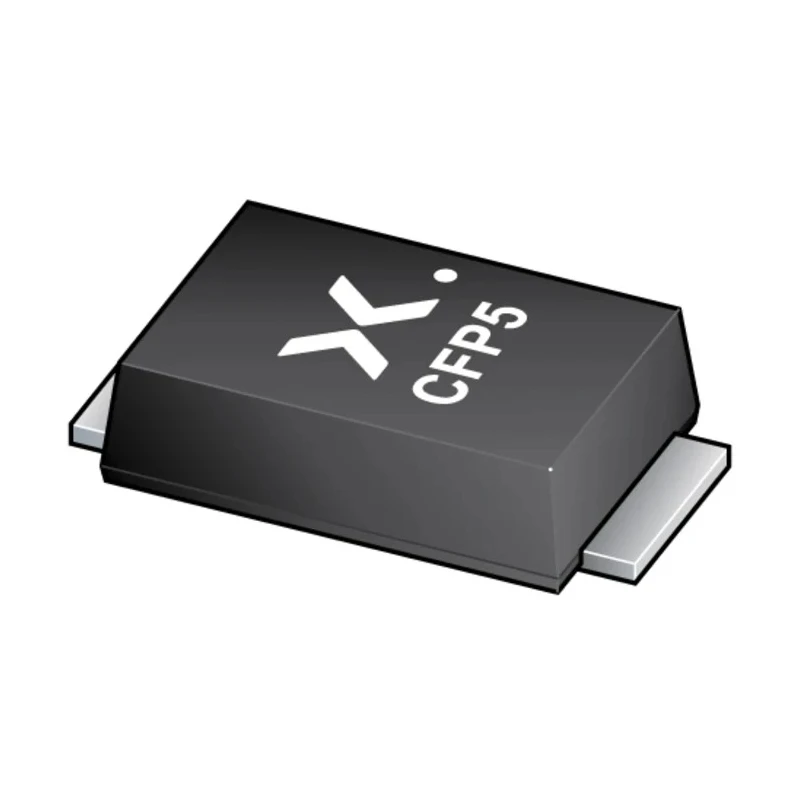

This diode is housed in a SOD-128 small, flat, two-pin plastic surface-mounted package, enabling compact configuration of printed circuit boards (PCBs) where space saving is essential. The device's planar MEGA (Maximum Efficiency General Application) design incorporates a low forward voltage drop, reducing power losses and improving overall circuit efficiency.

Robust construction includes clip-bonding technology which enhances high power handling capabilities. The integrated guard ring protects against electrical stress, making it reliable under demanding conditions. The diode supports a broad operating temperature range from -55°C to 175°C, allowing use in harsh industrial environments. Its peak non-repetitive forward surge current is rated at 70 A for transient overload tolerance.

Electrical characteristics include a maximum forward voltage of 770 mV and a very low peak reverse current of 1.5 mA. The device supports fast switching with an 8 ns peak reverse recovery time, advantageous in high-frequency applications.

The PMEG10030ELPX is AEC-Q101 qualified, stressing its suitability for automotive systems requiring high reliability and compliance with industry standards.

Typical uses include power management modules, battery protection, DC/DC converters, and general industrial electronics where efficient, reliable low voltage-drop diode rectification is needed.

Provides medium power rectification with low forward voltage drop. Operates efficiently at high temperatures up to 175°C. Has a peak reverse voltage of 100 V and continuous forward current of 4.2 A. Designed with clip-bonding technology for high power capability.

Equipped with integrated guard ring for stress protection. Features extremely low leakage current ensuring energy efficiency. Qualified to automotive standard AEC-Q101 for high reliability. Compact and flat surface-mounted device suitable for space-saving applications.

Peak non-repetitive forward surge current rating is 70 A for transient conditions. High speed switching with peak reverse recovery time of 8 ns. Explore further Nexperia diodes and semiconductors in the Electronics & Electricals category at EnvMart.
