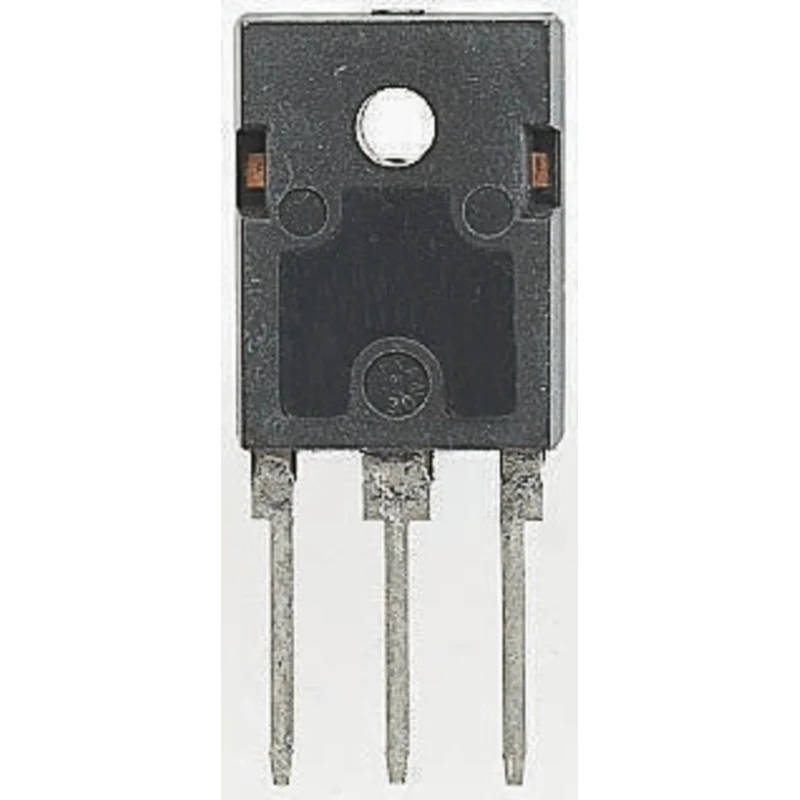

STMicroelectronics 1200 V 30 A Single Switching Diode Through Hole DO-247 Package STTH3012W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH3012W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH3012 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 2.25V |
| Peak Reverse Recovery Time trr | 115ns |
Key Features
- Maximum continuous forward current of 30 amperes for high power applications.
- Peak reverse repetitive voltage rating is 1200 volts ensuring reliable blocking capability.
- Fast peak reverse recovery time of 115 nanoseconds for efficient switching.
- Maximum forward voltage of 2.25 volts to minimize conduction losses.
- Operates within a wide temperature range from -65°C to 175°C.
- Two-pin single diode configuration suitable for rectification and switching circuits.
- ROHS compliant with through-hole mount type for easy PCB integration.
- Compact dimensions with length 15.75 mm, width 5.15 mm, height 20.15 mm, and diameter 3.55 mm.
Product Description
STMicroelectronics STTH3012W is a single switching diode designed for high current and voltage industrial applications. Rated at 1200 volts peak reverse repetitive voltage and 30 amperes continuous forward current, this diode efficiently handles power rectification and switching tasks.
Housed in a DO-247 through-hole package, the STTH3012W offers excellent reliability with robust electrical characteristics including a maximum forward voltage drop of 2.25 volts and a peak reverse recovery time of 115 nanoseconds. This ensures low losses and fast switching suitable for power supply circuits and motor drive applications.
This diode operates safely within a wide temperature range from -65°C up to 175°C, making it suitable for harsh industrial and automotive environments. The device's physical dimensions allow easy assembly on printed circuit boards using standard through-hole mount techniques.
Features such as a peak surge current of 210 amperes enable protection during transient and fault conditions, enhancing overall system durability. The two-pin single diode configuration supports integration in discrete semiconductor designs requiring precise switching and rectifying functions.
Maximum continuous forward current of 30 amperes for heavy-duty use. Peak reverse repetitive voltage rating of 1200 volts for blocking high voltage spikes. Fast reverse recovery time minimizes switching losses. Peak forward surge current of 210 amperes for transient protection.
ROHS compliant packaging suited for through hole installation. Operates over a broad temperature range from -65°C to 175°C. Compact DO-247 package with detailed form factors for PCB layout. Ideal for industrial power electronics, motor controls, and rectifier circuits.
This diode is part of STMicroelectronics’ series of rectifiers and switching diodes tailored for power applications. It enables efficient power management in semiconductors, power supplies, and electrical systems requiring reliable and fast diode switching components.
Explore more in the Semiconductor Diodes category for compatible components to enhance your industrial and electronic designs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 30 amperes, making it suitable for high power applications.
The peak reverse repetitive voltage rating is 1200 volts, ensuring reliable blocking capability for high voltage applications.
The peak reverse recovery time is 115 nanoseconds, which allows for efficient switching in power applications.
This diode has a length of 15.75 mm, width of 5.15 mm, height of 20.15 mm, and a diameter of 3.55 mm.
The maximum forward voltage drop is 2.25 volts, which helps minimize conduction losses during operation.
It operates within a wide temperature range from -65°C to 175°C, making it suitable for harsh environments.
The STTH3012W features a through-hole mount type, allowing for easy integration into printed circuit boards.
The peak non-repetitive forward surge current is rated at 210 amperes, providing transient protection during fault conditions.
This model has a single diode configuration, suitable for rectification and switching circuits.
Yes, the STTH3012W is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The peak reverse current is specified at 20 microamperes, indicating low leakage during reverse bias operation.
This diode is suitable for industrial power electronics, motor controls, and rectifier circuits, enabling efficient power management.
