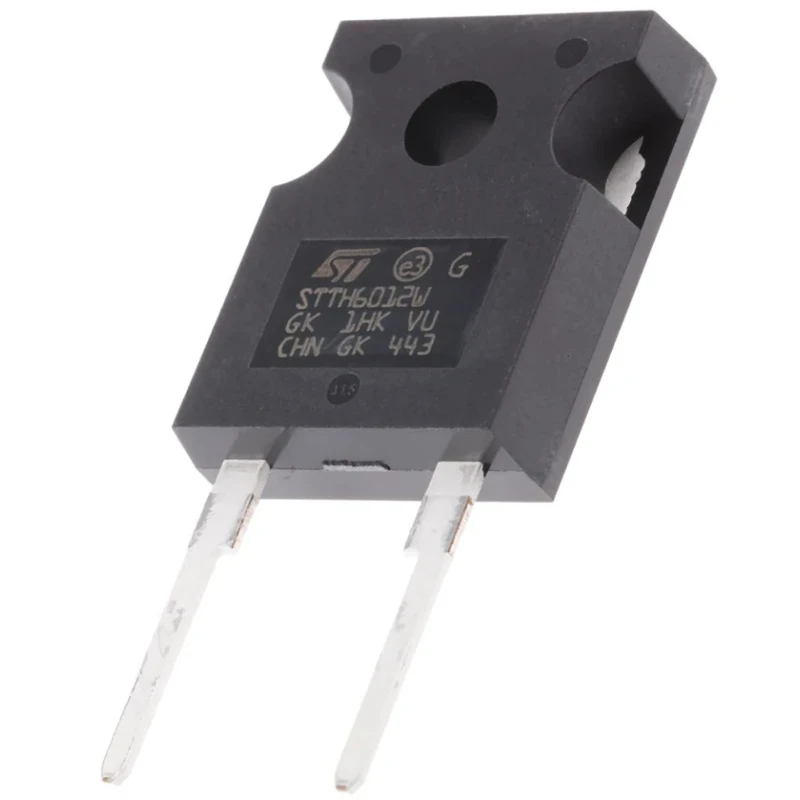

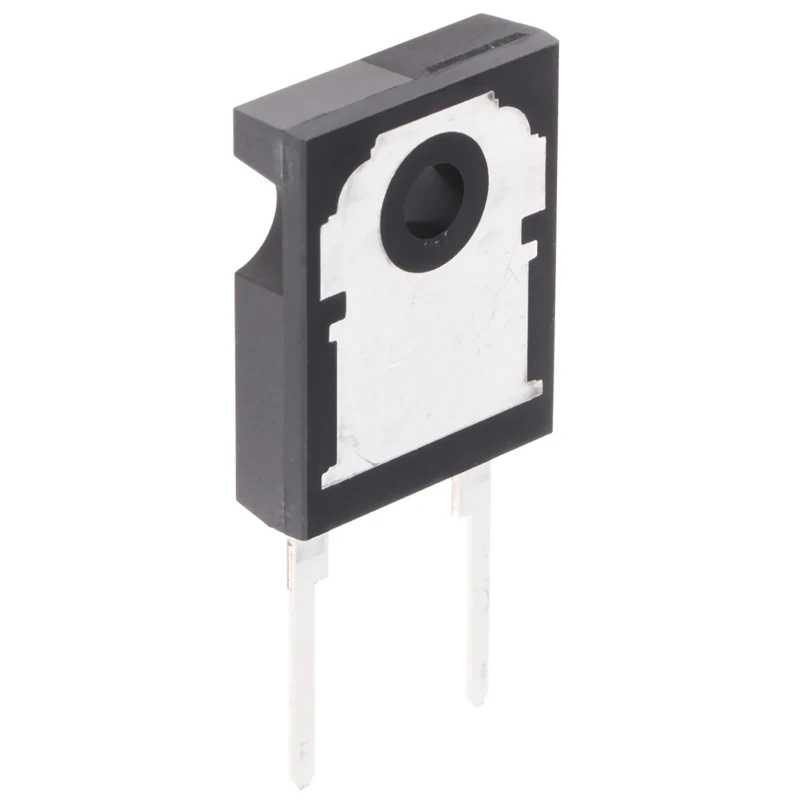

STMicroelectronics 1200 V 60 A Switching Rectifier Diode DO-247 STTH6012W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.65mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH6012W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH6012 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | JEDEC JESD97, ECOPACK, UL94 V0 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 2.25V |
| Peak Reverse Recovery Time trr | 125ns |
Key Features
- Through hole mounting enhances mechanical stability.
- Maximum continuous forward current of 60 amperes.
- Peak reverse repetitive voltage rated at 1200 volts.
- Low forward voltage drop of 2.25 volts improves efficiency.
- Peak reverse recovery time of 125 nanoseconds supports fast switching.
- Wide operating temperature range from -65°C to 175°C.
- Rectifier configured as a single diode for switching applications.
- Complies with JEDEC JESD97, ECOPACK, and UL94 V0 standards.
Product Description
STMicroelectronics STTH6012W is a high-performance single switching rectifier diode housed in a robust 2-pin DO-247 through-hole package. It handles a maximum continuous forward current of 60 A and a peak reverse repetitive voltage of 1200 V, making it ideal for demanding switching applications in industrial and power electronics.
The diode's low maximum forward voltage of 2.25 V minimizes conduction losses, enhancing overall efficiency. Its fast peak reverse recovery time of 125 ns supports efficient switching frequencies without significant delay or energy loss. Designed to operate reliably across a broad temperature range from -65°C to 175°C, it withstands harsh environments.
Physical dimensions include a height of 20.15 mm, length of 15.75 mm, width of 5.15 mm, and a diameter of 3.65 mm, offering compatibility with standard through-hole mounting on printed circuit boards.
Standards compliance includes JEDEC JESD97 for device performance, ECOPACK for environmental considerations, and UL94 V0 for flame retardancy, ensuring quality and safety in application.
Through hole mounting enhances mechanical stability. Maximum continuous forward current of 60 amperes. Peak reverse repetitive voltage rated at 1200 volts. Low forward voltage drop of 2.25 volts improves efficiency. Peak reverse recovery time of 125 nanoseconds supports fast switching.
Wide operating temperature range from -65°C to 175°C. Rectifier configured as a single diode for switching applications. Complies with JEDEC JESD97, ECOPACK, and UL94 V0 standards.
This diode is extensively used in industrial automation, power conversion systems, and electronic manufacturing for switching and rectification tasks. Its rugged construction and reliable specifications make it a preferred choice for electrical engineers and system designers.
Explore more semiconductor components by STMicroelectronics and other brands in the Electronics & Electricals category on EnvMart.
Explore more products in our Switching Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 60 amperes.
It is rated for a peak reverse repetitive voltage of 1200 volts.
The maximum forward voltage drop is 2.25 volts, which helps improve efficiency.
The peak reverse recovery time is 125 nanoseconds, supporting efficient switching frequencies.
The diode operates reliably across a wide temperature range from -65°C to 175°C.
The dimensions are height 20.15 mm, length 15.75 mm, width 5.15 mm, and diameter 3.65 mm.
It features through-hole mounting, enhancing mechanical stability.
It complies with JEDEC JESD97, ECOPACK, and UL94 V0 standards.
The diode is configured as a single diode for switching applications.
The peak non-repetitive forward surge current is rated at 400 amperes.
This diode is extensively used in industrial automation, power conversion systems, and electronic manufacturing for switching and rectification tasks.
The peak reverse current is rated at 30 microamperes.
