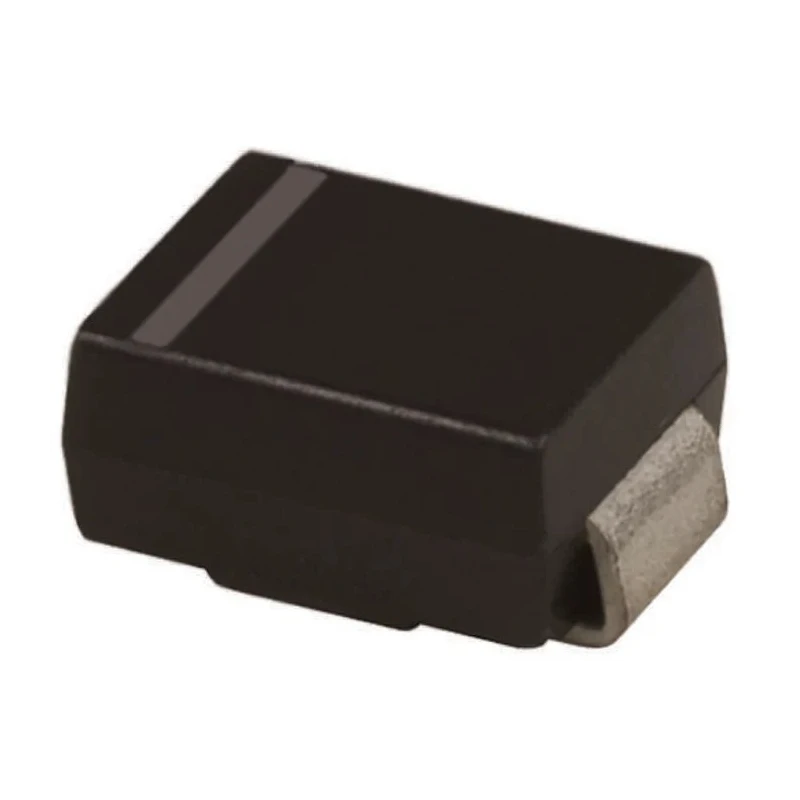

STMicroelectronics 1200 V 2 A Switching Rectifier Diode Surface Mount DO-214AA STTH212U
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STTH212U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STTH212 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -50°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 1.75V |
| Peak Reverse Recovery Time trr | 75ns |
| STMicroelectronics 1200 V 1 A Diode Switching 2-Pin DO-214AC STTH112ABrand | STMicroelectronics |
Key Features
- Offers a low forward voltage drop of 1.75 V for improved efficiency.
- Capable of continuous forward current of 2 A with a peak surge current up to 40 A.
- Operates within a wide temperature range from -50°C to 175°C.
- Features a fast peak reverse recovery time of 75 ns for high-speed switching.
- Compact surface mount design with dimensions 4.6 mm length, 3.95 mm width, and 2.45 mm height.
- Single diode configuration with 2 pins in DO-214AA package.
- Peak reverse voltage rating of 1200 V for blocking capability.
- Qualifies as a switching rectifier suitable for industrial and electronic power supplies.
Product Description
STMicroelectronics STTH212U is a robust switching rectifier diode designed for electronic power and semiconductor applications requiring high voltage and fast switching performance. This diode features a maximum continuous forward current rating of 2 A and a peak repetitive reverse voltage of 1200 V, making it ideal for use in power supplies, converters, and industrial circuits.
Encapsulated in a compact surface mount DO-214AA package, the STTH212U minimizes PCB space while providing excellent thermal and electrical characteristics. It offers a low forward voltage of 1.75 V and a fast reverse recovery time of 75 ns, enabling efficient high-frequency switching operation.
The diode can sustain surge currents up to 40 A for short durations, supporting transient loads encountered in power applications. It operates reliably across a broad temperature range from -50°C to 175°C, suitable for harsh industrial environments.
This component is best suited for industrial electronics, power management, and semiconductor switching circuits, including inverters, rectifiers, and motor drives. Its switching speed and voltage ratings ensure effective performance in demanding electronic designs.
Offers a low forward voltage drop of 1.75 V for improved efficiency. Capable of continuous forward current of 2 A with a peak surge current up to 40 A. Operates within a wide temperature range from -50°C to 175°C. Features a fast peak reverse recovery time of 75 ns for high-speed switching.
Compact surface mount design with dimensions 4.6 mm length, 3.95 mm width, and 2.45 mm height. Single diode configuration with 2 pins in DO-214AA package. Peak reverse voltage rating of 1200 V for blocking capability. Qualifies as a switching rectifier suitable for industrial and electronic power supplies.
Discover more components like the STTH212U in the STMicroelectronics diode and rectifier category on EnvMart for industrial, laboratory, and commercial electronics design and repair.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A.
The peak reverse voltage rating is 1200 V, providing effective blocking capability.
It has a low forward voltage drop of 1.75 V, which improves efficiency.
This diode can sustain a peak surge current of up to 40 A for short durations.
It operates within a wide temperature range from -50°C to 175°C.
This model comes in a compact surface mount DO-214AA package.
The peak reverse recovery time is 75 ns, allowing for high-speed switching.
This diode has a single configuration with 2 pins.
The height of this model is 2.45 mm.
The dimensions are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
It is suitable for industrial electronics, power management, and semiconductor switching circuits.
The country of origin for this diode is India.
