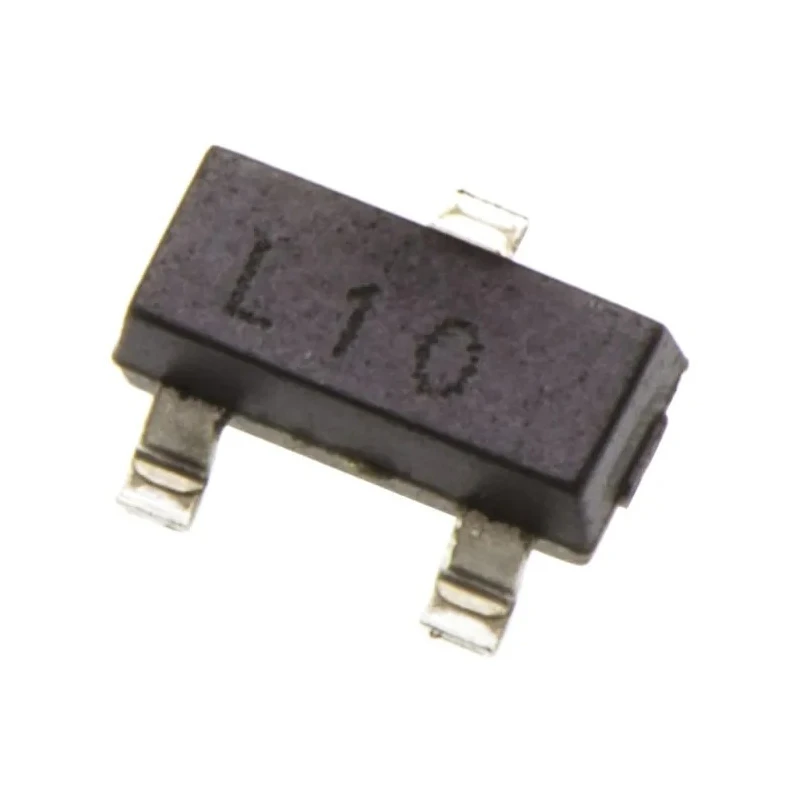

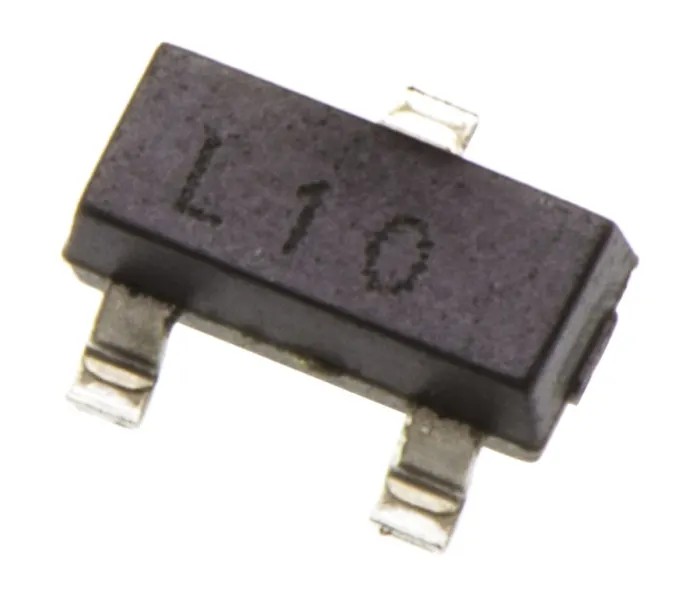

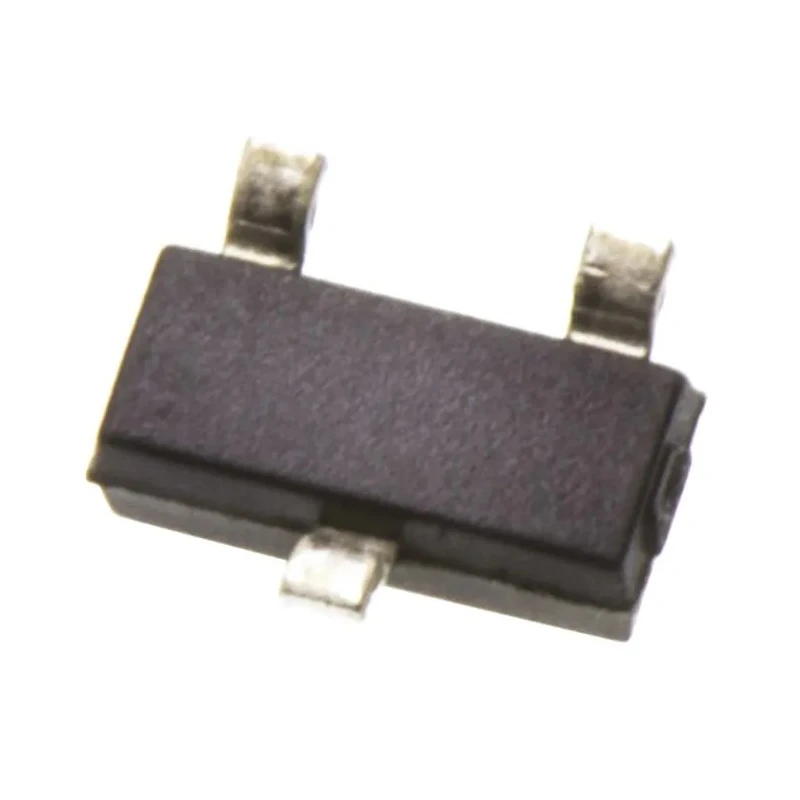

DiodesZetex 40 V 1.1 A Low Leakage Single Diode 3-Pin SOT-23 Package ZLLS1000TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3.05mm |
| Model | ZLLS1000TA |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | ZLLS1000X |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Low Leakage |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 6.4A |
| Maximum Forward Voltage Vf | 660mV |
| Peak Reverse Recovery Time trr | 4ns |
Key Features
- This diode provides a maximum forward voltage of 660 mV for efficient operation.
- It has a peak reverse repetitive voltage of 40 V, suitable for various low voltage applications.
- The device offers a peak non-repetitive forward surge current of 6.4 A.
- Operating temperature ranges from -55°C to 150°C, ensuring reliability under harsh conditions.
- The diode features a fast peak reverse recovery time of 4 ns for improved switching performance.
- Automotive standard AEC-Q101 qualified, suitable for automotive and industrial applications.
- With a height of 1 mm, length of 3.05 mm, and width of 1.4 mm, it is ideal for compact PCB designs.
Product Description
DiodesZetex ZLLS1000TA is a high-performance low leakage Schottky diode designed for efficient rectification and switching in electronic circuits. This single diode comes in a 3-pin SOT-23 surface mount package, making it highly suitable for compact PCB layouts in consumer electronics, industrial controls, and automotive systems.
Operating at a maximum continuous forward current of 1.1 A and a peak reverse repetitive voltage of 40 V, the diode ensures reliable operation in low voltage environments. Its low forward voltage drop of 660 mV enhances energy efficiency by minimizing power loss in the circuit.
The device withstands a peak non-repetitive forward surge current of 6.4 A, providing robustness against transient current spikes. It operates reliably across a wide temperature range from -55°C up to 150°C, making it suitable for demanding industrial and automotive applications.
The ZLLS1000TA diode is qualified to the AEC-Q101 automotive standard, guaranteeing compliance with rigorous quality and reliability requirements needed in automotive electronics. The fast peak reverse recovery time of 4 ns allows for high switching speeds, enhancing performance in power and signal rectification tasks.
Compact physical dimensions including a height of 1 mm, length of 3.05 mm, and width of 1.4 mm facilitate integration into densely packed PCB assemblies. These features make the ZLLS1000TA an ideal choice for designers requiring a reliable and space-efficient Schottky diode solution.
This low leakage Schottky Diode minimizes power loss in rectification applications. Compliance with AEC-Q101 ensures suitability for automotive electronics. Wide operating temperature range supports industrial and automotive environments.
Compact 3-pin SOT-23 package enables space-saving PCB layouts. Fast switching improves efficiency in power conversion and signal processing. High peak surge current capacity offers protection against transient surges. Robust electrical characteristics contribute to improved device longevity.
For more advanced semiconductor components, explore the semiconductor category at EnvMart to find matching parts and complementary devices for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1.1 A.
It has a peak reverse repetitive voltage rating of 40 V.
The maximum forward voltage drop is 660 mV.
The peak non-repetitive forward surge current is 6.4 A.
It operates reliably within a temperature range of -55°C to 150°C.
The ZLLS1000TA comes in a 3-pin SOT-23 surface mount package.
The peak reverse recovery time is 4 ns.
Yes, it is qualified to the AEC-Q101 automotive standard, making it suitable for automotive applications.
The dimensions are 1 mm in height, 3.05 mm in length, and 1.4 mm in width.
It features a single diode configuration.
The peak reverse current is 20 μA.
This model is classified as a low leakage rectifier.
