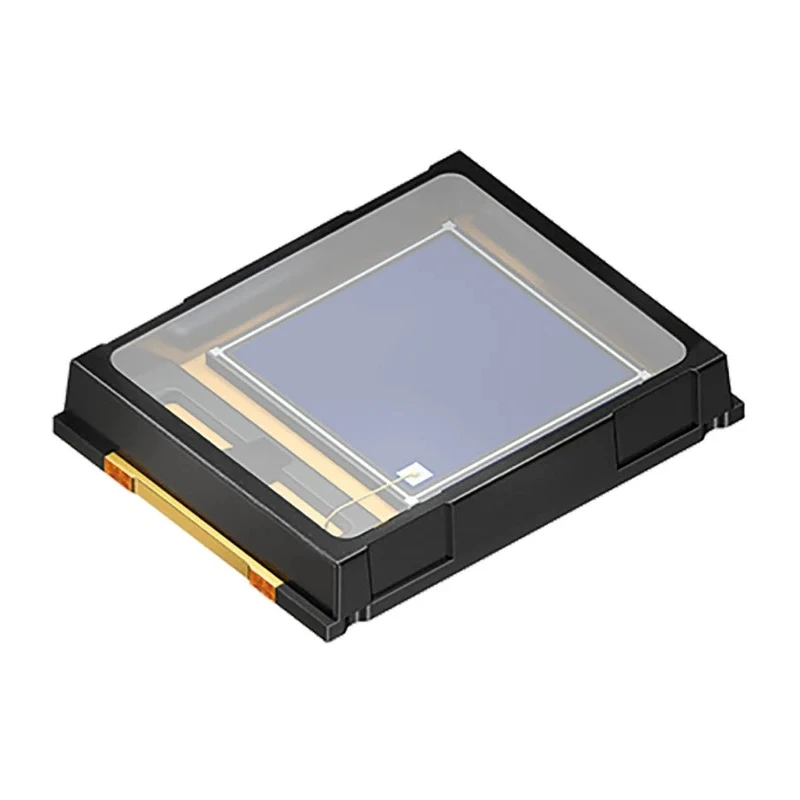

ams OSRAM Photodiode 400 to 1100 nm Wavelength, ±60 ° Half Sensitivity Angle, Surface Mount TopSense SFH 2200

ams OSRAM SFH 2200 is a silicon PIN photodiode designed for photodetection applications, featuring a spectral range from 400 nm to 1100 nm and a peak sensitivity at 940 nm. Its surface mount TopSense package and ±60 ° half sensitivity angle make it ideal for integration in compact electronic systems.

The photodiode's compact size, measuring 5.09 mm in length, 4 mm in width, and 0.85 mm in height, enables easy incorporation into densely populated circuit boards. It operates reliably within a wide temperature range of -40°C to 85°C, suitable for various industrial and consumer electronics environments.

With a low dark current of 1 nA and fast typical rise and fall times of 0.04 μs, the SFH 2200 ensures precise and rapid photodetection. Its forward polarity, along with a breakdown voltage of 20 V and an open circuit voltage of 365 V, supports robust performance in control and drive circuits as well as photointerrupters.

The device is supplied in tape and reel packaging with 2 pins, facilitating automated assembly processes in manufacturing settings. It meets several standards including JEDEC J-STD-020D.01, IEC 60286-3, ANSI/ESDA/JEDEC JS-001 - HBM, and EIA 481-D, ensuring quality and reliability. This photodiode is manufactured in Malaysia and is well-suited for industrial electronics, consumer electronics, remote control systems, and other optoelectronic applications.

Detects a wide wavelength range from 400 to 1100 nm. Peak sensitivity wavelength at 940 nm ensures efficient photodetection. Compact dimensions of 5.09 mm length, 4 mm width, and 0.85 mm height. Surface mount package type designed for TopSense applications.

Operates reliably within temperature range of -40°C to 85°C. Features low dark current of 1 nA for high signal accuracy. Fast response with typical rise and fall times of 0.04 μs. Forward polarity with a breakdown voltage of 20 V and open circuit voltage of 365 V.

Supplied in tape and reel packaging with 2 pins for efficient PCB assembly. Compliant with JEDEC, IEC, ANSI/ESDA/JEDEC, and EIA standards.

This ams OSRAM SFH 2200 Photodiode is ideal for applications in industrial electronics, consumer electronics, photointerrupters, control and drive circuits, and remote control systems. Browse EnvMart categories for more high-quality optoelectronic components and electronics parts.
