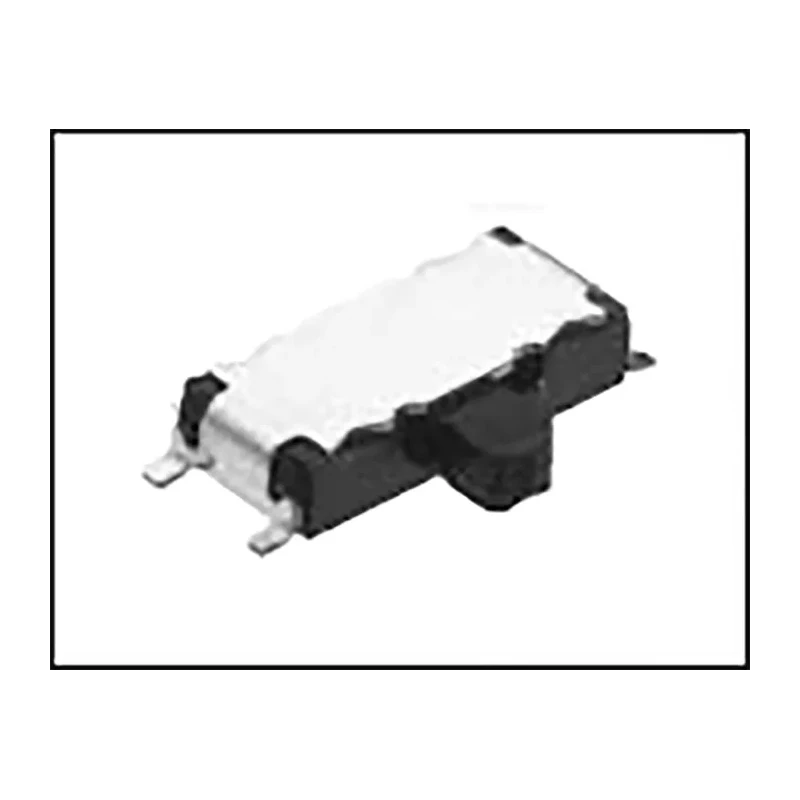

Alps Alpine Surface Mount Slide Switch SPDT Latching 5V DC Contact, 300mA Current, Compact Size SSSS811101
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Length | 6.7mm |
| Model | SSSS811101 |
| Depth | 1.9mm |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | SSSS8 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | 2 Position, 1P |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 5V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 10000Cycles |
Key Features
- Designed for compact and high-density portable devices.
- Surface mount type with snap-in installation for efficient assembly.
- SPDT switch configuration supports two positions and one pole.
- Switch operation is latching, sustaining position until changed.
- Mechanical life expectancy of 10,000 cycles ensuring durability.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Terminal type is solder suitable for PCB mounting.
- Compact housing dimensions of 6.7mm length, 4.1mm width, and 1.9mm depth.
Product Description
The Alps Alpine SSSS811101 surface mount slide switch features a single-pole double-throw (SPDT) latching design optimized for compact and high-density portable electronics. Operating at a contact current of 300mA and 5V DC contact voltage, this switch is engineered for reliable electrical performance in industrial and commercial applications.
Its surface mount type allows ease of installation with a snap-in method, reducing assembly time and maintenance downtime. The switch offers a mechanical life of 10,000 cycles, ensuring a durable and long-lasting operation cycle suitable for frequent switching needs.
The compact body dimensions of 6.7mm length, 4.1mm width, and 1.9mm depth make it ideal for space-constrained PCB designs. Its robust operating temperature range from -40°C to 85°C supports use in demanding environments, including industrial automation, instrumentation, and consumer electronics.
Key features include a 2-position, 1-pole switch configuration with latching operation, non-illuminated design, and solder terminal type for secure PCB connections. The switch also complies with RoHS environmental regulations, making it suitable for green manufacturing requirements.
Designed for compact and high-density portable devices. Surface mount type with snap-in installation for efficient assembly. SPDT switch configuration supports two positions and one pole. Switch operation is latching, sustaining position until changed.
Mechanical life expectancy of 10,000 cycles ensuring durability. Operating temperature range from -40°C to 85°C suitable for various environments. Terminal type is solder suitable for PCB mounting. Compact housing dimensions: length 6.7mm, width 4.1mm, depth 1.9mm.
Complies with RoHS standards for environmental compliance.
This switch is suitable for applications in industrial automation systems, electrical assemblies, consumer electronics, instrumentation, and other areas requiring reliable tactile switching with a compact form factor.
Explore more from the comprehensive range of Slide Switches at EnvMart for tailored industrial and commercial electronic switch solutions.
