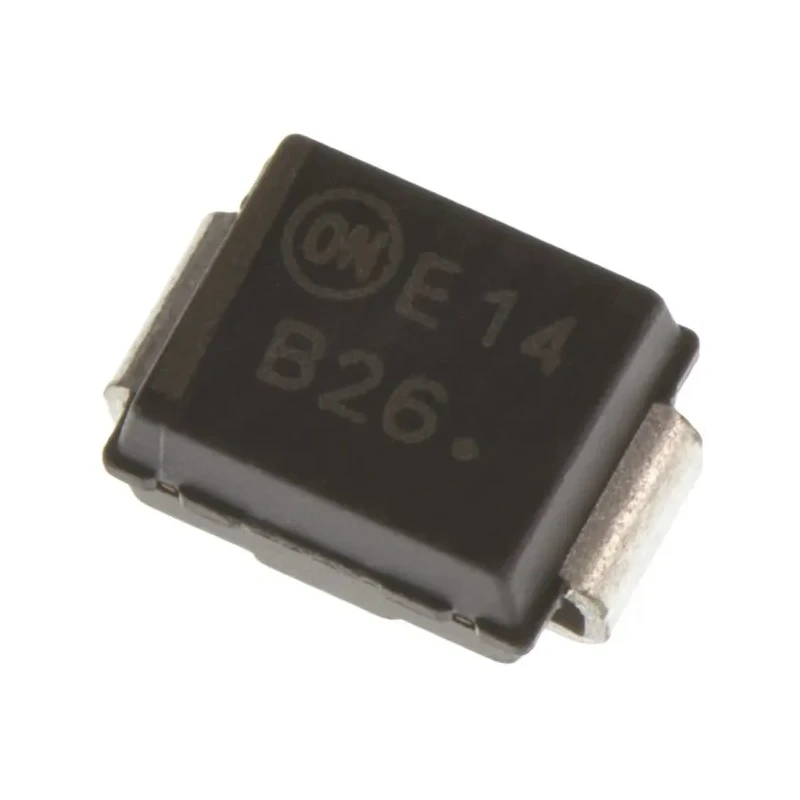

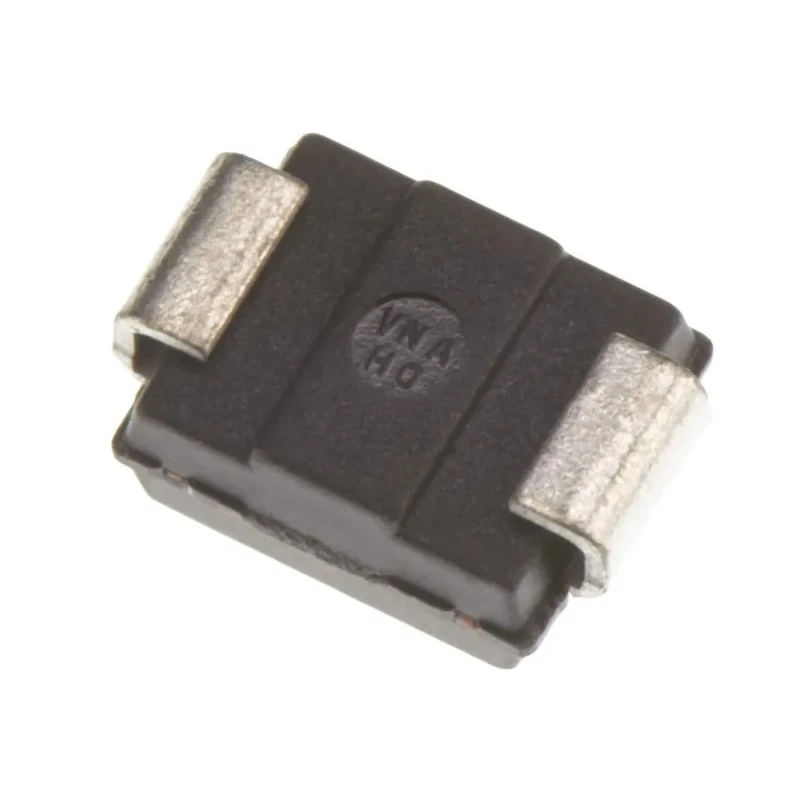

onsemi Schottky Diode 60 V 2 A Surface Mount DO-214AA Package MBRS260T3G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Diode 60 V 2 A Surface Mount DO-214AA Package MBRS260T3G

Name: onsemi Schottky Diode 60 V 2 A Surface Mount DO-214AA Package MBRS260T3G
Brand: onsemi
SKU: 138715
Price: 20.22 USD
Availability: InStock



Category Semiconductors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.13mm
Length	4.32mm
Model	MBRS260T3G
Width	3.56mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	DO-214AA
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Maximum Forward Voltage Vf	630mV

Key Features

Supports maximum continuous forward current of 2 A.
Peak reverse repetitive voltage rating of 60 V.
Maximum forward voltage drop of 630 mV ensures efficient operation.
Operates across a temperature range of -55°C to 125°C.
Compact DO-214AA package with dimensions 4.32 mm length, 3.56 mm width, and 2.13 mm height.
Designed for automotive applications meeting AEC-Q101 standard.
Features a peak non-repetitive forward surge current of 60 A.
Low peak reverse leakage current at 200 µA.

Product Description

onsemi MBRS260T3G is a high-performance Schottky barrier diode specifically designed for surface mounting in a compact DO-214AA package. This diode employs a barrier metal to achieve an optimal forward voltage drop and low reverse current, making it ideal for low voltage, high-frequency rectification tasks.

With a maximum continuous forward current of 2 A and peak repetitive reverse voltage rating of 60 V, it fits well in applications requiring efficient switching and protection. The diode operates within a broad temperature range from -55°C to 125°C, meeting rigorous automotive grade standards such as AEC-Q101 for reliability in harsh environments.

Its compact dimensions (Length: 4.32 mm, Width: 3.56 mm, Height: 2.13 mm) and lightweight epoxy moulded case enable automated assembly, making it suitable for volume production and industrial manufacturing.

Features include a peak non-repetitive forward surge current of 60 A and a low peak reverse leakage current of 200 µA, ensuring robust performance in polarity protection and freewheeling diode roles.

This Pb-Free diode is widely used in industrial, automotive, and electronic power applications where size, reliability, and efficiency are critical. Supports maximum continuous forward current of 2 A. Peak reverse repetitive voltage rating of 60 V.

Maximum forward voltage drop of 630 mV ensures efficient operation. Operates across a temperature range of -55°C to 125°C. Compact DO-214AA package with dimensions 4.32 mm length, 3.56 mm width, and 2.13 mm height. Designed for automotive applications meeting AEC-Q101 standard.

Features a peak non-repetitive forward surge current of 60 A. Low peak reverse leakage current at 200 µA. Epoxy moulded case for durability and stress protection. Pb-free and suitable for automated assembly on reels. Explore more semiconductor components and Schottky diodes on EnvMart for your industrial and automotive requirements.
