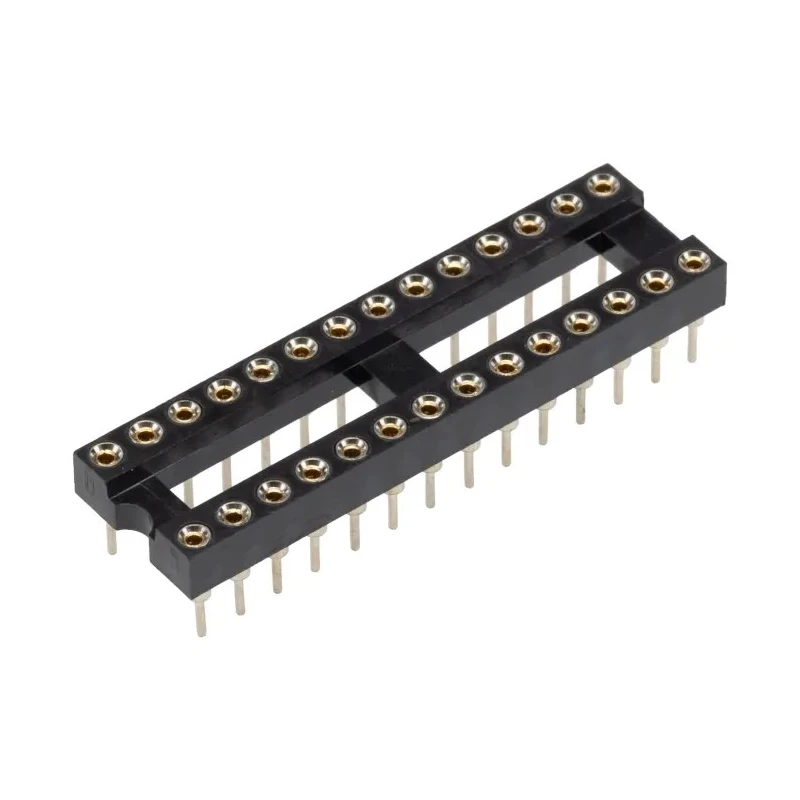

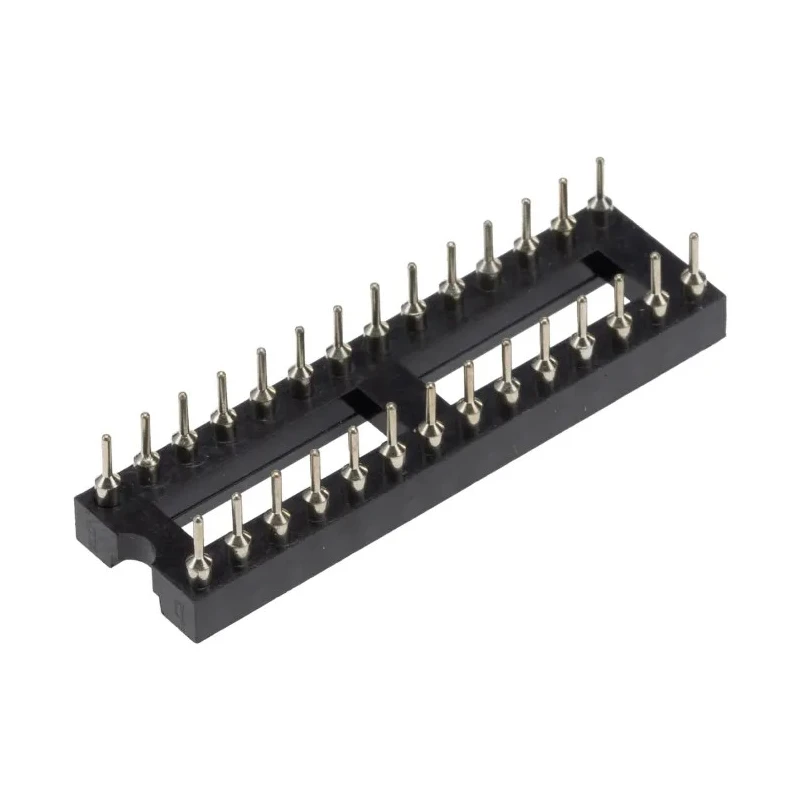

Winslow 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30528/3TRC

Winslow W30528/3TRC is a high-quality 28 way Vertical DIL Socket with a 2.54 mm pitch designed for through-hole mounting in electronic devices. This open-frame socket provides reliable, non-permanent connections using turned pins and is rated for a current of 5A. It features a robust fiberglass reinforced PBT housing suitable for industrial and laboratory applications where circuit debugging and prototype development are common.

The socket's contacts consist of a beryllium copper alloy with a 0.3μm gold plating over nickel for enhanced conductivity and corrosion resistance, combined with a tin-plated brass outer shell. This structure supports up to 1000 insertion cycles without mechanical or electrical degradation.

The socket size is compact with a length of 35.48 mm, width of 10.14 mm, and a depth of 3 mm. Its vertical orientation and open frame design make it suitable for dense PCB layouts and easy access during electronic assembly or repair. The operating temperature range from -55°C to +125°C ensures functionality across diverse environmental conditions in manufacturing, industrial, and laboratory settings.

This product is ideal for use in electronics prototyping, testing, and repair scenarios where non-permanent socket connections are necessary before final soldering. It supports designs requiring 5A current capacity and a DIP component footprint.

The socket complies with no specific standards or approvals but is engineered for durability and reliability in professional electronics applications. The socket has 28 contacts allowing connections for complex DIP circuits.

Through hole mount type and solder termination ensure secure PCB joint strength. Gold over nickel plated contacts reduce oxidation and maintain connection integrity. Beryllium copper alloy contacts provide excellent electrical and mechanical performance.

Fiberglass reinforced PBT housing ensures robust mechanical stability and insulation. Rated for a current of 5A supporting medium power electronic circuits. Supports up to 1000 insertions, enabling reusable, reliable socketing.

Operating temperature range suitable for industrial electronics from -55°C to +125°C. Compact dimensions support space-efficient PCB design layouts. Vertical orientation and open frame design facilitate easy insertion and removal of ICs during assembly and testing.
