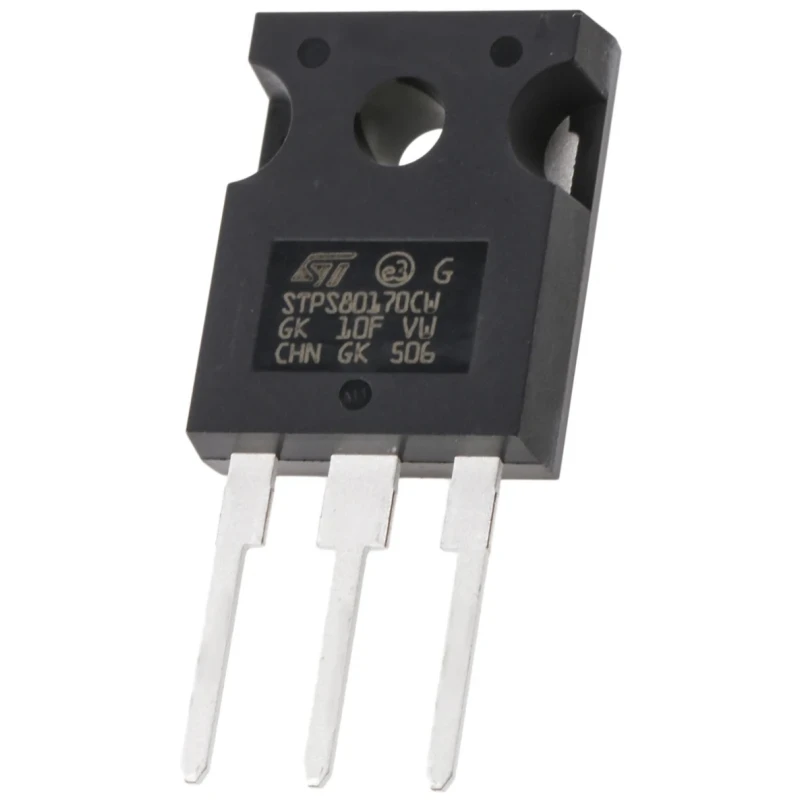

STMicroelectronics Schottky Diode 170 V 80 A TO-247 3-Pin Diode STPS80170CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STPS80170CW |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STPS80170C |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 80A |
| Peak Reverse Repetitive Voltage Vrrm | 170V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 80μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 0.68V |
| - Capacitance | 45 pF |
Key Features
- Designed as a Schottky barrier diode for high voltage applications.
- Features negligible switching losses for efficient operation.
- Built with an insulated ISOTOP package, rated for 2500 VRMS.
- Maintains low leakage current ensuring energy efficiency.
- Capacitance is low at 45 pF, supporting fast switching.
- Maximum forward voltage drop is 0.68 V to minimize power loss.
- Wide operating temperature range from -65°C to 175°C for reliability in harsh environments.
- Peak non-repetitive surge current capability of 500 A for transient tolerance.
Product Description
STMicroelectronics STPS80170CW Schottky Diode is engineered for robust performance in power electronics, offering a peak reverse repetitive voltage of 170 V and a maximum continuous forward current of 80 A. Packaged in a TO-247 insulated ISOTOP form factor with three pins, this diode is tailored for secondary rectification in high frequency switch mode power supplies.
This Schottky rectifier boasts negligible switching losses which enhance efficiency in power circuits. Its avalanche-rated design ensures resilience against voltage spikes, while the trade-off between low leakage current and forward voltage drop facilitates energy savings.
The ISOTOP insulated package provides a voltage isolation up to 2500 VRMS and a capacitance of 45 pF, ensuring reliability and minimal electrical noise in sensitive applications. The diode can operate continuously in temperatures ranging from -65°C up to 175°C, accommodating demanding industrial environments.
Key specifications include a peak non-repetitive forward surge current of 500 A and a maximum forward voltage of 0.68 V. Its compact size with dimensions of 15.75 mm length, 5.15 mm width, and 20.15 mm height suits dense PCB layouts and efficient thermal management.
This diode is ideal for use in industrial, power supply, and electronic manufacturing contexts requiring high reliability and performance. Typical applications include switch mode power supplies, secondary rectification, and power conversion systems.
Designed as a Schottky barrier diode for high voltage applications. Features negligible switching losses for efficient operation. Built with an insulated ISOTOP package, rated for 2500 VRMS. Maintains low leakage current ensuring energy efficiency.
Capacitance is low at 45 pF, supporting fast switching. Maximum forward voltage drop is 0.68 V to minimize power loss. Wide operating temperature range from -65°C to 175°C for reliability in harsh environments. Peak non-repetitive surge current capability of 500 A for transient tolerance.
Constructed with common cathode diode configuration. Compact dimensions: length 15.75 mm, width 5.15 mm, height 20.15 mm. Explore more in the Schottky Diodes & Rectifiers category on EnvMart for high-quality semiconductor components suited to diverse industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage rating of this model is 170 V.
This Schottky diode can handle a maximum continuous forward current of 80 A.
It is packaged in a TO-247 form factor, which is designed for through-hole mounting.
The maximum forward voltage drop is 0.68 V, which helps minimize power loss.
It operates within a wide temperature range from -65°C to 175°C, making it suitable for harsh environments.
The diode has a peak non-repetitive forward surge current capability of 500 A.
The peak reverse current is 80 μA, indicating low leakage current for energy efficiency.
The capacitance is low at 45 pF, which supports fast switching applications.
It is constructed with a common cathode diode configuration.
The dimensions are 15.75 mm in length, 5.15 mm in width, and 20.15 mm in height.
This model is typically used in switch mode power supplies, secondary rectification, and power conversion systems.
The country of origin for this model is India.
