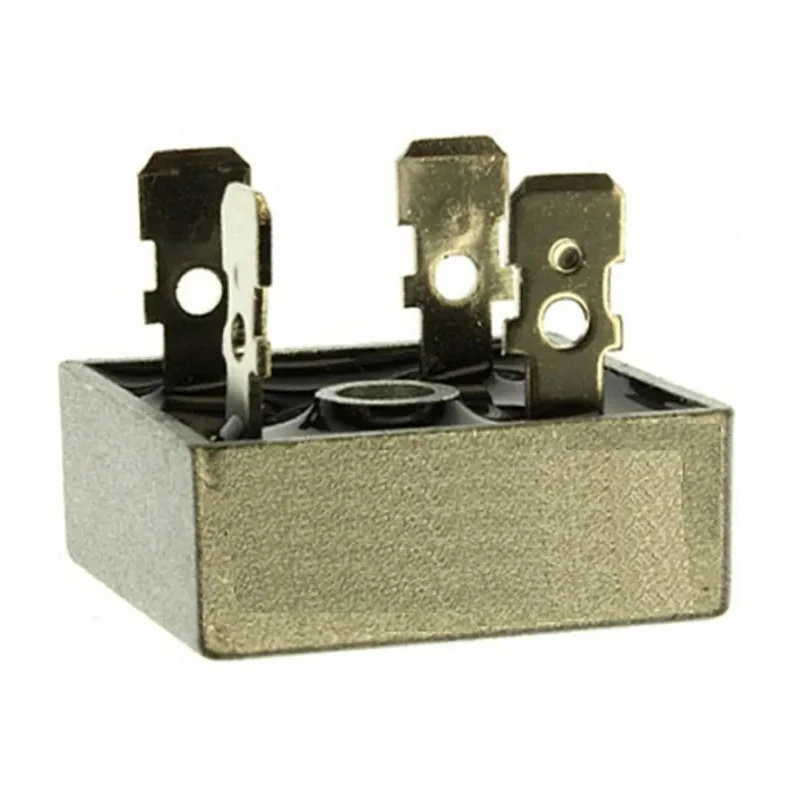

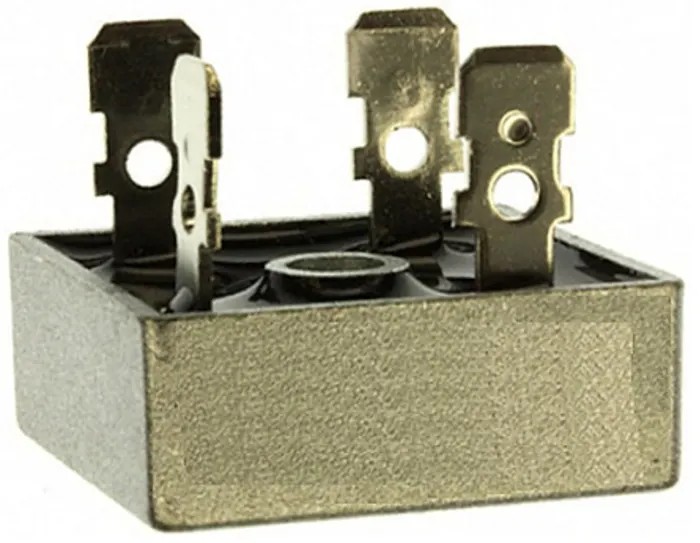

HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single KBPC1510

Free Delivery in India | Lowest Global Shipping Charges

HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single KBPC1510

Name: HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single KBPC1510
Brand: HY Electronic Corp
SKU: 136677
Price: 4.88 USD
Availability: InStock



Category Bridge Rectifier Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Material	U/L recognition
Height	11.23mm
Length	28.8mm
Model	KBPC1510
Width	28.8mm
Mount Type	Through Hole
Series	KBPC1
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V
Surge overload	-240 A to 500 A peaks

Key Features

Through hole mount type with KBPC package ensures easy integration.
Supports maximum forward current of 15 A and peak non-repetitive surge current of 300 A.
Operates within a temperature range of -55°C to 150°C for versatile applications.
Physically compact with dimensions 28.8 mm length, 28.8 mm width, and 11.23 mm height.
Equipped with 4 pins and single phase configuration for efficient circuit design.
Features a peak forward voltage of 1.1 V and peak reverse current of 10 μA.
Material recognized with U/L standards ensuring quality and durability.
Suitable for industrial, electronic, and power supply applications requiring robust semiconductor components.

Product Description

HY Electronic Corp KBPC1510 Bridge Rectifier is a high-performance silicon Bridge Rectifier designed for AC to DC conversion applications in electronic circuits. With a peak reverse voltage of 1000 V and a forward current rating of 15 A, it supports demanding power needs while maintaining efficient performance.

This device features a 4-pin, through hole KBPC package and operates reliably across temperatures from -55°C up to 150°C. The rectifier includes surge overload capabilities up to 300 A, suitable for handling peak transient currents without damage.

Designed with a low forward voltage drop of 1.1 V and minimal reverse leakage current (10 μA), it ensures energy-efficient operation with low thermal losses. Its compact dimensions of 28.8 mm length, 28.8 mm width, and 11.23 mm height make it suitable for integration into printed circuit boards with space constraints.

Material compliance with U/L recognition underlines the safety and reliability of this component in industrial use. Through hole mount with KBPC package facilitates straightforward installation. High surge overload capacity for transient current management.

Robust performance in varied temperature environments ensures versatile application. Low forward voltage drop reduces power dissipation and enhances efficiency. Minimal peak reverse current for improved electrical stability.

Compact form factor for use in electronic and power supply manufacturing. Suitable for industrial, laboratory, HVAC, and electronic power conversion systems. Provides durable and reliable long-term operation in electronic assemblies.
