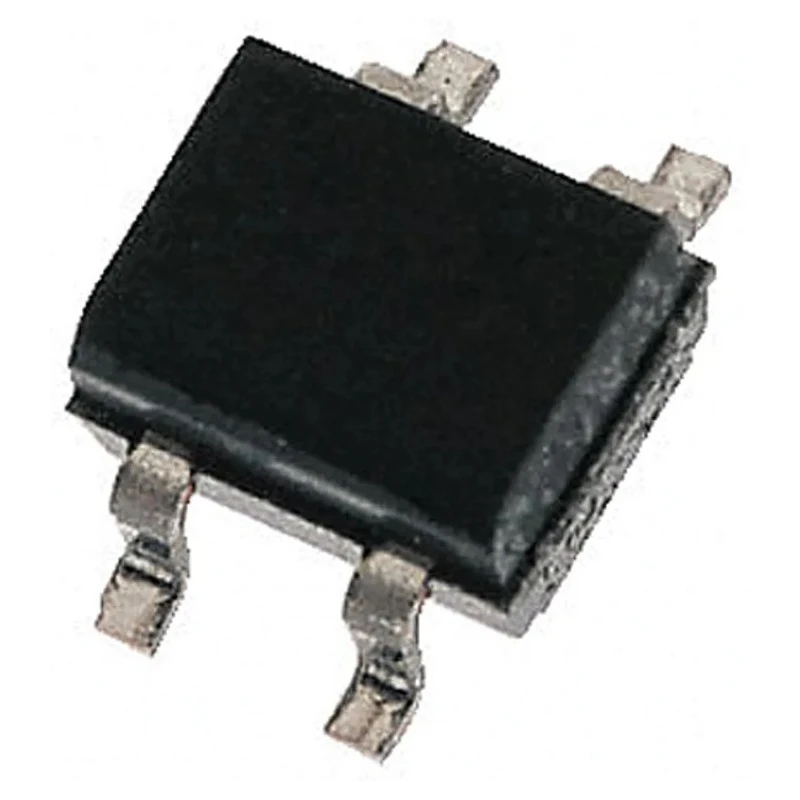

HY Electronic Corp Bridge Rectifier Surface Mount 1000 V 30 A 4-Pin DBS Package DB107S

Free Delivery in India | Lowest Global Shipping Charges

HY Electronic Corp Bridge Rectifier Surface Mount 1000 V 30 A 4-Pin DBS Package DB107S

Name: HY Electronic Corp Bridge Rectifier Surface Mount 1000 V 30 A 4-Pin DBS Package DB107S
Brand: HY Electronic Corp
SKU: 136673
Price: 0.18 USD
Availability: InStock



Category Bridge Rectifier Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Height	3.4mm
Length	8.8mm
Model	DB107S
Width	6.5mm
Mount Type	Surface
Plastic Material	UL94V-0 flammability classification
Series	DBS
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DBS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q101
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	1A
Peak Forward Voltage Vf	1.1V
PRV	1000 V

Key Features

Rated for 1000 V peak reverse voltage suitable for robust power rectification.
Forward current rating of 1 A for continuous operation.
Compact DBS surface mount package with 4 pins for easy PCB integration.
Operates reliably in temperatures from -55°C up to 150°C.
Low forward voltage drop of 1.1 V ensures efficient conduction.
Peak forward surge current rating of 30 A for transient load tolerance.
Glass passivated construction enhances durability and longevity.
UL94V-0 rated plastic material for high flame retardant properties.

Product Description

HY Electronic Corp DB107S Bridge Rectifier is a surface mount semiconductor device designed for efficient AC to DC power conversion. With a peak reverse repetitive voltage (PRV) of 1000 V and a forward current of 1 A, this 4-pin DBS package bridge rectifier supports reliable and robust operation in electronic circuits.

This rectifier features a glass passivated junction that ensures stable performance and increased lifespan. It is capable of handling a peak non-repetitive forward surge current of 30 A, which provides resilience against transient surges.

The device operates across a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive applications that require high thermal tolerance. Its low forward voltage drop of 1.1 V enhances efficiency by minimizing power loss during conduction.

Constructed with plastic material classified under UL94V-0 for flame resistance, the DB107S provides safety and durability in electronic assemblies. Its compact dimensions (8.8 mm length, 6.5 mm width, 3.4 mm height) and surface mount design facilitate easy integration into printed circuit boards, optimizing space and assembly time.

Compliant with the automotive standard AEC-Q101, this bridge rectifier is suitable for automotive electronics, industrial electronics, power supplies, and other commercial electronic applications that demand high reliability and robustness.

Rated 1000 V peak reverse voltage for tough electrical environments. 1 A forward current rating appropriate for moderate power circuits. 4-pin DBS surface mount package for space-efficient PCB design. Operational temperature range from -55°C to 150°C for harsh environments.

Peak forward surge current of 30 A to withstand transient load conditions. Glass passivated for improved longevity and reliability. UL94V-0 flame retardant plastic housing ensuring safety. AEC-Q101 compliance for automotive-grade quality.

Measures 8.8 mm length, 6.5 mm width, and 3.4 mm height.

This product is ideal for industrial, automotive, laboratory, and manufacturing electronic applications requiring durable and efficient diode bridge rectification. The DB107S bridge rectifier supports efficient power conversion and thermal stability, making it a dependable component for designing high-quality electronic circuits.

Explore more semiconductor components and Bridge Rectifiers on EnvMart to find solutions tailored to various industrial and commercial requirements.
