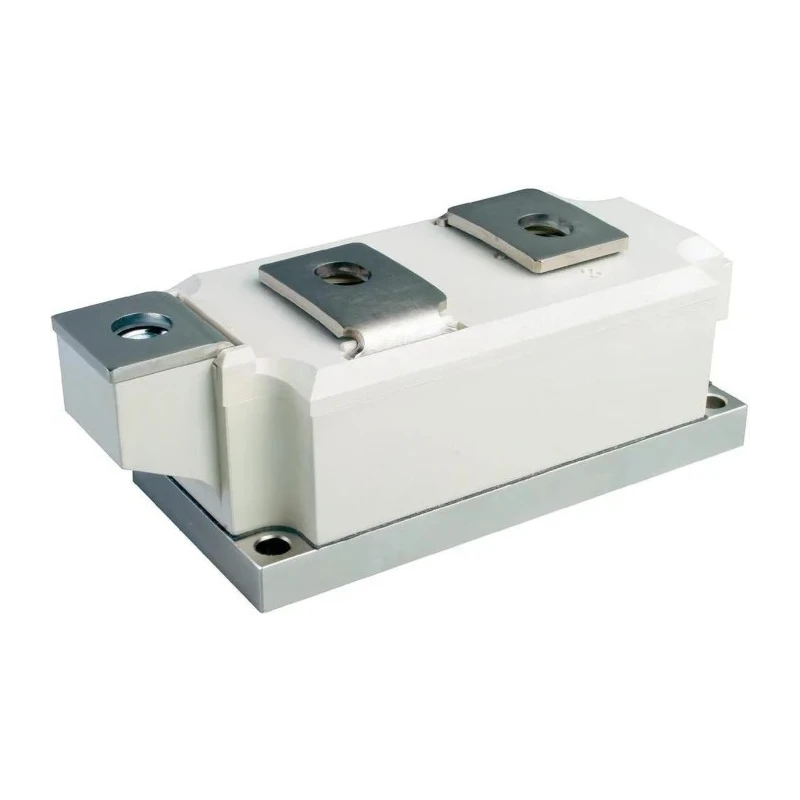

Semikron Danfoss Dual Thyristor Module 1600 V 1.5 kA 570 A 150 mA 1.65 V 7-Pin SKKT 570/16 E

Semikron Danfoss SKKT 570/16 E is a high-performance dual Thyristor Module designed for robust industrial and electronic applications requiring reliable switching and control. This module is rated for a repetitive peak reverse voltage of 1600 V and features a surge current rating of 1.5 kA, making it suitable for demanding power electronics scenarios.

The device is encapsulated with an electrically isolated base plate, facilitating safe operation and ease of mounting on panels. It supports a maximum operating temperature of 125°C, ensuring stability and longevity in harsh environments.

Its gate characteristics include a maximum gate trigger current of 150 mA and a holding current of 250 mA, delivering accurate switching performance for controlling current flow in power circuits. The 7-pin configuration enables secure and versatile electrical connections.

Compact with dimensions of 93 mm length, 20 mm width, and 30 mm height, the SKKT 570/16 E module integrates efficiently into power supplies, battery chargers, welders, temperature controls, and speed control equipment. Its peak on-state voltage of 1.65 V reduces power losses, enhancing energy efficiency.

Dual thyristor design for controlled switching applications. 7-pin panel mount package for secure installation and heat dissipation. Maximum gate trigger current of 150 mA and holding current of 250 mA. Repetitive peak reverse voltage of 1600 V ensuring high voltage tolerance.

Surge current rating of 1.5 kA for handling transient loads. Operating temperature capability up to 125°C for demanding environments. Compact size for integration into industrial electronic assemblies. Isolated base plate design for safe operation and thermal management.

The SKKT 570/16 E module is engineered to deliver reliable performance in industrial, manufacturing, power electronics, and electronic component applications. It supports critical functions in systems such as battery chargers, welding machines, and regulated power supplies.

With Slovakia as its country of origin, this new condition module aligns with industry standards but is not specified with automotive certification. It is a vital component within the semiconductor category, ideal for professionals requiring high-current control devices.
