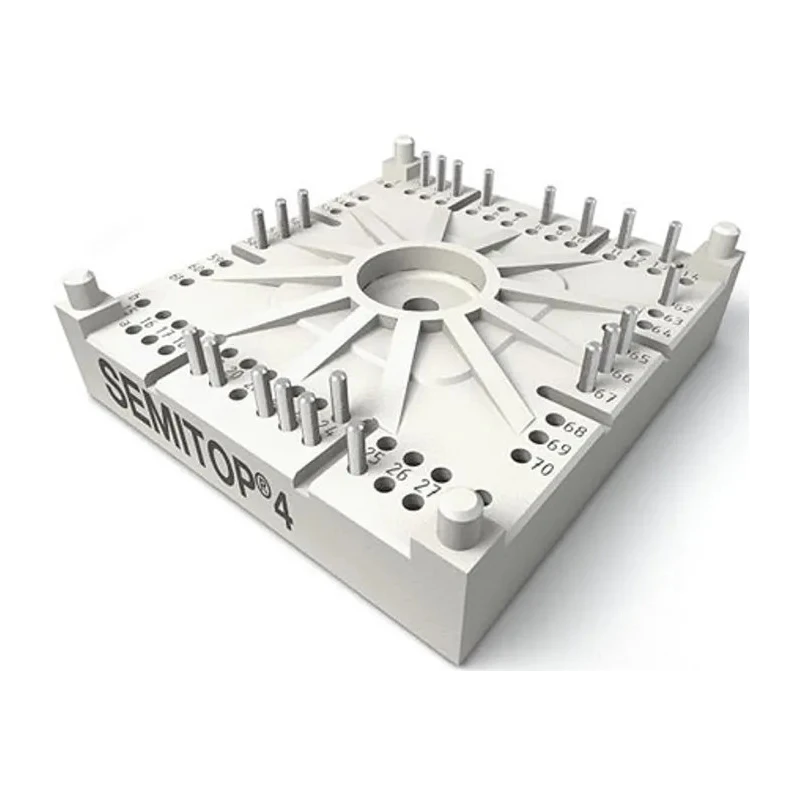

Semikron Danfoss N-Channel IGBT Module 150 A 1200 V 70-Pin SEMITOP4 Surface Mount SK 150 MLI 066 T

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss N-Channel IGBT Module 150 A 1200 V 70-Pin SEMITOP4 Surface Mount SK 150 MLI 066 T

Name: Semikron Danfoss N-Channel IGBT Module 150 A 1200 V 70-Pin SEMITOP4 Surface Mount SK 150 MLI 066 T
Brand: Semikron Danfoss
SKU: 136120
Price: 248.24 USD
Availability: InStock



Category IGBT Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Italy
Brand	Semikron Danfoss
Height	15.08mm
Length	55mm
Model	SK 150 MLI 066 T
Width	60.25mm
Mount Type	Surface
Series	MLI-T
Maximum Operating Temperature	175°C
Package Type	SEMITOP4
Minimum Operating Temperature	-40°C
Standards/Approvals	IEC 60747-1, UL
Pin Count	70
Maximum Continuous Collector Current Ic	150A
Maximum Collector Emitter Voltage Vceo	1200V
Maximum Collector Emitter Saturation Voltage VceSAT	2.05V
Channel Type	N
Maximum Power Dissipation Pd	78W
Maximum Gate Emitter Voltage VGEO	20 V

Key Features

This SEMITOP4 surface mount module features 70 pins for reliable connection.
Maximum power dissipation of 78 watts enables handling of substantial load.
Module supports operating temperatures from -40°C up to 175°C for flexible applications.
The compact dimensions are 55 mm length, 60.25 mm width, and 15.08 mm height.
Maximum gate emitter voltage rating is 20 volts ensuring safe drive conditions.
Collector emitter saturation voltage is a low 2.05 volts for efficient switching.
Complies with IEC 60747-1 and UL standards, assuring industrial quality.
Designed as a quad IGBT module suitable for 3-level topology in power inverters and UPS systems.

Product Description

Semikron Danfoss SK 150 MLI 066 T N-Channel IGBT Module is a high-performance power semiconductor device engineered for industrial, manufacturing, and power electronics applications. Rated at 150 A continuous collector current and 1200 V maximum collector emitter voltage, this module offers efficient and fast switching performance.

The SEMITOP4 package type with surface mounting and 70-pin configuration supports compact PCB designs while ensuring excellent heat dissipation. Made in Italy, it conforms to IEC 60747-1 and UL standards, guaranteeing robustness and reliability for demanding environments.

Operating temperature range from -40°C to 175°C and maximum power dissipation of 78 W enable use in automotive power electronics, 3-level DC-AC inverters, uninterruptible power supplies (UPS), and industrial motor drives. The low collector emitter saturation voltage of 2.05 V contributes to improved energy efficiency and thermal management.

This quad IGBT module utilizes trench IGBT technology to facilitate advanced power control and switching. The 70-pin SEMITOP4 surface mount design allows for easy installation on compact PCBs. Robust operational limits ensure suitability for HVAC systems, manufacturing equipment, and renewable energy inverters.

Its compact dimensions of 55 mm by 60.25 mm by 15.08 mm optimize space without compromising performance. The module supports high-frequency operations with safe gate voltage up to 20 V. Designed for demanding industrial and laboratory power conversion applications.

Standard compliant and manufactured with quality assurance in Italy. Explore more IGBT Modules and power semiconductor components in the Semikron Danfoss product range at EnvMart for reliable industrial electronics solutions.
