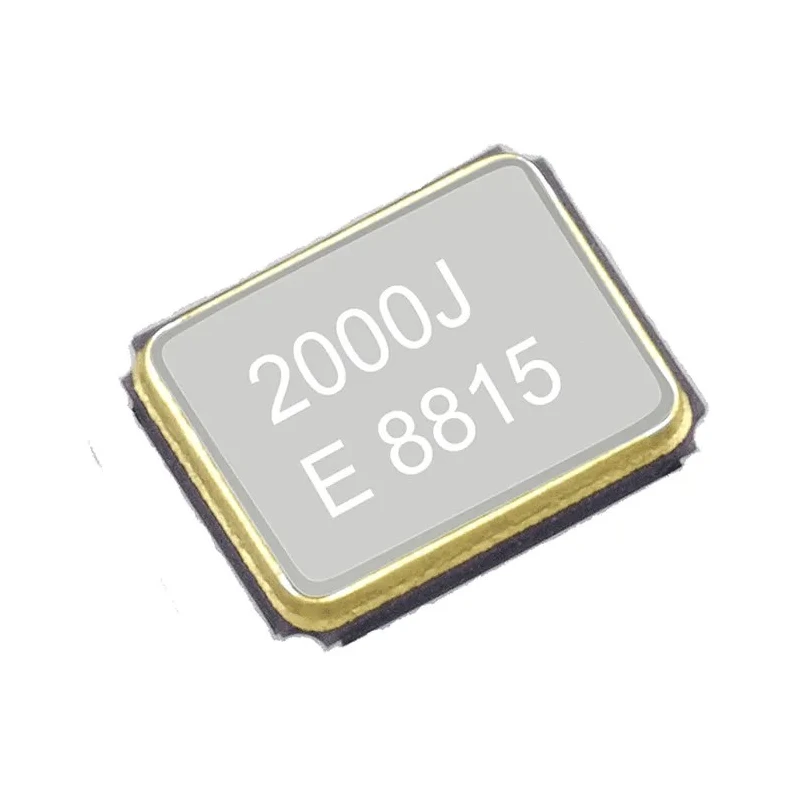

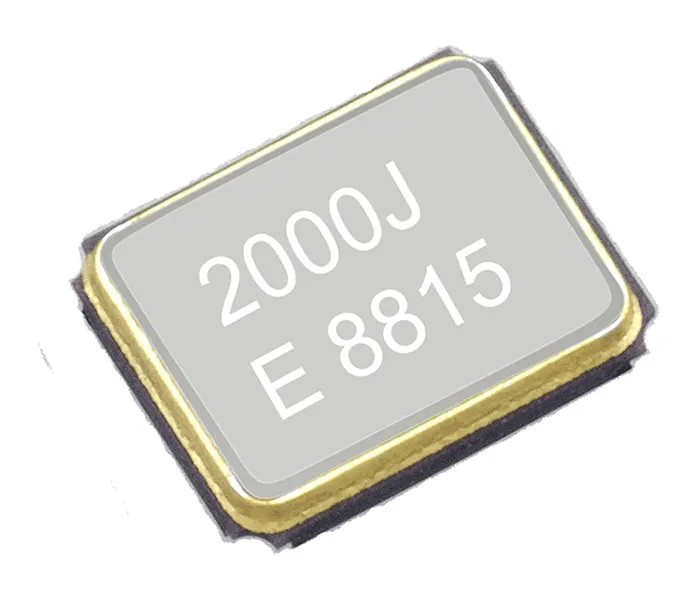

Epson 27.12 MHz Crystal Unit ±10 ppm 40Ω 4-Pin Surface Mount TSX-3225 3.2x2.5x0.6 mm X1E000021080512

Name: Epson 27.12 MHz Crystal Unit ±10 ppm 40Ω 4-Pin Surface Mount TSX-3225 3.2x2.5x0.6 mm X1E000021080512
Brand: Epson
SKU: 136080
Price: 1.87 USD
Availability: InStock



Category Crystal Units Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 48 MHz
Brand	Epson
Height	0.6mm
Length	3.2mm
Model	X1E000021080512
Width	2.5mm
Mount Type	Surface
Series	TSX3225
Maximum Operating Temperature	85°C
Package Type	TSX-3225
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU
External Dimensions	3.2 x 2.5 x 0.6 mm
Standards/Approvals	REACH, RoHS
Pin Count	4
Standard Frequency	27.12MHz
Load Capacitance	9pF
Series Resistance	40Ω
Overtone order	Fundamental

Key Features

Standard frequency of 27.12 MHz with ±10 ppm frequency tolerance.
Features a 4-pin surface mount package with TSX-3225 type dimensions.
Compact external size of 3.2 mm length, 2.5 mm width, and 0.6 mm height.
Load capacitance of 9 pF ensures stable oscillation performance.
Series resistance rated at 40 Ω for reliable operation.
Operating temperature range from -40°C to 85°C supports industrial environments.
Complies with REACH and RoHS environmental standards.
Fundamental overtone order for precise frequency control.

Product Description

Epson X1E000021080512 Crystal Unit is a high precision surface mount device operating at a standard frequency of 27.12 MHz with ±10 ppm frequency tolerance. Designed in a compact TSX-3225 package with dimensions 3.2 mm by 2.5 mm and a low profile height of 0.6 mm, it offers excellent performance for various industrial and commercial electronics applications.

This crystal unit features a load capacitance of 9 pF and series resistance of 40 Ω, ensuring stable and accurate oscillation suitable for timing and frequency control.

Operating across a broad temperature range from -40°C up to 85°C, it is engineered to cope with challenging environmental conditions. The product complies with important environmental standards including REACH and RoHS, affirming its quality and reliability for industrial uses.

The TSX3225 series crystal units utilize a fundamental overtone order that enhances frequency stability and precision, making them ideal for applications in mobile phones, Bluetooth communication, WLAN ISM band radios, and as clocks for microprocessor units.

The ceramic case construction provides durability and low profile mounting on printed circuit boards, optimizing space and integration efficiency in electronic device assemblies. Standard frequency of 27.12 MHz with ±10 ppm tolerance guarantees precision timing.

Compact TSX-3225 4-pin surface mount package with 3.2 x 2.5 x 0.6 mm dimensions. Load capacitance of 9 pF and series resistance of 40 Ω ensure operational stability. Wide operating temperature range accommodates diverse industrial environments.

Compliant with REACH and RoHS standards for environmental safety. Suitable for use in mobile, wireless, and computing electronic applications.

Environmentally compliant and constructed to exacting industrial standards, this Epson crystal unit is a reliable component for precise frequency control in modern electronics manufacturing. Ideal for engineers and designers seeking a dependable surface mount crystal solution.
