Tedea Huntleigh Models 615 Series S Type Load Cell, 50 kg to 300 kg Capacity, Tension and Compression 0615-0300-G000-RS

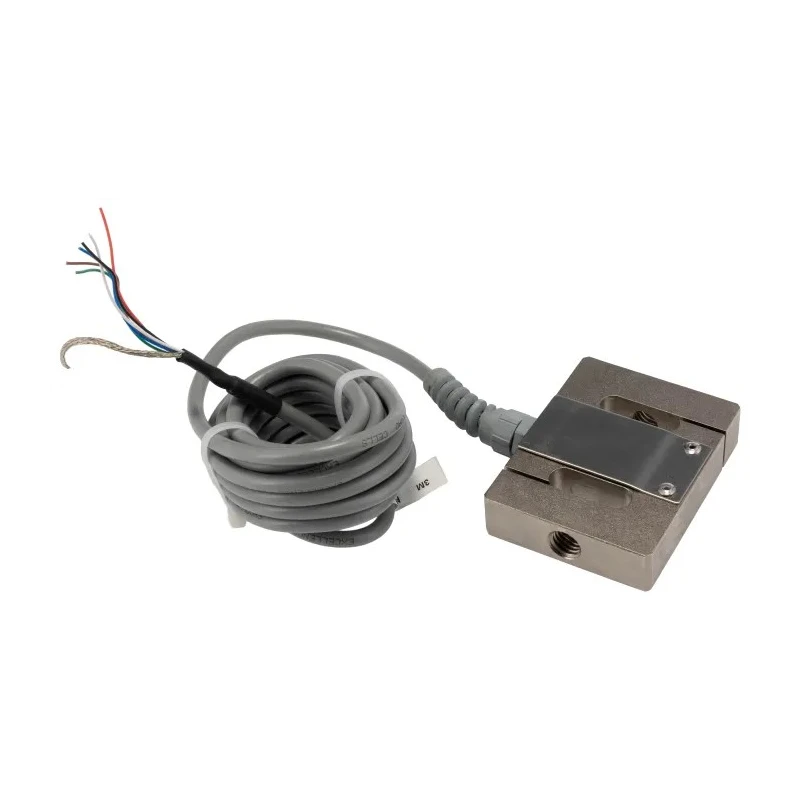

Tedea Huntleigh 0615-0300-G000-RS Models 615 Series S Type Load Cell offers reliable and accurate measurement of tensile and compressive forces with a capacity ranging from 50 kg minimum to 300 kg maximum. Built for industrial and laboratory applications requiring precision force measurement, this load cell combines rugged nickel plated steel housing with an IP67 rating, providing superior protection against dust and water, suitable for harsh environments.

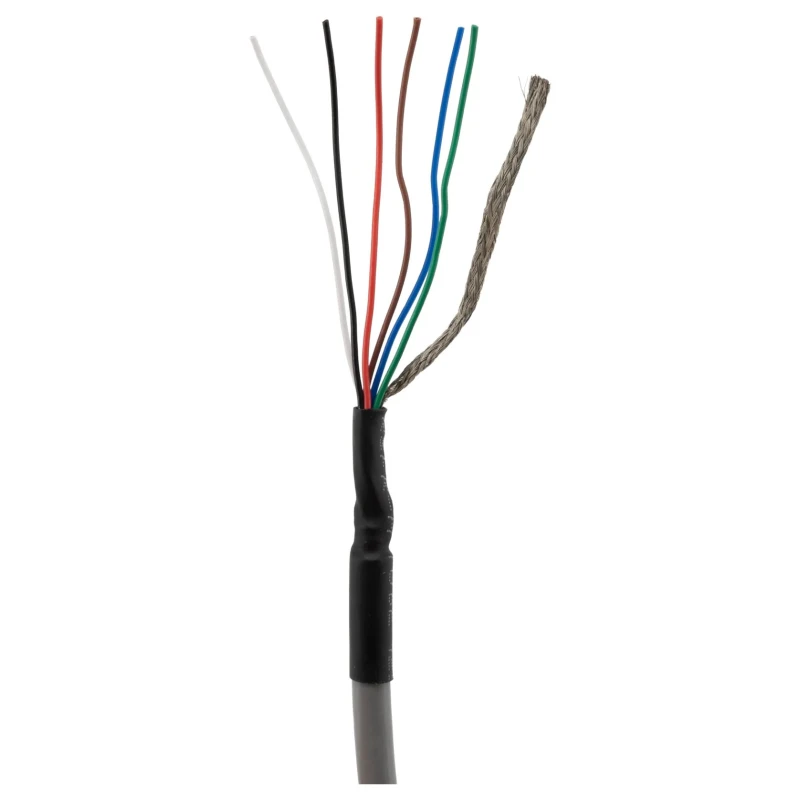

The sensor features a six-wire sense circuit to offset errors caused by changes in lead resistance due to temperature variations or cable extension, enhancing measurement accuracy. Its operating temperature range from -10°C to 40°C accommodates most industrial settings while maintaining performance stability. Its compact form factor with dimensions of 62 mm width, 80 mm length, and 26 mm depth allows for integration into diverse mechanical assemblies and testing machines.

The load cell's safe overload is rated at 150% and the ultimate overload at 300%, ensuring safety and durability against accidental excessive forces. Electrical characteristics include an output impedance of 350Ω and an input impedance of 400 ±20Ω with a maximum allowable DC voltage of 15V, supporting connectivity to standard signal conditioning devices. This load cell is ideal for force measurement, material testing machines, conversion of mechanical scales to electronic readouts, hanging scales, and hopper weighing applications.

Supports force measurement from 50 kg minimum to 300 kg maximum capacity. Suitable for use in tension and compression applications. Rated IP67 for protection against dust and water ingress. Constructed with durable nickel plated steel housing for longevity.

Operates within temperature range of -10°C to 40°C ensuring reliability. Includes 6-wire (sense) circuit to compensate for cable resistance changes. Safe overload capability up to 150% of rated capacity. Ultimate overload up to 300% of rated capacity for durability under stress.

Output impedance of 350Ω and input impedance of 400 ±20Ω. Compact dimensions of 62 mm width, 80 mm length, and 26 mm depth.

This Tedea Huntleigh Load Cell is perfectly suited for industrial automation, electrical and mechanical testing, laboratory instrumentation, and manufacturing quality control where accurate load measurement is crucial. Compatible bridge signal conditioners and output signal conditioners are available separately.
