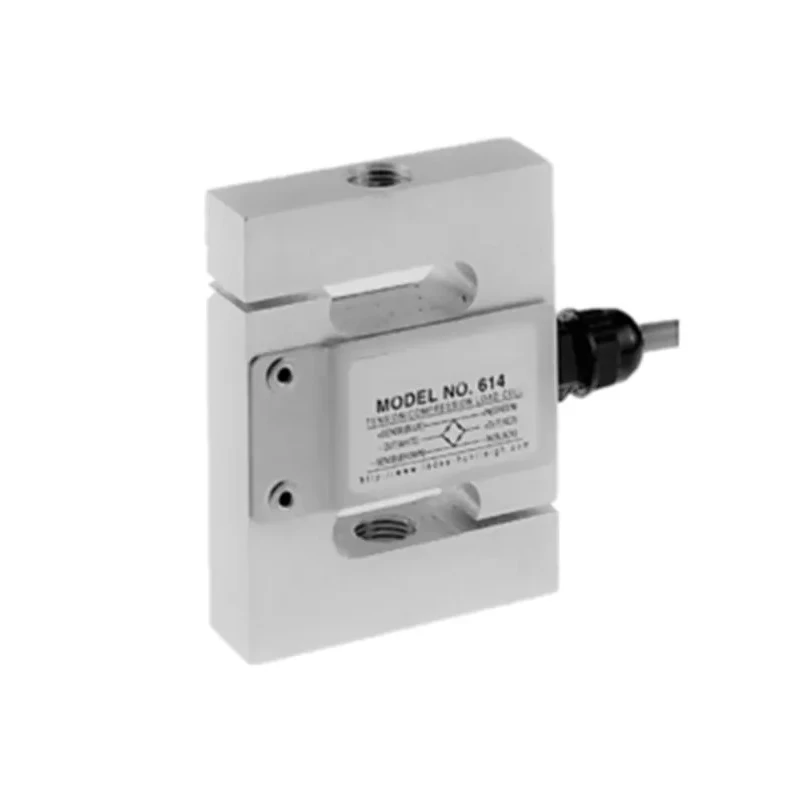

Tedea Huntleigh Aluminium IP67 Tension-Compression Load Cell Model 614 Series 50 kg to 500 kg 00614-050K-G0-03X

Tedea Huntleigh 00614-050K-G0-03X model 614 Series load cell is a high-performance aluminium tension-compression sensor designed for precise force measurement in demanding industrial and laboratory applications.

This load cell features an IP67 rating ensuring dust-tight and water-resistant operation, making it suitable for harsh environments. The anodized aluminium housing provides mechanical strength while maintaining lightness for ease of installation.

Its 6-wire sense circuit compensates for temperature changes and cable extension effects, maintaining measurement accuracy over a wide temperature range from -30°C to 70°C. The load cell measures compression forces ranging from 50 kg minimum to 500 kg maximum, making it ideal for diverse mechanical testing, hopper weighing, belt scale systems, and dynamometers.

Equipped with shielded cables and humidity-resistant coating, this sensor preserves performance in humid and electrically noisy environments. Rated maximum voltage is 15 V both AC and DC, conforming to rigorous industry standards including OIML R60 and RoHS compliance.

Typical applications include lever arm conversions, hanging scales, force measurement, material testing machines, and vibration filling equipment, serving industrial automation, manufacturing, laboratory, and quality control sectors.

Measures compression force from 50 kg to 500 kg accurately. Constructed from anodized aluminium for durability and corrosion resistance. Equipped with shielded cable and humidity resistant coating. Includes 6-wire sense circuit compensating temperature-induced resistance changes.

Ideal for lever conversions, hanging scales, and force measurement applications. Rated for operation between -30°C and 70°C. Complies with OIML R60 standards and RoHS directives. Dimensions: 80 mm length, 18 mm width, and 18 mm depth.

Maximum AC and DC voltage: 15 V. Suitable for industrial, laboratory, and automation environments.

Choose the Tedea Huntleigh model 614 Series load cell for reliable and accurate force measurement in your industrial automation and testing solutions. Browse further industrial sensors and Load Cells in the EnvMart catalogue for more options.
