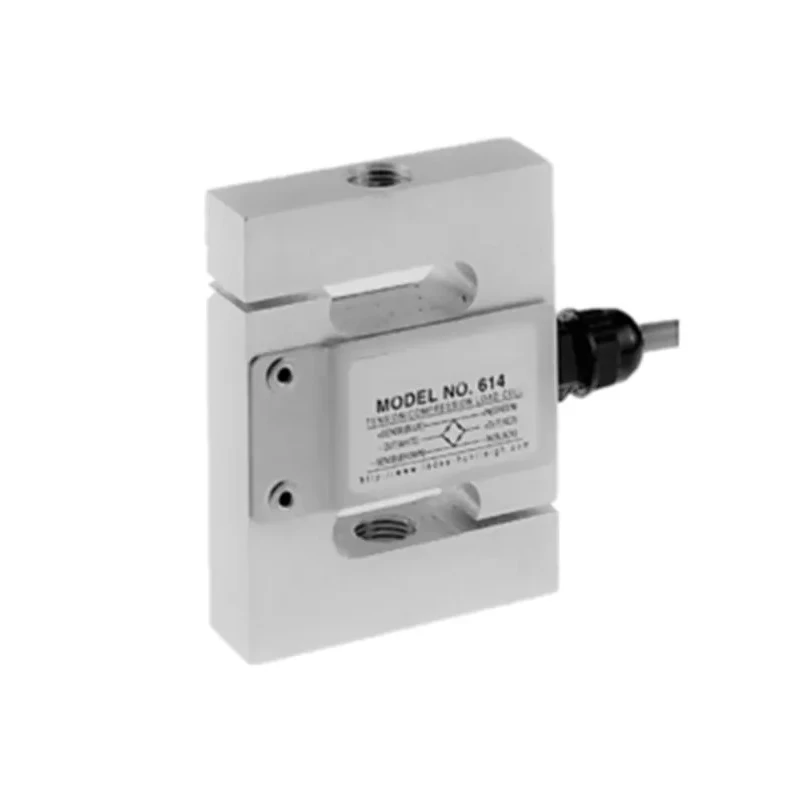

Tedea Huntleigh Aluminium Load Cell, Model , 50-500 kg Capacity, IP67 Rated, Cable Terminal, Model 614 00614-050K-C3-01X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 80mm |
| Model | 00614-050K-C3-01X |
| Depth | 18mm |
| IP Rating | IP67 |
| Sensor Type | Load Cell |
| Width | 18mm |
| Housing Material | Aluminium |
| Series | Model 614 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | OIML R60, RoHS Compliant |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 500kg |
| Minimum Force/Load Measurement | 50kg |
Key Features
- Constructed from anodized aluminium for robustness and lightweight properties.
- Equipped with a cable terminal and features an IP67 rating for ingress protection.
- Supports force measurement in compression with a sensing range of 50 to 500 kg.
- Designed for use in harsh industrial environments with humidity resistant coating.
- Includes six-wire circuit with sense wires for compensation of lead resistance changes.
- Ideal for lever conversions, hanging scales, material testing, and load monitoring.
- Operates safely between -30°C and 70°C temperature range.
- Complies with OIML R60 standard and RoHS requirements.
Product Description
Tedea Huntleigh 00614-050K-C3-01X Model 614 Series Load Cell is designed for accurate compression force measurement, suitable for industrial and laboratory applications requiring load precision up to 500 kg. The load cell features robust anodized aluminium housing, providing durability while maintaining a lightweight form factor. It is engineered with a humidity-resistant coating and shielded cable terminals to maintain performance in harsh environments.
This load cell supports a six-wire sensing circuit which compensates for lead resistance fluctuations due to temperature changes or cable extension, ensuring high measurement reliability. The IP67 ingress protection rating certifies resistance against dust and water, making it suitable for demanding industrial settings.
Typical uses of the Model 614 load cell include hopper and tank weighing, hybrid scale instrumentation, belt weighing, lever arm conversions, dynamometers, and vibration filling systems. It is capable of force measurements in compression mode within a 50 kg minimum and 500 kg maximum range.
The device operates within a temperature range of -30°C to 70°C and meets international standards such as OIML R60 and RoHS compliance. Its dimensions of 80 mm length, 18 mm width, and 18 mm depth allow integration into various weighing systems and material testing setups.
Constructed from anodized aluminium for robustness and lightweight properties. Cable terminal type with humidity resistant coating and shielded cables. IP67 rated for dust and water ingress protection. Six-wire circuit with sense wires for temperature and cable extension compensation.
Force range from 50 to 500 kg in compression mode. Operating temperature range from -30°C to 70°C for diverse environments. Complies with OIML R60 and RoHS standards. Dimensions: 80 mm length, 18 mm width, 18 mm depth.
This load cell excels in a range of industrial applications including hopper weighing, lever conversions, and dynamometer use, ensuring reliability and precision in weight and force measurements. It is an essential component in manufacturing, agricultural, laboratory, and commercial weighing systems.
For further options and detailed configurations, browse our Load Cell catalog and related sensor technologies at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this load cell is 500 kg, with a minimum load capacity of 50 kg.
It operates safely within a temperature range of -30°C to 70°C.
This load cell supports force measurement in compression mode.
It has an IP67 rating, which certifies its resistance against dust and water ingress.
The load cell has dimensions of 80 mm in length, 18 mm in width, and 18 mm in depth.
It is constructed from anodized aluminium, providing both robustness and lightweight properties.
This model features a cable terminal type.
Yes, it complies with the OIML R60 standard and RoHS requirements.
It includes a six-wire circuit with sense wires for compensation of lead resistance changes.
The maximum DC voltage for this load cell is 15V.
The weight of this load cell is not specified in the provided information.
