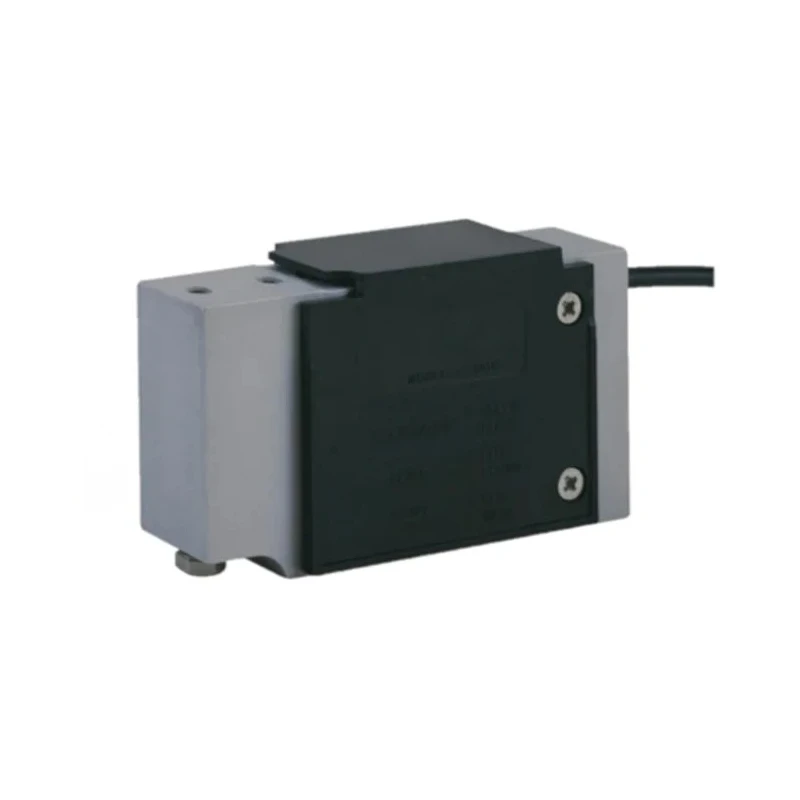

Tedea Huntleigh Model 1015 Series Single-Point Aluminium Load Cell 3kg to 50kg Compression Measurement 01015-050K-G0-52X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 66mm |
| Model | 01015-050K-G0-52X |
| Depth | 33.5mm |
| IP Rating | IP65 |
| Width | 33.5mm |
| Housing Material | Aluminium |
| Series | Model 1015 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | FM approval available, NTEP, RoH, OIML |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 50kg |
| Minimum Force/Load Measurement | 3kg |
Key Features
- This load cell features an IP65 rated aluminium housing for durability and environmental resistance.
- Capable of operation within temperature ranges from -20°C to 70°C.
- Designed as a single-point load cell suitable for platforms up to 400 x 400 mm.
- Equipped with cable terminals and built-in overload protection for mechanical safety.
- Supports a maximum DC voltage of 15 V for operation.
- Includes additional sense wires for compensating lead resistance changes due to temperature or cable extension.
- Highly suitable for use in bench scales, counting scales, and grocery scales.
- Complies with multiple standards including FM approval, NTEP, RoH, and OIML.
Product Description
Tedea Huntleigh 01015-050K-G0-52X Model 1015 Series Single-Point Aluminium Load Cell provides accurate compression force measurement from a minimum of 3 kg up to a maximum of 50 kg. It is designed for direct mounting on low-cost weighing platforms and is ideal for various industrial, laboratory, and commercial applications involving weight measurement.
The load cell features a robust aluminium housing with IP65 rating, providing excellent protection against dust and water ingress. It operates reliably across a wide temperature range from -20°C to 70°C. The compact dimensions of 66 mm length, 33.5 mm width, and 33.5 mm depth allow for easy integration into weighing equipment.
This Model 1015 series load cell includes built-in overload stops to mechanically protect the sensor from damage due to excessive force. The cable terminal type interface facilitates straightforward electrical connections, with added sense wires ensuring compensation for voltage changes caused by cable length or temperature fluctuations. These features ensure consistent, high accuracy results across diverse operating conditions.
Common industrial applications include bench scales, counting scales, and grocery scales where precise weight measurements are critical. Its sturdy construction and compliance with FM approval, NTEP, RoH, and OIML certifications affirm its suitability for demanding environments and regulatory requirements.
This load cell is a single-point, low capacity type with aluminium construction ensuring durability. Capacities range from 3 kg to 90 kg, with this specific model rated for 3 kg minimum and 50 kg maximum load. Ideal for use in weighing platforms up to 400 x 400 mm.
Enhanced reliability is ensured by a special humidity resistant protective coating option. Suitable for precise force measurement compression applications in industrial, laboratory, and commercial use cases. Includes standard compliance certifications enhancing trust and usability across global markets.
Explore more load cells and weighing sensors in the Electronics & Electricals > Sensors > Load Cell category on EnvMart to find suitable solutions for your measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This load cell has a minimum load measurement of 3 kg and a maximum load measurement of 50 kg.
It operates reliably within a temperature range of -20°C to 70°C.
The dimensions of this load cell are 66 mm in length, 33.5 mm in width, and 33.5 mm in depth.
It is designed for compression force measurement.
The load cell features an IP65 rated aluminium housing, providing protection against dust and water ingress.
It uses a cable terminal type interface for electrical connections.
It complies with FM approval, NTEP, RoH, and OIML standards.
The maximum DC voltage supported is 15 V.
It is highly suitable for use in bench scales, counting scales, and grocery scales.
Yes, it includes built-in overload stops to protect the sensor from damage due to excessive force.
It includes additional sense wires for compensating lead resistance changes due to temperature or cable extension.
The country of origin for this load cell is India.
