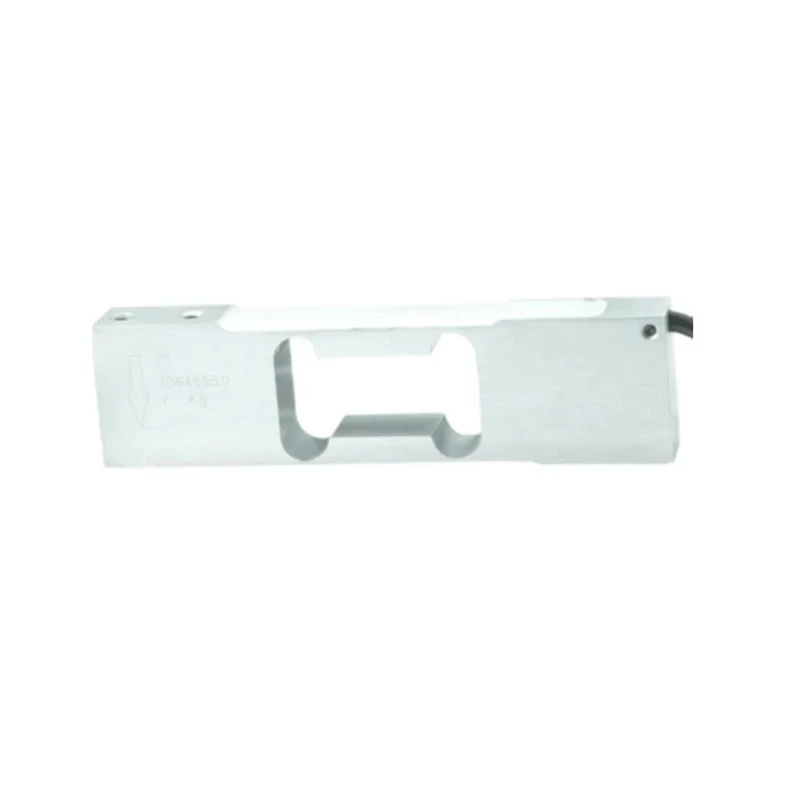

Tedea Huntleigh Low Profile Aluminium Load Cell Model , Compression, 1 kg Min to 200 kg Max, IP66, Cable 01042-200K-C3-05X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 40mm |
| Model | 01042-200K-C3-05X |
| Depth | 25.4mm |
| IP Rating | IP66 |
| Sensor Type | Low Profile |
| Width | 25.4mm |
| Mount Type | Hole |
| Housing Material | Aluminium |
| Series | Model 1042 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | ATEX, OIML R60, IECEX, FM, NTEP, RoHS Compliant |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 200kg |
| Minimum Force/Load Measurement | 1kg |
Key Features
- Constructed with durable anodized aluminium housing for stability and longevity.
- Low profile single-point sensor suitable for mounting on weighing platforms up to 400 x 400 mm.
- Cable terminal type with hole mount ensures secure and reliable installation.
- Wide operating temperature range from -30°C to 70°C for diverse industrial environments.
- Designed with additional sense wires for lead resistance compensation enhancing accuracy.
- Compliant with international standards such as ATEX, OIML R60, IECEX, FM, NTEP, and RoHS.
- Ideal for bench scales, counting scales, grocery scales, and other precise weighing applications.
Product Description
Tedea Huntleigh 01042-200K-C3-05X is a high precision low profile load cell designed for compression force measurement applications ranging from 1 kg to 200 kg. Its compact aluminium construction coupled with an IP66 rating ensures robustness and excellent protection against harsh industrial environments.
This load cell is intended for direct mounting in weighing platforms with dimensions up to 400 x 400 mm. The cable terminal with hole mounting facilitates secure integration and installation. The device features two additional sense wires to compensate for temperature-induced changes in lead resistance and cable extension, maintaining high measurement accuracy and stability.
The load cell operates reliably within a temperature range of -30°C to 70°C, making it suitable for a wide variety of industrial, laboratory, and commercial weighing uses. An anodized aluminium housing provides protection and long-term stability over the compensated temperature range, ensuring dependable performance.
Certified to global standards including ATEX, OIML R60, IECEX, FM, NTEP, and RoHS, this load cell meets stringent industrial and safety requirements. It is ideal for applications such as bench scales, counting scales, grocery scales, and other retail or manufacturing weighing needs where precision and durability are critical.
Constructed with durable anodized aluminium housing for stability and longevity. Low profile single-point sensor suitable for mounting on weighing platforms up to 400 x 400 mm. Cable terminal type with hole mount ensures secure and reliable installation.
Wide operating temperature range from -30°C to 70°C for diverse industrial environments. Designed with additional sense wires for lead resistance compensation enhancing accuracy. Compliant with international standards such as ATEX, OIML R60, IECEX, FM, NTEP, and RoHS.
Ideal for bench scales, counting scales, grocery scales, and other precise weighing applications.
This product fits within the scope of electrical and automation sectors, suitable for use in industrial plants, laboratories, and commercial weighing systems. Explore more sensors and Load Cells in the EnvMart catalog for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This load cell measures compression forces from 1 kg to 200 kg.
The load cell has a length of 40 mm, a width of 25.4 mm, and a depth of 25.4 mm.
It has an IP66 rating, indicating it is protected against dust and water ingress.
The load cell operates within a temperature range of -30°C to 70°C.
It requires hole mounting for installation.
It is constructed with anodized aluminium housing for stability and longevity.
It is compliant with ATEX, OIML R60, IECEX, FM, NTEP, and RoHS standards.
This model features a low profile single-point sensor suitable for specific applications.
The maximum DC voltage for this load cell is 15V.
It is ideal for bench scales, counting scales, grocery scales, and other precise weighing applications.
Yes, it includes additional sense wires for lead resistance compensation, enhancing measurement accuracy.
The maximum AC voltage for this load cell is 15V.
