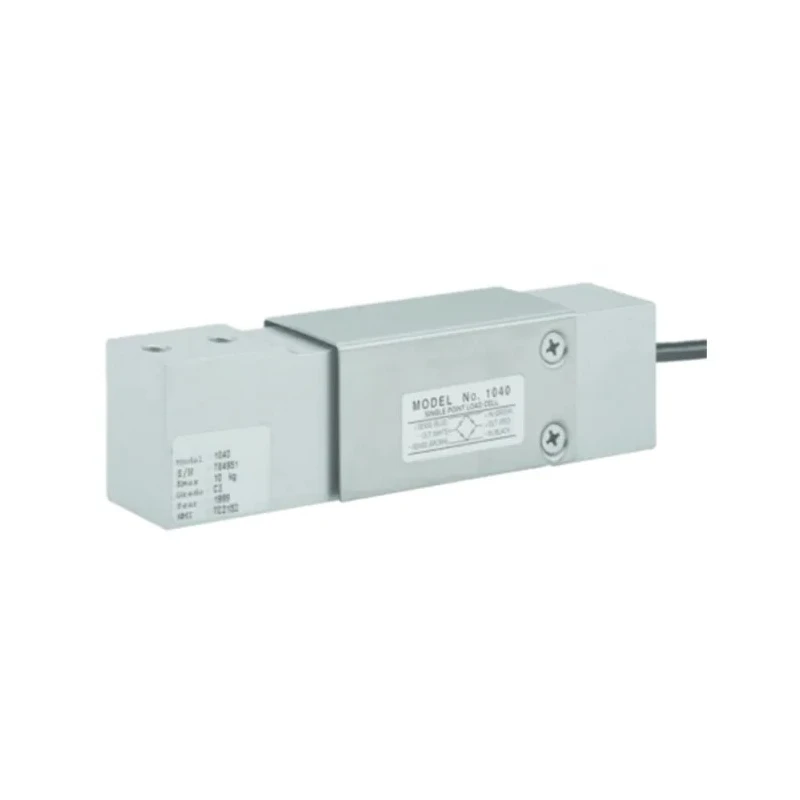

Tedea Huntleigh Low Profile Aluminium Load Cell 5kg to 50kg Compression Measurement Model 01040-050K-C3-54X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 40mm |
| Model | 01040-050K-C3-54X |
| Depth | 29.5mm |
| IP Rating | IP67 |
| Sensor Type | Low Profile |
| Width | 29.5mm |
| Housing Material | Aluminium |
| Series | Model 1040 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | NTEP, RoHS Compliant, OIML R60 |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 50kg |
| Minimum Force/Load Measurement | 5kg |
Key Features
- Constructed from anodized aluminium for durability and corrosion resistance.
- Designed for low profile single-point weighing platforms with dimensions 40mm length by 29.5mm width and depth.
- Features IP67-rated protection making it suitable for harsh environments.
- Equipped with cable terminals and additional sense wires for temperature compensation and accurate readings.
- Capable of operating within temperature range of -20°C to 70°C for diverse industrial conditions.
- Complies with standards including NTEP, RoHS, and OIML R60 ensuring quality and reliability.
- Ideal for retail, bench, grocery, and counting scale applications requiring precise force measurement.
Product Description
The Tedea Huntleigh 01040-050K-C3-54X is a Model 1040 series low profile aluminium load cell designed for precision compression force measurement within 5 kg to 50 kg capacity. With a compact size of 40mm length and 29.5mm width and depth, this single-point load cell is optimized for direct mounting on low-cost weighing platforms, making it ideal for retail, bench, counting, and grocery scales.
Its aluminium housing provides excellent sturdiness while maintaining lightweight characteristics. The load cell features cable terminals and additional sense wires that allow complete compensation for changes in lead resistance due to temperature variations or cable extension, ensuring high accuracy of force measurement.
Rated with an IP67 ingress protection, the device withstands dust and water ingress, suitable for industrial and laboratory conditions. It operates reliably between -20°C and 70°C, enhancing its versatility in multiple environments.
Certified against NTEP, RoHS compliant, and conforming to OIML R60 standards, the load cell meets stringent quality and safety requirements. Constructed from anodized aluminium housing for durability. Low profile design enables easy integration in compact weighing applications.
Accurate measurement within force range of 5 kg to 50 kg compression. IP67 rating ensures protection against dust and water immersion. Sense wires provide temperature compensation for precise readings. Wide operating temperature range from -20°C to 70°C.
Compliant with international measurement standards for reliable results.
This Load Cell serves industries including manufacturing, warehousing, retail scales, and laboratory testing where accurate weight and force measurement is critical. Its design supports construction of robust weighing systems with high repeatability and minimal drift.
Explore the full range of sensors and strain gauges at EnvMart for your automation and control gear needs.
