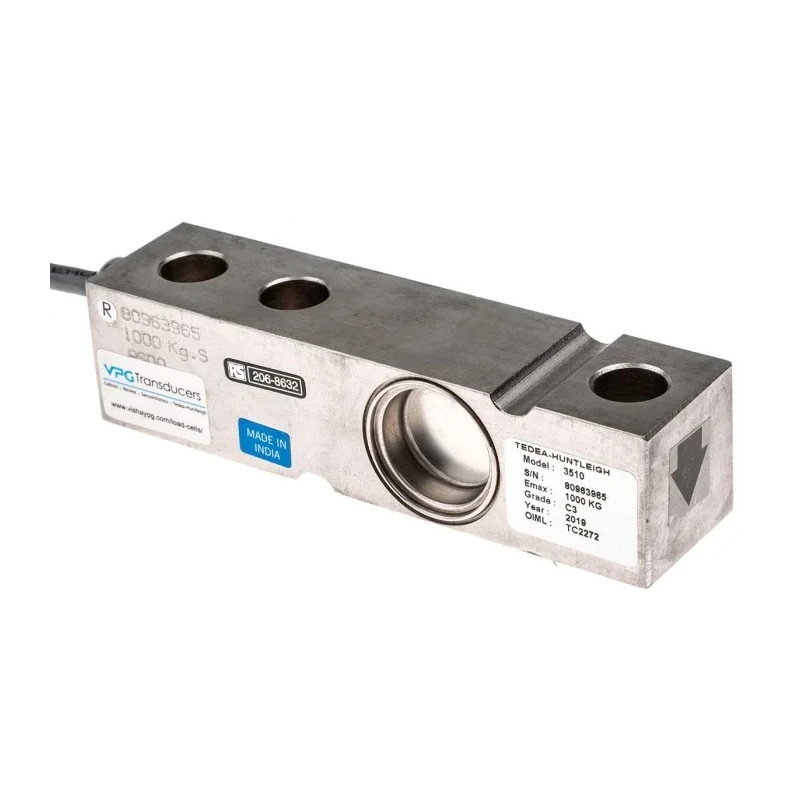

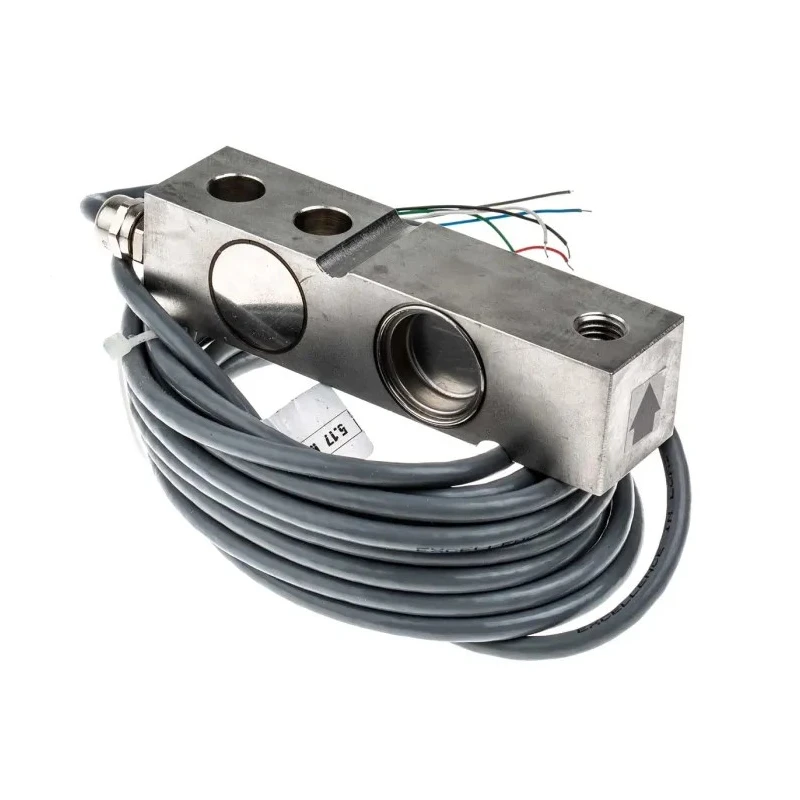

Tedea Huntleigh 3510 Series Low Profile Load Cell Compression Force Measurement 300 kg to 1000 kg MODEL3510-1000-C2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 32mm |
| Model | MODEL3510-1000-C2 |
| Depth | 32mm |
| IP Rating | IP68 |
| Sensor Type | Low Profile |
| Width | 32mm |
| Mount Type | Through Hole, Hole, Threaded |
| Housing Material | Stainless Steel |
| Series | 3510 |
| Termination Type | Cable |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Terminal type | Wire |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | OIML R60, NTEP |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 1000kg |
| Minimum Force/Load Measurement | 300kg |
| Ultimate Overload | 300% of Rated Load |
Key Features
- Constructed from stainless steel with a welded, rugged low profile design.
- Sealed to IP68 for reliable use in harsh and wet industrial environments.

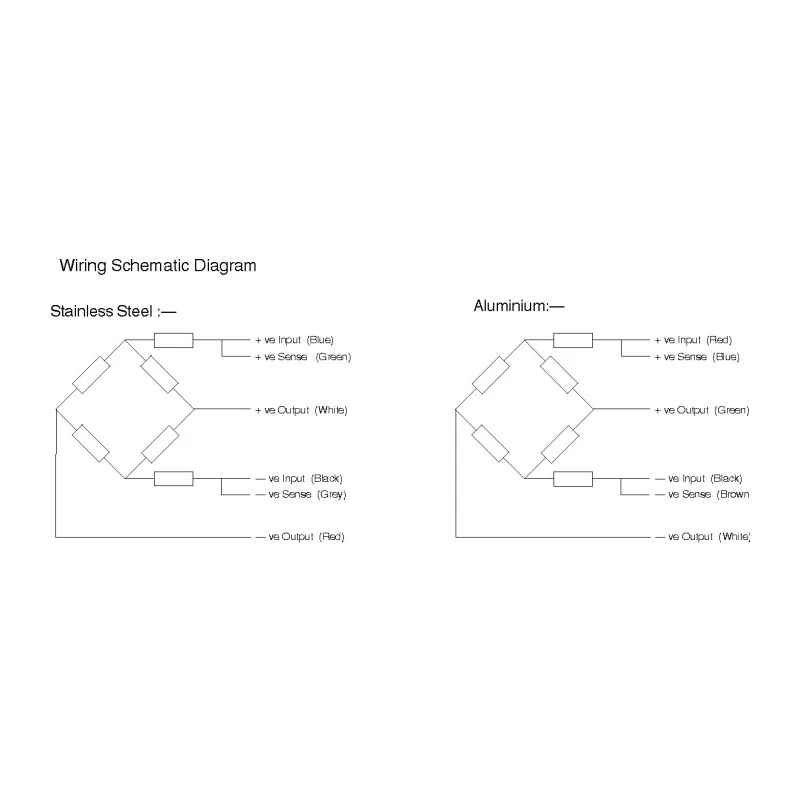

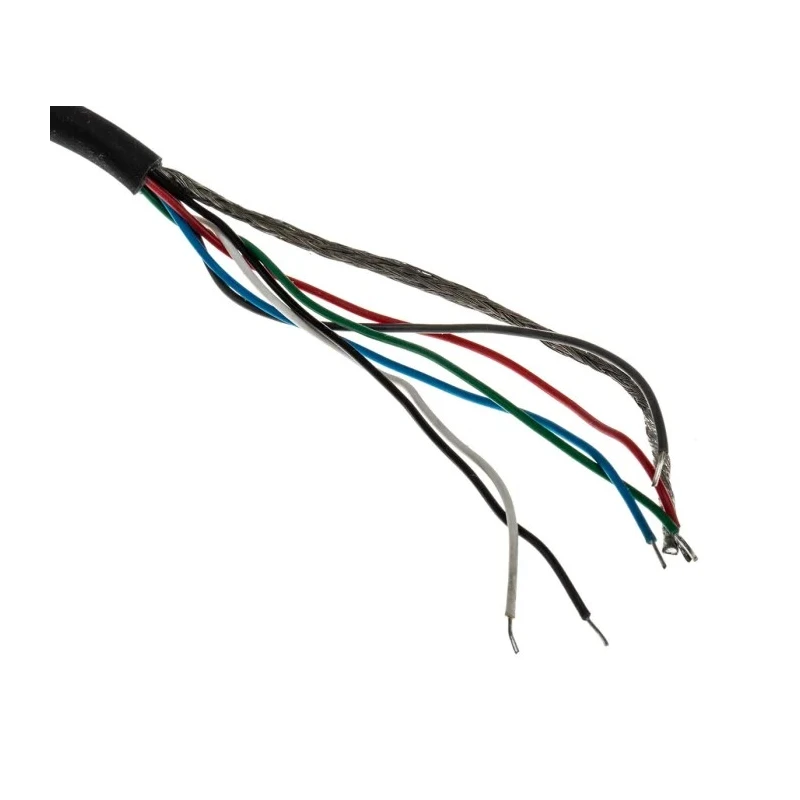

- Equipped with a 5-meter 6-core shielded cable for secure electrical connection.
- Suitable for applications such as pallet weighing, hopper, and tank weighing systems.
- Operates within a temperature range of -10°C to 40°C.
- Termination type is cable with wire terminals and supports 15V AC/DC maximum voltage.
- Features an output impedance of 350 ohms ±3 ohms for stable signals.
- Ultimate overload resistance is 300% of the rated load, ensuring durability.
Product Description
Tedea Huntleigh MODEL3510-1000-C2 is a robust low profile load cell specifically engineered for compression force measurement ranging from 300 kg up to 1000 kg. Manufactured from stainless steel and featuring a shear beam design, this load cell ensures precise and reliable operation in demanding industrial environments.
The unit's welded construction and IP68 sealing provide excellent resistance to dust and water ingress, making it ideal for harsh applications such as pallet weighers, hoppers, and tank weighing systems commonly found in industrial, manufacturing, and material handling sectors.
Operating within a temperature range of -10 to 40 degrees Celsius, the load cell maintains performance stability across various working conditions. It utilizes a 5-meter 6-core shielded cable and wire termination type optimized for secure electrical connections with rated maximum voltages of 15V AC and DC.
With a compact footprint of 32 mm by 32 mm by 32 mm, this sensor can be integrated where space constraints exist without sacrificing accuracy. The output impedance is precisely 350 ohms with a tolerance of plus or minus 3 ohms to ensure measurement fidelity. Rated for ultimate overload up to 300% of its load capacity, the product offers durability and safety in overload scenarios.
Rugged stainless steel shear beam design for durability. IP68 rated sealing for protection against harsh environmental conditions. 5-meter shielded cable for stable and secure signal transmission. Compliant with international standards OIML R60 and NTEP.
Ideal for pallet weighers, hopper, and tank weighing systems. Compact dimensions enable easy integration in tight spaces. Operates reliably between -10 to 40°C temperature range. Termination with wire type cable for flexible installation.
Supports maximum system voltage of 15V AC/DC.
This load cell suits industrial automation, material handling, process control, and weighing applications requiring high accuracy and environmental protection. Users benefit from its rugged build quality and compliance with recognized global standards.
Explore other precise load measurement solutions in the Electronics & Electricals Sensors Load Cell category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This load cell measures compression forces ranging from 300 kg to 1000 kg.
The load cell has compact dimensions of 32 mm x 32 mm x 32 mm.
It operates reliably within a temperature range of -10°C to 40°C.
The output impedance is 350 ohms ±3 ohms, ensuring stable signal transmission.
It comes equipped with a 5-meter 6-core shielded cable for secure electrical connection.
The load cell can withstand an ultimate overload of up to 300% of its rated load.
It is constructed from stainless steel, enhancing its durability in industrial applications.
The termination type is cable with wire terminals, allowing for flexible installation.
It complies with international standards OIML R60 and NTEP, ensuring reliability in measurements.
It is suitable for applications such as pallet weighing, hopper, and tank weighing systems.
This model can be mounted using through hole, hole, or threaded methods.
