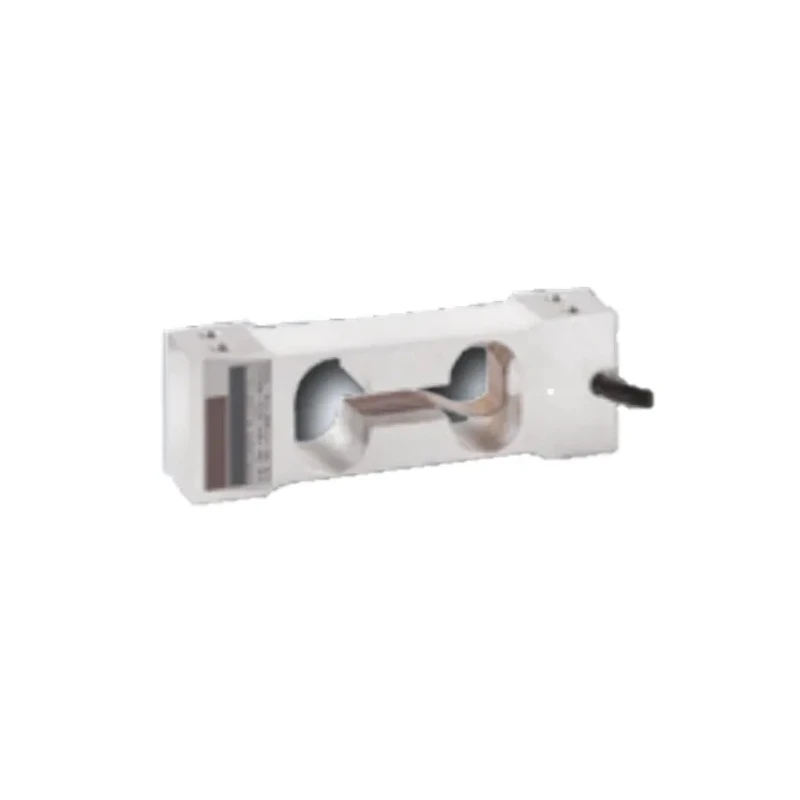

Tedea Huntleigh Model 1006 Series Single-Point Load Cell 2-5 kg Capacity Compression Force Measurement 01006-003K-G0-54X

Tedea Huntleigh 01006-003K-G0-54X Model 1006 Series single-point load cell offers a highly precise, low capacity measurement solution designed primarily for compression force applications between 2 and 5 kilograms. Featuring a compact aluminium housing measuring 22mm in length, 15mm in width, and 15mm in depth, this load cell is engineered for easy integration into low capacity weighing scales such as postal scales, counting scales, and general-purpose industrial weighing equipment.

Its 415Ω gauge resistance and cable terminal interface provide reliable strain gauge sensing for accurate force measurement. The load cell supports a maximum DC and AC voltage of 15 volts, ensuring stable electrical performance under varied operating conditions. Rated IP66, it is dust-tight and protected against strong water jets, making it suitable for harsh industrial environments.

This model operates within a broad temperature range from -20°C to 70°C, enabling usage in diverse settings including industrial process control and specialized medical devices. Its design accommodates loading where force is applied within 100mm of the vertical axis, ensuring versatile application.

Constructed with environmentally compliant aluminium and RoHS certification, the Model 1006 load cell combines durability with high accuracy. Typical applications include bench scales, grocery scales, and other precise weight measurement systems requiring consistent compression force readings within the 2 to 5 kg range.

Constructed with aluminium housing providing robust durability and corrosion resistance. High precision single-point load sensor suitable for postal, counting, and general weighing scales. Features a gauge resistance of 415 ohms ensuring accurate strain measurement.

IP66 rated for protection against dust and water ingress, ideal for industrial environments. Operates safely within a temperature range of -20°C to 70°C for versatile application. Terminal type is cable-based for flexible connectivity in installations.

Compact dimensions of 22mm length, 15mm width, and 15mm depth for easy integration. Maximum DC and AC voltage ratings of 15 V allowing reliable electrical performance. Complies with RoHS standards ensuring environmental safety and regulatory compliance.

Ideal for industrial, laboratory, manufacturing, and commercial weighing applications, the Tedea Huntleigh 01006-003K-G0-54X Load Cell offers reliable precision and durability. Explore additional models and sensor solutions in the Sensors category at EnvMart for comprehensive force measurement capabilities.
