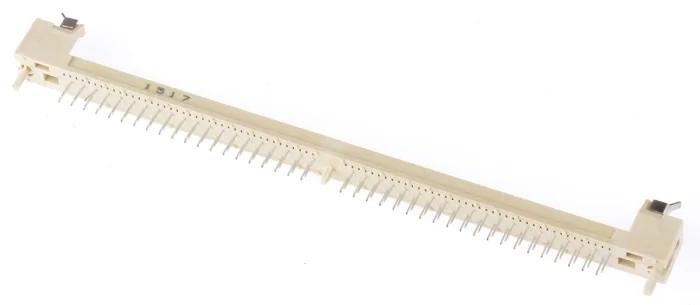

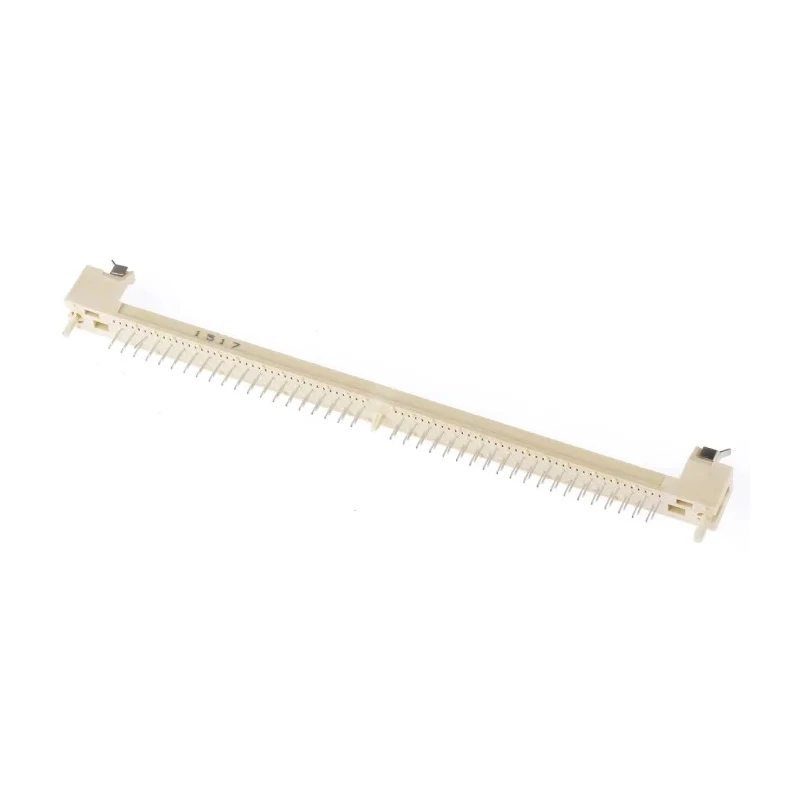

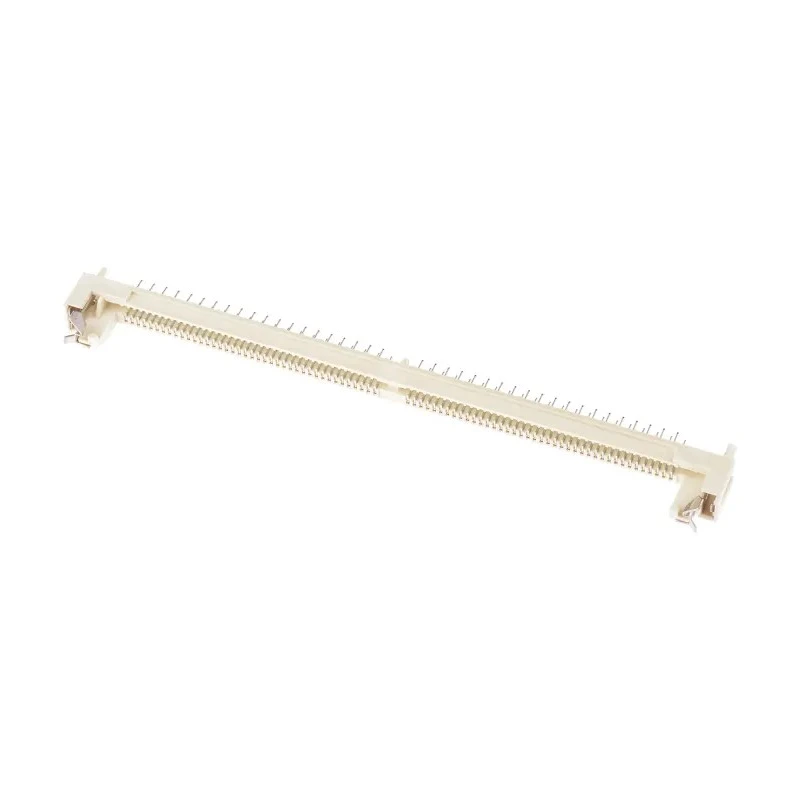

TE Connectivity 2.54 mm Pitch 80 Way Straight Through Hole Mount Memory Socket 5822021-5

TE Connectivity 5822021-5 Memory Socket is a high-quality, straight orientation SIMM (Single Inline Memory Module) socket featuring an 80 way, 2.54 mm pitch contact layout. It is designed to facilitate reliable attachment and easy serviceability of memory modules on printed circuit boards through a through-hole mounting configuration.

The socket's contact material is phosphor bronze, chosen for its excellent electrical conductivity and mechanical strength. Each contact is plated with tin over nickel, providing corrosion resistance and ensuring consistent performance over time in various environmental conditions.

The housing is manufactured from a heat resistant Liquid Crystal Polymer (LCP), offering high mechanical strength, stability at elevated temperatures up to 105°C, and resistance to thermal cycling. It also performs well in low temperature environments down to -55°C, making it ideal for industrial and electronic equipment applications.

This memory socket utilizes a cam-in insertion and removal mechanism combined with metal latches to provide secure retention of memory modules while minimizing the risk of damage during installation or service. It features positive polarization and center posts that help guide memory card insertion correctly, reducing assembly mistakes and improving reliability.

The product complies with RoHS standards, assuring that it meets critical regulations for hazardous substance reduction. The through-hole mount design ensures strong mechanical stability on PCBs, suitable for manufacturing, repair, and prototyping in electronic and industrial sectors.

SIMM memory card socket with 80 contacts and 2.54 mm pitch. Phosphor bronze contacts plated with tin over nickel for durability. Heat resistant liquid crystal polymer housing rated -55°C to 105°C operation. Cam-in insertion/removal method with metal latching for secure retention.

Through-hole mounting for robust PCB bonding. Positive polarization and center posts aid accurate memory card insertion. RoHS compliant for environmental safety. Ideal for industrial, electronic manufacturing, and computing applications.
