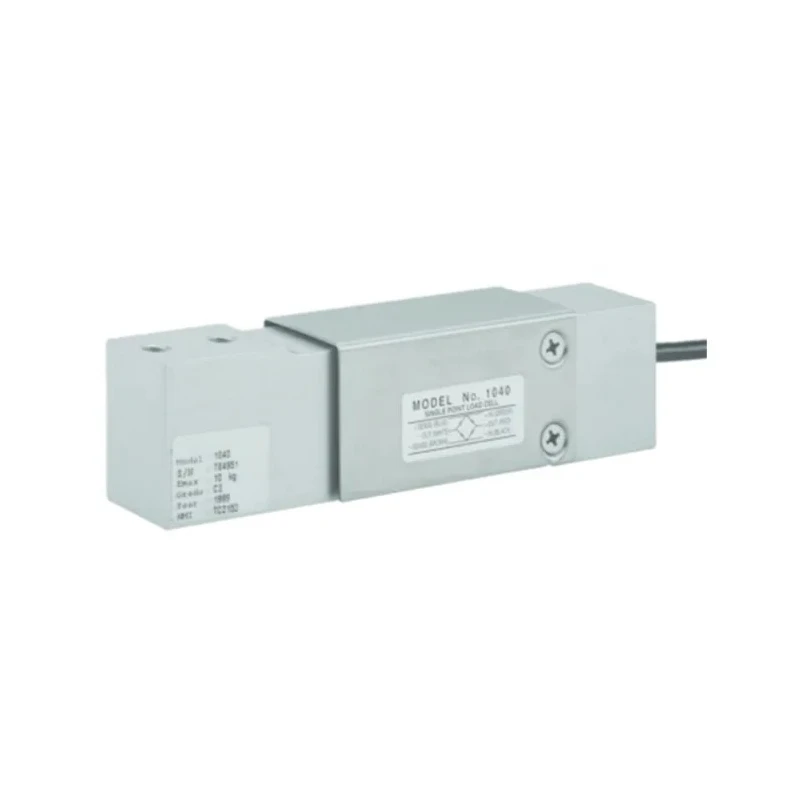

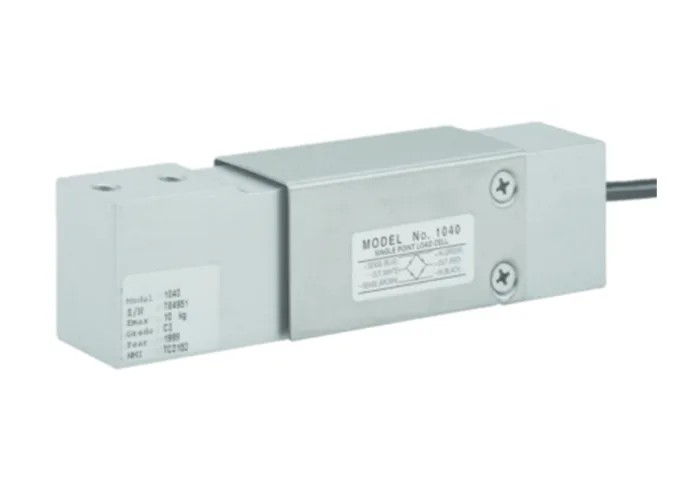

Tedea Huntleigh Model 1040 Series Low Profile Load Cell, Aluminium Housing, IP67, 5kg to 10kg Compression 01040-010K-C3-60X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 40mm |
| Model | 01040-010K-C3-60X |
| Depth | 29.5mm |
| IP Rating | IP67 |
| Sensor Type | Low Profile |
| Width | 29.5mm |
| Housing Material | Aluminium |
| Series | Model 1040 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | FM approval available, NTEP, RoH, OIML R60 |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 10kg |
| Minimum Force/Load Measurement | 5kg |
Key Features
- Constructed with anodized Aluminium housing ensuring lightweight and durability.
- IP67 rated for protection against dust and water ingress.
- Designed for single-point 400 x 400 mm platform mounting applications.
- Supports temperature operation range from -20°C to 70°C.
- Equipped with cable terminal type allowing easy connection and integration.
- Suitable for retail, bench, and counting scales requiring high accuracy.
- Fully compensated for lead resistance changes due to temperature and cable extension.
- Meets standards and approvals including FM, NTEP, RoH, and OIML R60.
Product Description
Tedea Huntleigh 01040-010K-C3-60X Model 1040 Series low profile load cell delivers precise compression force measurement capability covering a 5kg to 10kg range. Manufactured with anodized Aluminium housing, it balances small size with robust protection and high accuracy, ideal for various weighing platform setups.
Engineered as a single-point load cell suitable for direct mounting on low cost weighing platforms, its compactness (length 40mm, width 29.5mm, depth 29.5mm) and cable terminal type facilitate straightforward installation. IP67 ingress protection ensures reliable performance in demanding industrial and commercial environments.
The device compensates for voltage fluctuations caused by lead resistance changes due to temperature variations or cable extension through its use of additional sense wires feeding back the voltage to electronics, maintaining consistent accuracy.
Its temperature operation range from -20°C to 70°C allows use in a variety of conditions. The load cell complies with FM approval, NTEP, RoH, and OIML R60 standards, assuring quality and regulatory adherence.
Commonly applied in bench scales, counting scales, and grocery scales, the Tedea Huntleigh 1040 Series load cell is optimized for retail and light industrial weighing applications requiring precision and reliability.
Constructed with anodized Aluminium housing ensuring lightweight and durability. IP67 rated for protection against dust and water ingress. Designed for single-point 400 x 400 mm platform mounting applications. Supports temperature operation range from -20°C to 70°C.
Equipped with cable terminal type allowing easy connection and integration. Suitable for retail, bench, and counting scales requiring high accuracy. Fully compensated for lead resistance changes due to temperature and cable extension.
Meets standards and approvals including FM, NTEP, RoH, and OIML R60. Explore the Electronics & Electricals category on EnvMart for advanced sensors and Load Cells tailored to industrial, laboratory, and commercial use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures compression forces ranging from 5kg to 10kg.
It features an anodized Aluminium housing, which ensures lightweight construction and durability.
The load cell has an IP67 rating, providing protection against dust and water ingress.
It operates effectively within a temperature range of -20°C to 70°C.
It is equipped with a cable terminal type, allowing for easy connection and integration.
The load cell has a length of 40mm, a width of 29.5mm, and a depth of 29.5mm.
It complies with FM approval, NTEP, RoH, and OIML R60 standards.
It is commonly applied in bench scales, counting scales, and grocery scales requiring high accuracy.
It is fully compensated for lead resistance changes due to temperature and cable extension using additional sense wires.
The maximum DC voltage for this unit is 15V.
This load cell is designed to measure compression forces.
The maximum AC voltage for this model is also 15V.
