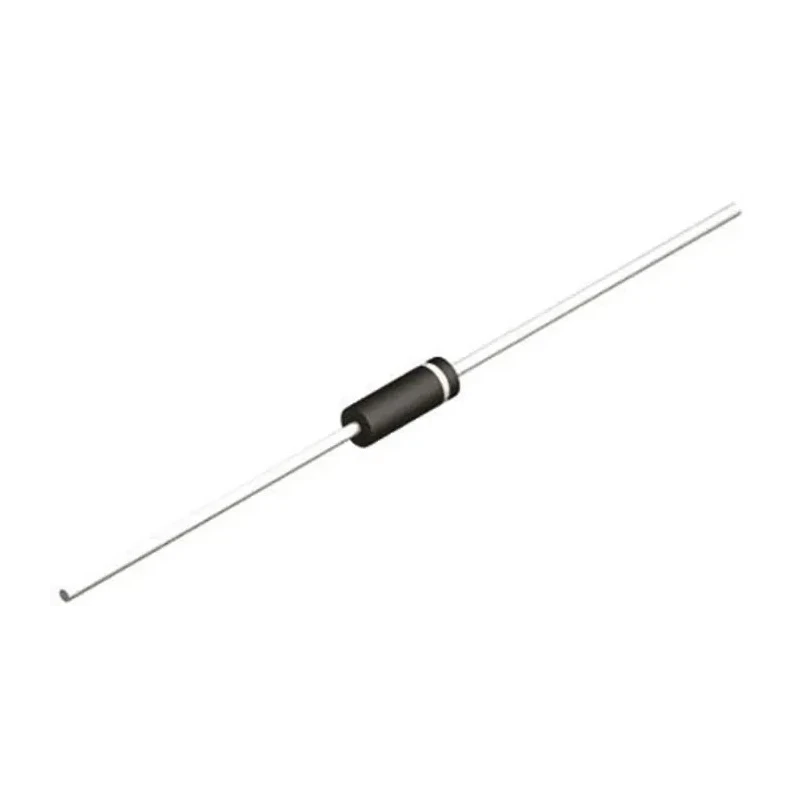

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW, 2-Pin, Through Hole Mount 1.5KE22A-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE22A-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 30.6V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 20.9V |
| Maximum Reverse Stand-off Voltage Vwm | 18.8V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 49A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration providing uni-directional transient voltage suppression.
- Peak pulse power rating of 1.5 kW ensures robust protection against voltage spikes.
- Through hole mount with 2-pin package for easy PCB integration.
- Operating temperature range from -55°C to 175°C for high reliability in harsh environments.
- Minimum breakdown voltage of 20.9 V and maximum reverse stand-off voltage of 18.8 V.
- Clamping voltage of 30.6 V to limit voltage spikes effectively.
- Complies with automotive standard AEC-Q101 ensuring suitability for automotive applications.
- Compact axial package type 1.5KE with 9.5 mm length and 5.3 mm diameter dimensions.
Product Description
Vishay 1.5KE22A-E3/54 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from transient voltage spikes and surges. Featuring a peak pulse power dissipation of 1.5 kW and a compact 2-pin axial through-hole package, this diode is suitable for use in a wide range of industrial, automotive, and consumer electronics applications.
The device provides robust ESD protection and complies with the AEC-Q101 automotive standard, ensuring performance and reliability under demanding conditions. It operates effectively within a temperature range of -55°C to 175°C, making it ideal for harsh environment usage.
Electrical characteristics include a minimum breakdown voltage of 20.9 V, maximum reverse stand-off voltage of 18.8 V, and a clamping voltage of 30.6 V to suppress transient voltages efficiently. This diode can handle maximum peak pulse currents of up to 49 A while maintaining a very low maximum reverse leakage current of 1 μA.
The axial through-hole mount design with a length of 9.5 mm and diameter of 5.3 mm provides easy integration into PCBs and systems requiring reliable transient voltage suppression. This device is part of the TRANSZORB TVS series from Vishay Semiconductor, widely recognized for quality and performance in voltage protection components.
Single diode configuration providing uni-directional transient voltage suppression. Peak pulse power rating of 1.5 kW ensures robust protection against voltage spikes. Through hole mount with 2-pin package for easy PCB integration.
Operating temperature range from -55°C to 175°C for high reliability in harsh environments. Minimum breakdown voltage of 20.9 V and maximum reverse stand-off voltage of 18.8 V. Clamping voltage of 30.6 V to limit voltage spikes effectively.
Complies with automotive standard AEC-Q101 ensuring suitability for automotive applications. Compact axial package type 1.5KE with 9.5 mm length and 5.3 mm diameter dimensions. Maximum peak pulse current of 49 A for transient current handling.
Low maximum reverse leakage current of 1 μA to reduce power loss.
This Vishay TVS Diode is ideal for protecting sensitive electronic circuits in automotive, industrial, power supply, and consumer electronics applications. Explore more high-quality semiconductor protection components in the Vishay range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power rating of this model is 1.5 kW, providing robust protection against voltage spikes.
It operates effectively within a temperature range of -55°C to 175°C, making it suitable for harsh environments.
The clamping voltage for this diode is 30.6 V, which helps to limit voltage spikes effectively.
The minimum breakdown voltage is 20.9 V, ensuring it activates to protect circuits at the appropriate voltage level.
The maximum reverse stand-off voltage is 18.8 V, which defines the maximum voltage the diode can withstand without conducting.
This model features a single diode configuration, providing uni-directional transient voltage suppression.
It can handle a maximum peak pulse current of up to 49 A, making it effective for transient current handling.
This model uses a through-hole mount design, facilitating easy integration into PCBs.
The dimensions of this diode are 9.5 mm in length and 5.3 mm in diameter.
It complies with the AEC-Q101 automotive standard, ensuring its suitability for automotive applications.
The maximum reverse leakage current is 1 μA, which helps to reduce power loss.
This diode is part of the TRANSZORB TVS series, known for quality and performance in voltage protection components.
