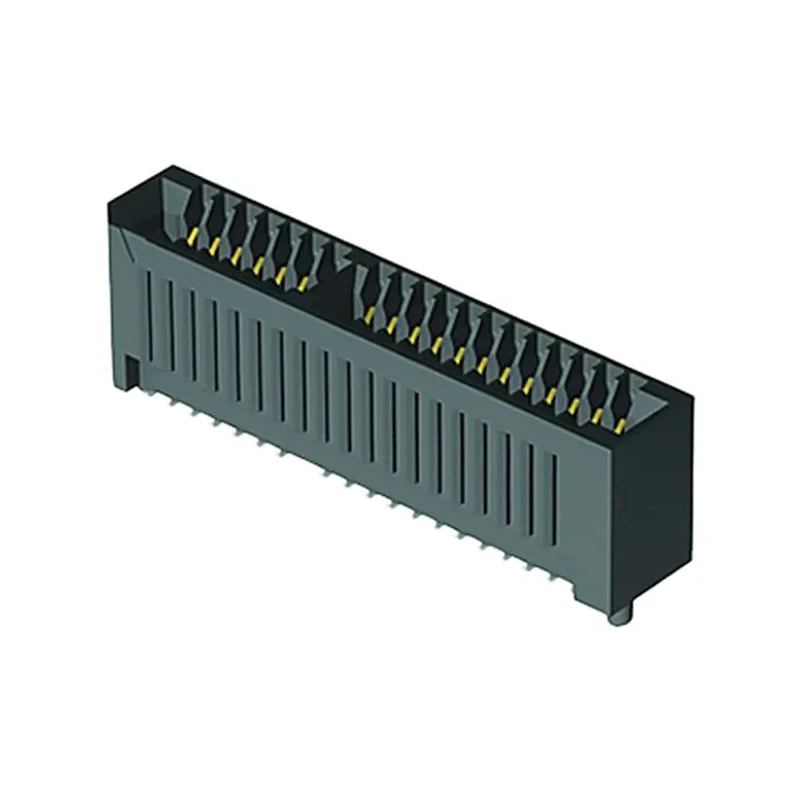

Samtec MECF Series Straight Edge Connector Female, Surface Mount, 80 Contacts, 1.27 mm Pitch, 2 Row, Solder MECF-40-01-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 280V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.5A |
| Model | MECF-40-01-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MECF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel, Gold over Nickel |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- This connector supports a current rating of 3.5 A for reliable electrical performance.
- The beryllium copper alloy contacts have tin over nickel and gold plating to ensure durability.
- It is designed for PCB surface mounting and accepts 1.60 mm thick cards.
- Operating temperature ranges from -55°C to a maximum of 125°C for robust usage.
- The housing is made of liquid crystal polymer providing thermal stability and insulation.
- The connector voltage rating is 280 V AC suitable for moderate voltage applications.
- The female orientation and keying ensure correct mating and prevent misalignment.
- The micro edge card socket design supports high-speed data transfer up to 28+ Gbps.
Product Description
The Samtec MECF-40-01-L-DV is a high-performance female edge connector from the MECF series, designed for surface mount applications on printed circuit boards. It features 80 gold-plated contacts arranged in two rows with a fine 1.27 mm pitch, enabling reliable high-density electrical connections.
This connector is engineered for use with 1.60 mm thick cards and includes PCB alignment pins to ensure accurate positioning during assembly. Its construction utilizes beryllium copper alloy contacts plated with tin over nickel and gold, offering excellent conductivity and resistance to corrosion.
The liquid crystal polymer housing delivers excellent mechanical strength and thermal stability, allowing operation in harsh industrial and electronic environments between -55°C and 125°C. The connector is rated for 3.5 A current and 280 V AC voltage, ensuring suitability for a wide range of electronic and power connector applications.
Featuring a keying system and a female contact gender, this micro edge card socket supports sophisticated PCB designs for computing and communications equipment requiring high-speed data transfer up to 28+ Gbps. The solder termination type facilitates secure and durable mechanical and electrical mounting on the PCB surface.
This connector supports secure surface mounting with solder termination. The dual-row layout with 80 contacts allows compact and efficient signal routing. The gold and tin plating on contacts ensures long-term reliability and resistance to wear.
Thermally resilient polymer housing safeguards performance over wide temperature ranges. Keying prevents orientation errors during installation. Designed for industrial, electronic components, computing, and telecommunications applications.
Supports cards of 1.6 mm thickness and models with weld tab options for 2.36 mm thickness.
Samtec MECF series edge connectors are trusted in the manufacturing, electronics, and telecommunications industries for their quality and adherence to robust engineering standards. Explore more connectors like this in the Edge Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 3.5 A, ensuring reliable electrical performance.
The voltage rating for the MECF-40-01-L-DV is 280 V AC, making it suitable for moderate voltage applications.
It operates within a temperature range of -55°C to 125°C, allowing for robust usage in various environments.
The contacts are made of beryllium copper alloy with tin over nickel and gold plating, while the housing is constructed from liquid crystal polymer.
This edge connector features 80 contacts arranged in two rows with a 1.27 mm pitch.
It utilizes a solder termination type, facilitating secure and durable mounting on the PCB surface.
The MECF-40-01-L-DV is designed to accept cards that are 1.60 mm thick.
This model has a straight orientation, which helps ensure correct mating and alignment during installation.
It is designed for use in industrial, electronic components, computing, and telecommunications applications.
The maximum operating temperature is 125°C, allowing it to function in high-temperature environments.
Yes, it supports high-speed data transfer rates of up to 28+ Gbps, making it suitable for advanced electronic applications.
The connector is manufactured in India, ensuring adherence to quality engineering standards.
