Wurth Elektronik WE-LQS 5020 Shielded Wirewound Surface Mount Inductor with Iron Core 68 μH ±20% 800 mA 74404052680

Free Delivery in India | Lowest Global Shipping Charges

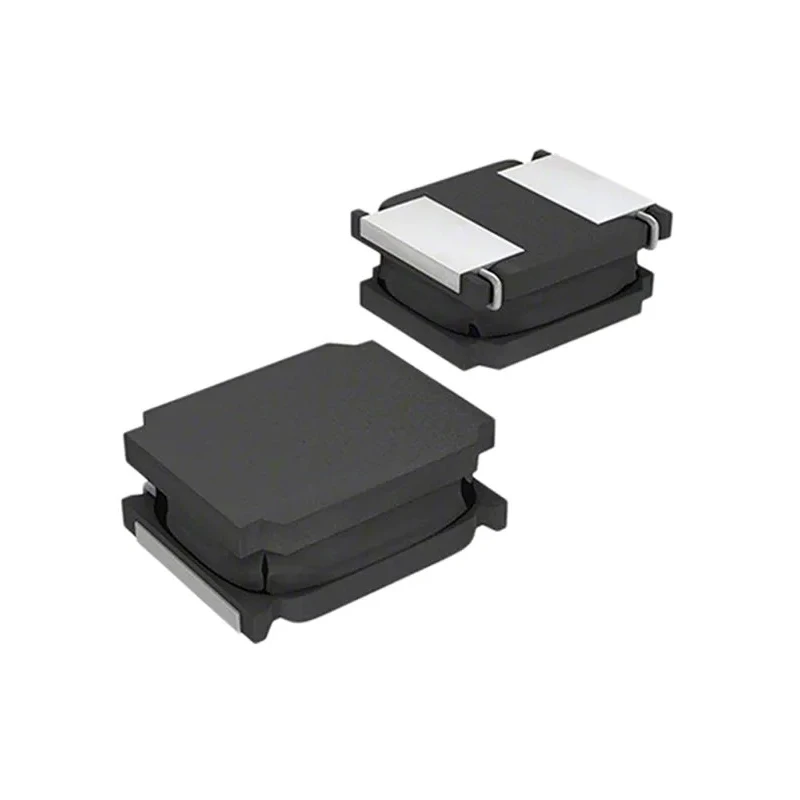

Wurth Elektronik WE-LQS 5020 Shielded Wirewound Surface Mount Inductor with Iron Core 68 μH ±20% 800 mA 74404052680

Name: Wurth Elektronik WE-LQS 5020 Shielded Wirewound Surface Mount Inductor with Iron Core 68 μH ±20% 800 mA 74404052680
Brand: Wurth Elektronik
SKU: 135931
Price: 0.98 USD
Availability: InStock



Category Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2mm
Length	5mm
Depth	5mm
Packaging	Tape & Reel
Series	WE-LQS
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Iron
Inductance	68μH
Standards/Approvals	REACH, RoHS, JEDEC JS709B, IEC 61249-2-21
Package/Case	5020
Maximum DC Current	800mA
Pin Count	2
Maximum DC Resistance	769mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	9.2MHz
Inductor Construction	Moulded
Automotive Standard	AEC-Q200

Key Features

The inductor has a compact 5020 package size measuring 5 mm length, 2 mm height, and 5 mm depth.
It is magnetically shielded for reduced electromagnetic interference in circuits.
Maximum DC resistance of 769 mΩ ensures efficient performance.
Designed for automotive standards with AEC-Q200 certification and RoHS, REACH compliant.
Suitable for high efficiency switching controllers and portable power applications.
Operates reliably from -40°C to 125°C maximum temperature.
The iron core and moulded construction increase durability and stability.
Termination style is surface mount, compatible with tape & reel packaging.

Product Description

Wurth Elektronik 74404052680 is a 5020 series shielded wirewound surface mount inductor designed for compact and efficient power management. Featuring an iron core and a moulded construction, it offers robust performance and minimises electromagnetic interference thanks to its magnetic shielding.

This inductor has a nominal inductance of 68 μH with a tolerance of ±20%, supporting a maximum DC current of 800 mA, making it suitable for high-efficiency DC/DC converter circuits. The device operates effectively within a temperature range of -40°C to 125°C, complying with automotive-grade AEC-Q200 standards as well as RoHS and REACH environmental standards.

Its physical dimensions measure 5 mm in length, 2 mm in height, and 5 mm in depth, housed in a 5020 surface mount package with a 2-pin termination style for easy PCB assembly. The maximum DC resistance is 769 mΩ, ensuring minimal power loss, and the component achieves a maximum self-resonant frequency of 9.2 MHz, suitable for high-frequency switching applications.

This power inductor is ideal for portable power devices such as PDAs, smartphones, digital cameras, and TVs where compact size, durability, and low electromagnetic interference are critical. Its magnetically shielded design supports stable operation and better integration in complex circuit layouts.

The product is shipped in tape & reel packaging, promoting efficient automated assembly line usage. It originates from China and reflects Wurth Elektronik's commitment to quality and reliability in electronic components.

The inductor provides compact, shielded wirewound construction with iron core for stable inductance. It supports automotive and industrial applications with robust temperature and current ratings. The surface mount 5020 package ensures easy integration into low-profile circuit boards.

High-frequency performance is enabled by a self-resonant frequency of 9.2 MHz. RoHS and REACH compliance make it environmentally friendly. Discover more Wurth Elektronik surface mount Inductors and explore related electronic components at EnvMart.
