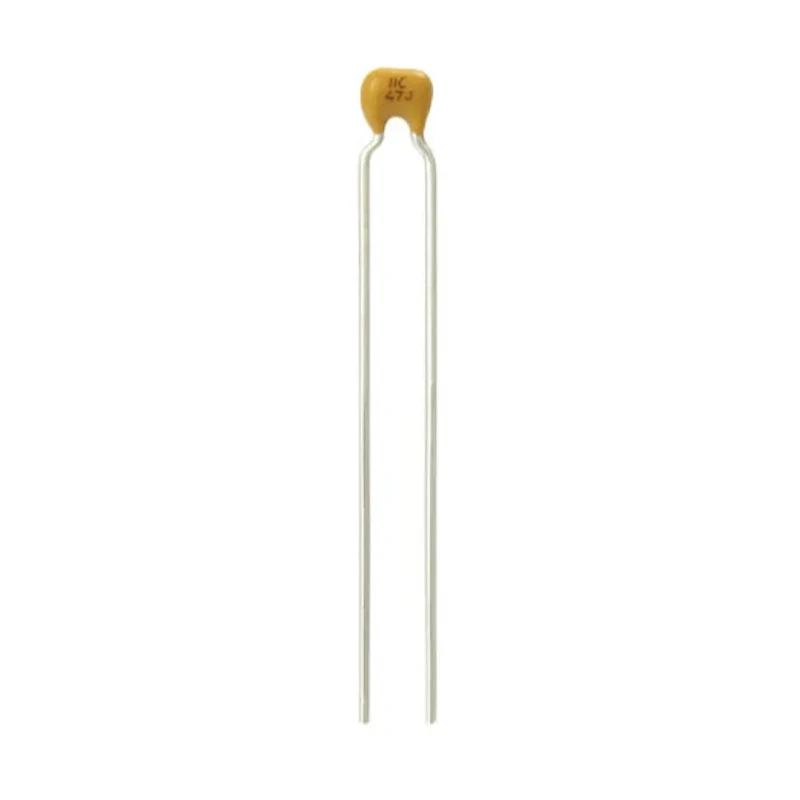

Vishay 22 pF Multilayer Ceramic Capacitor 50V dc ±5 % Through Hole Radial K220J15C0GF5TL2

Free Delivery in India | Lowest Global Shipping Charges

Vishay 22 pF Multilayer Ceramic Capacitor 50V dc ±5 % Through Hole Radial K220J15C0GF5TL2

Name: Vishay 22 pF Multilayer Ceramic Capacitor 50V dc ±5 % Through Hole Radial K220J15C0GF5TL2
Brand: Vishay
SKU: 134683



Category Capacitors Brand Vishay Condition New

Specifications

Country of Origin	China
Voltage	50V dc
Brand	Vishay
Height	4mm
Length	4mm
Model	K220J15C0GF5TL2
Packaging	Reel
Width	2.6mm
Mount Type	Through Hole
Series	K
Termination Type	Radial
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	22pF
Minimum Operating Temperature	-55°C
Standards/Approvals	IEC 60384-9, EIA 198
Lead Diameter	0.5mm
Dielectric	C0G
Lead Spacing	2.5mm
Seated Plane Height	1.6mm

Key Features

Capacitance of 22 pF suitable for various electronic circuits.
±5 % tolerance for precision in capacitance value.
Through hole radial mounting enables strong mechanical and electrical connections.
Constructed with C0G dielectric for stable electrical characteristics.
Small form factor with dimensions 4 mm length, 4 mm height, and 2.6 mm width.
Maximum operating temperature up to 125°C allowing usage in demanding thermal environments.
Lead spacing and diameter are 2.5 mm and 0.5 mm respectively, suitable for standard PCB layouts.
Compliance with IEC 60384-9 and EIA 198 standards ensures quality and reliability.

Product Description

Vishay K220J15C0GF5TL2 is a 22 pF Multilayer Ceramic Capacitor designed for high reliability and precision in demanding electronic applications. With a voltage rating of 50V dc and a tolerance of ±5 %, this capacitor uses C0G dielectric material to provide excellent stability and low losses. The component is mounted through hole with radial leads, making it suitable for robust and secure PCB assembly.

The compact 4 mm by 4 mm body size with a width of 2.6 mm allows for easy integration into space-constrained circuit boards. Its excellent thermal performance supports a maximum operating temperature of 125°C and a minimum operating temperature down to -55°C, ensuring durability across various industrial, consumer, and automotive electronics environments.

Key design features include a yellow flame retardant epoxy resin coating for enhanced safety and silver-plated ceramic discs for reliable electrical contacts. Lead spacing is 2.5 mm with a lead diameter of 0.5 mm, compatible with standard through hole PCB designs. The series complies with international standards IEC 60384-9 and EIA 198, reflecting strict quality assurance.

Capacitance of 22 pF delivers precise electrical performance. 50V dc voltage rating ensures operational safety. Through hole radial mount type for secure soldering and mechanical stability. C0G dielectric offers excellent temperature stability and low loss.

Operating temperature range from -55°C to 125°C for diverse applications. Compact dimensions support integration in limited spaces. Conforms to IEC 60384-9 and EIA 198 standards. Manufactured in China with quality control measures applied.

This capacitor is commonly used in telecommunications, automotive electronics, industrial controls, and consumer electronic products. Its multilayer structure provides enhanced capacitance density and reliability compared to single-layer ceramic capacitors.

Explore additional Vishay multilayer ceramic Capacitors and related electronic components in the MLCCs category on EnvMart to find suitable parts for your project requirements.
