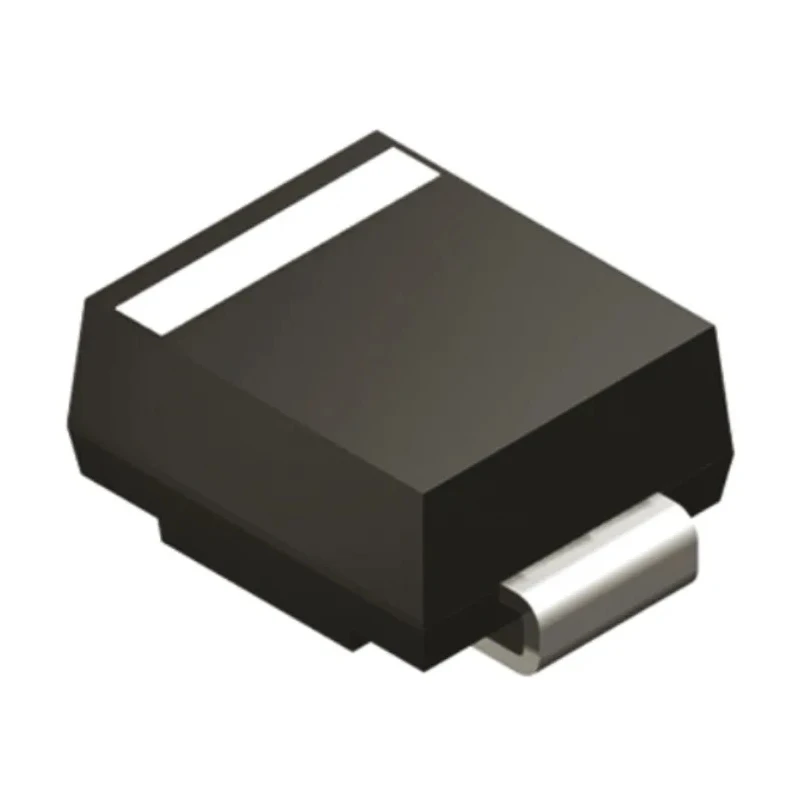

Vishay 1-Element Uni-Directional TVS Diode 600 W Peak Pulse Power Surface Mount DO-214AA 2-Pin SMBJ8.0A-E3/52

Vishay SMBJ8.0A-E3/52 Uni-Directional TVS Diode is engineered for robust transient voltage suppression with a peak pulse power rating of 600 watts, packaged in a compact DO-214AA (SMB) surface mount design.

The diode utilizes a single-element configuration, optimal for unidirectional protection in circuits subjected to voltage spikes caused by inductive load switching or lightning transients. It features a minimum breakdown voltage of 8.89 volts and a maximum reverse stand-off voltage of 8 volts, ensuring accurate clamp response at 13.6 volts clamping voltage, protecting downstream components effectively.

Operable from -55°C up to 150°C, this diode withstands harsh environmental conditions typical in industrial, automotive, and telecommunication electronics. The transient voltage suppressor's fast response time and low incremental surge resistance enhance circuit reliability by quickly neutralizing harmful voltage surges. With electrostatic discharge protection and compliance to AEC-Q101 automotive standards, it is suitable for rugged applications.

Its surface mount DO-214AA package enables automated assembly on compact circuit boards. Dimensions including 4.57 mm length, 3.94 mm width, and 2.24 mm height make it suitable for space-constrained designs.

Ideal use cases include protecting integrated circuits, MOSFETs, sensors, and signal lines in computer, consumer electronics, industrial control, and telecommunications equipment. This diode features a single-element, uni-directional configuration optimized for overvoltage protection.

It can handle peak pulse power of 600 watts with a clamping voltage of 13.6 V. The device has a minimum breakdown voltage of 8.89 V and a maximum reverse stand-off voltage of 8 V. Designed for surface mount applications with a compact DO-214AA SMB package, having dimensions of approximately 4.57mm length and 3.94mm width.

Operates over a temperature range from -55°C to 150°C, suitable for various industrial and automotive environments. Provides electrostatic discharge protection and complies with automotive standard AEC-Q101. This device is ideal for protecting sensitive electronics like ICs, MOSFETs, and signal lines from voltage transients in consumer, industrial, and telecommunication applications.
