| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 3.7mm |
| Model | TLZ3V9A-GS08 |
| Mount Type | Surface |
| Series | TLZ |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-80 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 3.9V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 50Ω |

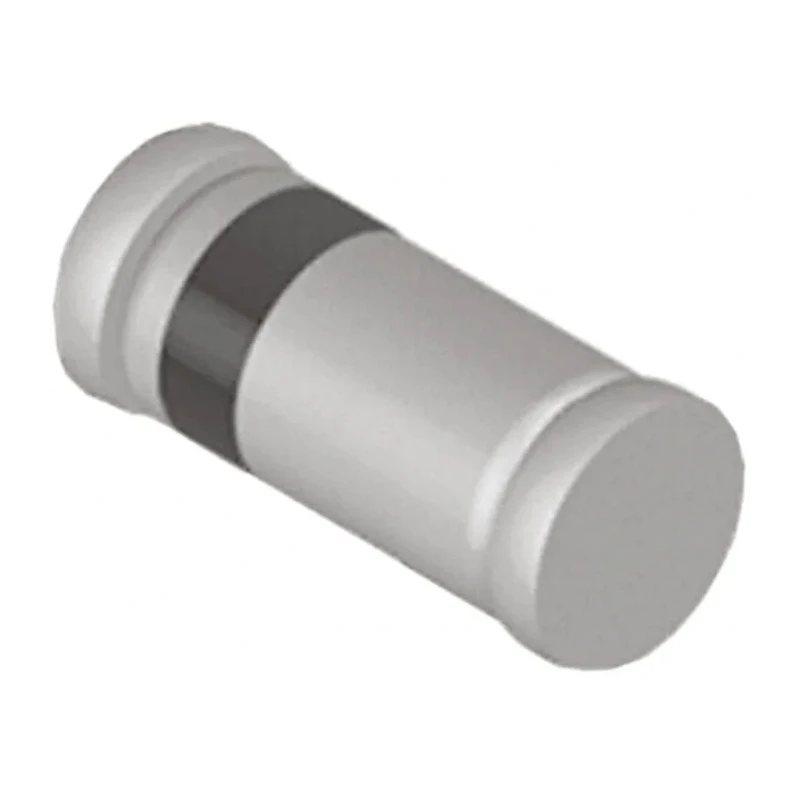

Vishay TLZ3V9A-GS08 is a high-stability single Zener diode with a nominal voltage of 3.9 V and a power dissipation rating of 500 mW designed for surface mount applications. This diode serves as a voltage regulator and is engineered to deliver precise voltage control within 3 % tolerance. Its compact SOD-80 package with 2 pins aids seamless incorporation into electronic circuitry.
The diode features a test current of 20 mA and a maximum Zener impedance of 50 ohms, making it suitable for low noise and high stability requirements in industrial and automotive electronics. It supports a wide operating temperature range from -65°C to 175°C, enabling reliable operation in harsh environments.
Designed for small signal applications, the TLZ3V9A-GS08 offers very sharp reverse characteristics, low reverse current, and minimal reverse leakage current of 3 microamperes. It conforms to RoHS environmental standards and is automotive qualified per AEC-Q101, ensuring durability and compliance in critical industrial uses.
This Zener diode is suitable for use in electronic industrial equipment, power regulation modules, automotive electronics, consumer electronics, and laboratory instrumentation. Its precise voltage regulation and robust construction make it ideal for manufacturing, circuit protection, and voltage stabilization tasks.
The diode operates with a maximum power dissipation of 500 mW and a nominal Zener voltage of 3.9 V. Its 2-pin SOD-80 surface mount package fits compact electronic assemblies. Test current is 20 mA with maximum impedance of 50 Ω to ensure stable voltage control.
Temperature rating from -65°C to 175°C supports a variety of operational environments. Low leakage current and sharp reverse characteristics provide excellent performance quality. Compliance with RoHS and automotive AEC-Q101 standards guarantees product reliability and safety.
Explore the full range of Vishay semiconductor Zener Diodes at EnvMart for reliable and efficient voltage regulation solutions tailored to industrial, automotive, and electronic manufacturing requirements.
