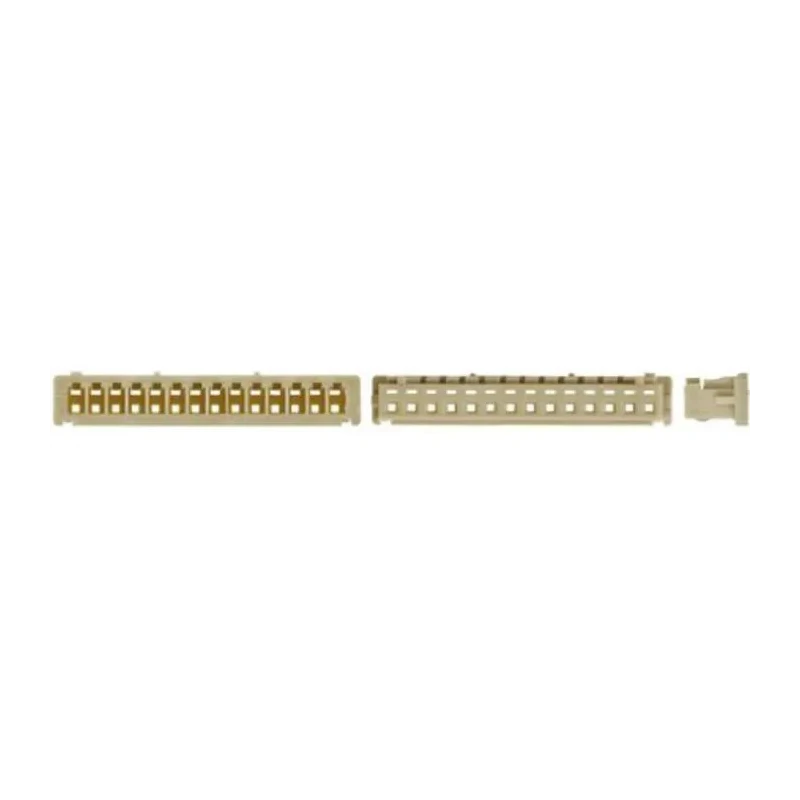

Hirose DF13 Male Connector Housing 1.25 mm Pitch 14 Way 1 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 19.15mm |
| Model | DF13 |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | Miniature Crimping Connector |
| Number of Contacts | 14 |
| Connector Gender | Male |
Key Features
- Miniature 1.25 mm pitch enables high-density PCB connections.
- Fourteen contact points arranged in a single row for streamlined design.
- Polyamide housing material offers durability and insulation.
- Straight orientation supports cable mount for ease of assembly.
- Friction locking mechanism prevents accidental disconnection.
- Polarisation slots ensure correct insertion alignment.
- Compatible with miniature crimping connectors for secure contacts.
- Ideal for applications in digital cameras, LCD displays, and measurement devices.
Product Description
Hirose DF13-14S-1.25C is a male connector housing designed for miniature applications requiring high-density connections. Featuring a 1.25 mm pitch with 14 contacts arranged in a single row, this straight cable mount connector accommodates compact electronic assemblies such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and precision measurement devices.
The housing is constructed from polyamide material, providing excellent durability and electrical insulation. Key functional elements include polarisation slots to prevent incorrect insertion, and a friction locking mechanism that securely stabilizes mating connections during operation.
Compact dimensions of 19.15 mm length and 3.2 mm width make it highly suitable for space-constrained designs. The connector is engineered to accommodate miniature crimping connectors, ensuring reliable electrical contacts with ease of assembly.
The DF13 series connector housing meets UL94V-0 flame resistance standards, enhancing safety in electrical and electronic applications commonly found in industrial, commercial, and consumer electronic devices.
Miniature 1.25 mm pitch enables high-density PCB connections. Fourteen contact points arranged in a single row for streamlined design. Polyamide housing material offers durability and insulation. Straight orientation supports cable mount for ease of assembly.
Friction locking mechanism prevents accidental disconnection. Polarisation slots ensure correct insertion alignment. Compatible with miniature crimping connectors for secure contacts. Ideal for applications in digital cameras, LCD displays, and measurement devices.
Meets UL94V-0 flame resistance standards for safety. Compact dimensions: 19.15 mm length and 3.2 mm width optimize space usage.
This Connector Housing is a reliable choice for engineers and technicians requiring miniature PCB connection solutions in industrial, laboratory, commercial electronics, and embedded system design. Explore the full range of Hirose connectors and housings on EnvMart to find components optimized for your specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a 1.25 mm pitch and has 14 contacts arranged in a single row.
The orientation of this connector housing is straight, which supports cable mounting for ease of assembly.
The housing is constructed from polyamide material, providing durability and electrical insulation.
The dimensions of this connector housing are 19.15 mm in length and 3.2 mm in width.
This connector housing meets UL94V-0 flame resistance standards, enhancing safety in electrical applications.
The friction locking mechanism secures the mating connections, preventing accidental disconnection during operation.
The connector gender for this housing is male.
This connector housing has a single row configuration.
The country of origin for this connector housing is India.
The mounting type for this connector housing is cable mount.
