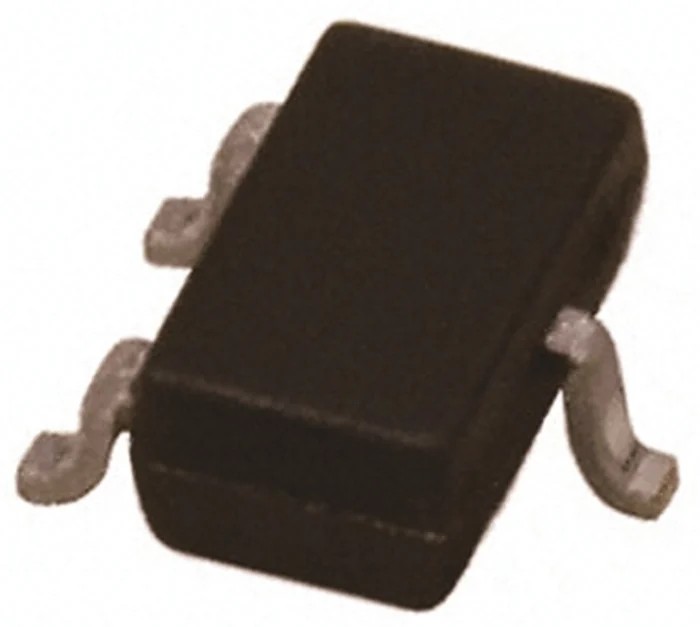

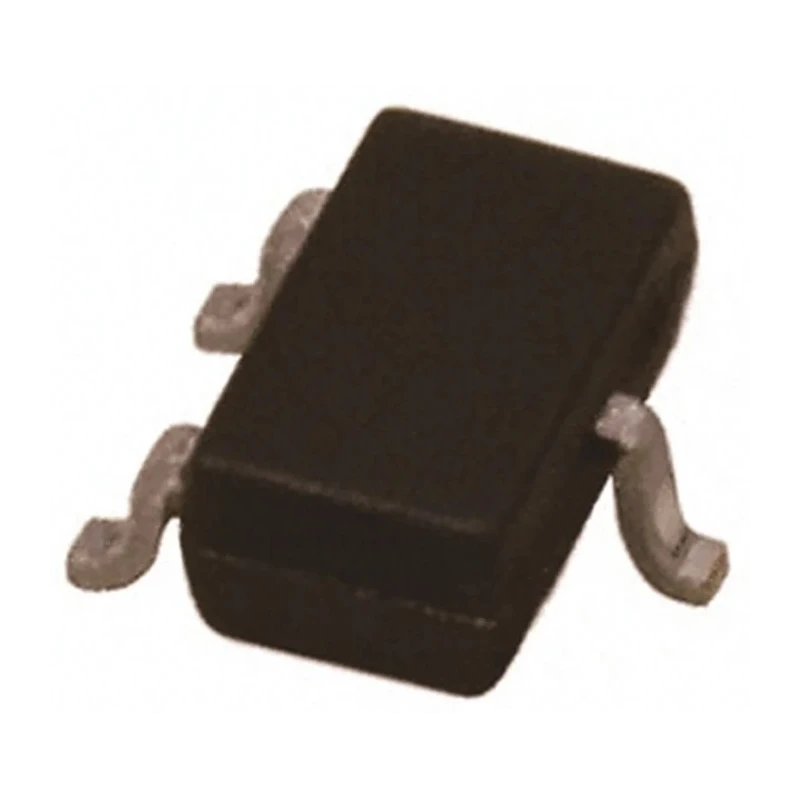

Nexperia 20 V 500 mA Schottky Diode 3-Pin SOT-23 Package PMEG2005CT,215
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | PMEG2005CT,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | PMEG2005CT |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10A |
| Maximum Forward Voltage Vf | 390mV |
| Peak Reverse Recovery Time trr | 22ns |
Key Features
- Surface mount package type for compact PCB designs.
- Maximum continuous forward current of 500 mA.
- Peak reverse voltage of 20 V ensures reliable voltage blocking.
- Schottky diode configuration provides fast switching and low forward voltage.
- Wide operating temperature range from -55°C to 150°C.
- Low leakage current at 200 μA peak reverse current.
- Peak non-repetitive surge current rating of 10 A for transient tolerances.
- Automotive grade complying with AEC-Q101 standard.
Product Description
Nexperia PMEG2005CT,215 is a high efficiency Schottky diode designed for surface mount applications in a 3-pin SOT-23 package. It supports a maximum continuous forward current of 500 mA and a peak reverse voltage of 20 V, making it suitable for low voltage rectification.
This diode features a common cathode configuration optimized to minimize forward voltage drop (390 mV max) and power dissipation. The low leakage current of 200 μA and fast recovery time of 22 ns improve overall circuit efficiency and switching speeds.
Its robust operating temperature range from -55°C to 150°C and peak surge current capacity of 10 A allow reliable performance in industrial, automotive, and consumer electronics environments requiring space-saving components with high thermal tolerance.
Surface mount design for compact circuit board integration. High efficiency with low forward voltage drop reduces energy loss. Automotive compliant with AEC-Q101 ensures quality and reliability. Supports transient voltage and current peaks for robust operation.
Minimal capacitance and power switching losses for improved switching performance.
This diode is ideally used in power rectification, voltage clamping, and free-wheeling applications in power supplies, automotive electronics, and industrial control systems. Its small footprint and reliable ratings make it a favored choice for modern compact electronic devices.
Country of Origin: China. Explore more semiconductor solutions and Schottky diode options in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 500 mA.
This model has a peak reverse voltage rating of 20 V.
The operating temperature range for this diode is from -55°C to 150°C.
It uses a 3-pin SOT-23 package type for surface mount applications.
The maximum forward voltage drop for this diode is 390 mV.
This model can handle a peak reverse current of 200 μA.
The peak non-repetitive forward surge current rating is 10 A.
This diode complies with the AEC-Q101 automotive standard.
The dimensions are as follows: height is 1.1 mm, length is 3 mm, and width is 1.4 mm.
It features a common cathode configuration.
The peak reverse recovery time is 22 ns.
This diode is typically used in power rectification, voltage clamping, and free-wheeling applications in power supplies and automotive electronics.
