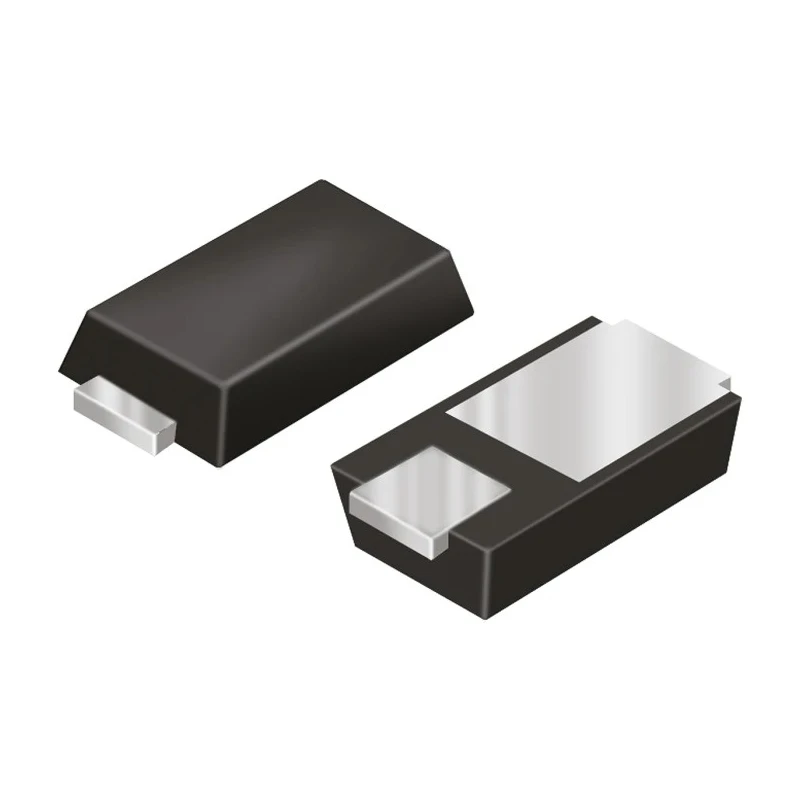

Vishay Switching Diode Single 1 A 2-Pin 600 V SMP MSE1PJHM3/89A

Vishay MSE1PJHM3/89A is a high-efficiency single switching diode designed for industrial and electronic applications requiring fast switching and reliable current handling.

This SIP diode features a forward current rating of 1 ampere and a peak repetitive voltage of 600 volts, making it suitable for power switching and rectifying tasks in circuits such as power supplies, motor drives, and control units.

The device comes in a compact surface mount SMP package with a 2-pin configuration, enabling space-efficient PCB layout and ease of automated assembly.

Its silicon junction technology offers a maximum forward voltage drop of 1.1 volts with a rapid reverse recovery time of 780 nanoseconds, promoting minimal switching losses and enhanced efficiency in high-frequency applications.

This diode operates reliably across a broad temperature range of -55 °C to 175 °C, ensuring stable performance under harsh environmental and thermal conditions. Additional specifications include a peak non-repetitive forward surge current of 20 amps and dimension measurements of 2.3 mm length, 1.4 mm width, and 0.73 mm height.

Manufactured in China and compliant with general semiconductor standards, this diode is suitable for industrial, manufacturing, and electronic equipment usage. Single diode configuration optimized for switching applications.

Maximum forward current of 1 ampere ensures reliable load handling. Peak repetitive voltage rating of 600 volts for high-voltage circuits. Surface mount package (SMP) with 2-pin layout for compact PCB designs. Fast recovery time of 780 nanoseconds for efficient switching performance.

Silicon junction construction with maximum forward voltage of 1.1 volts. Wide operating temperature range from -55 °C to 175 °C. Capable of withstanding 20 A peak non-repetitive forward surge current. Compact dimensions: 2.3 mm length, 1.4 mm width, and 0.73 mm height.

Manufactured in China and supplied new for industrial and electronic equipment use. This product is an ideal choice in the semiconductor category for applications in power electronics, industrial automation, and electronic component manufacturing.
