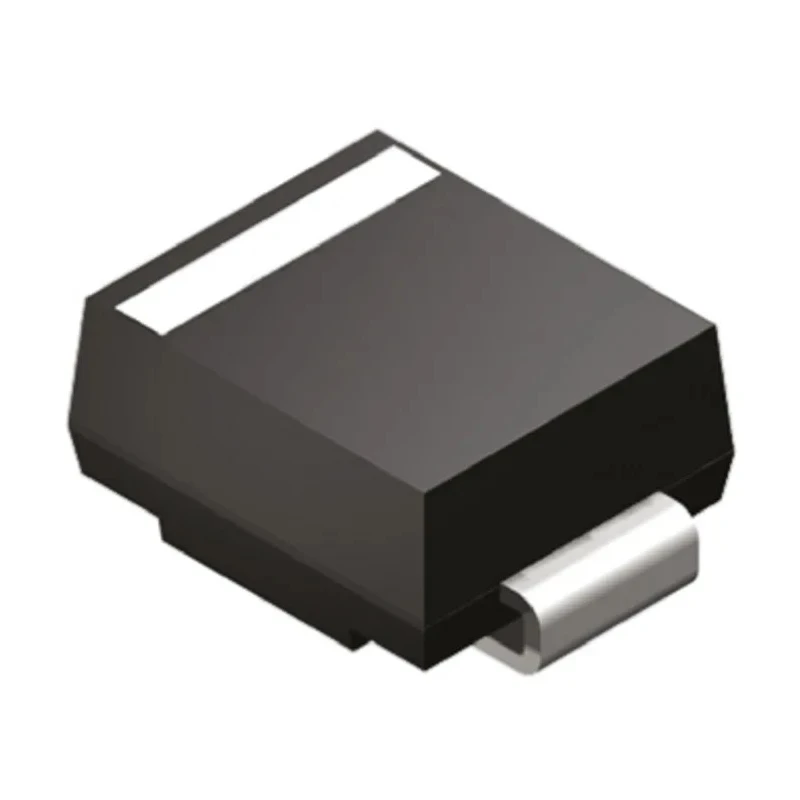

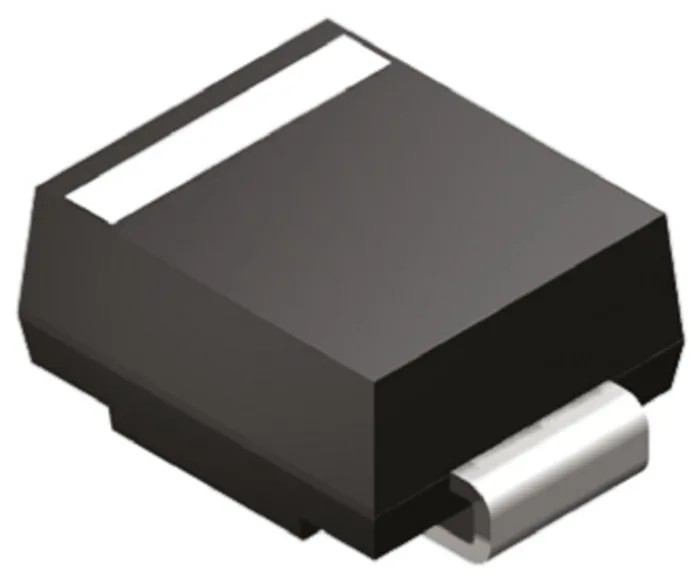

Taiwan Semiconductor 1-Element Bi-Directional Transient Voltage Suppressor 600 W 2-Pin DO-214AA SMBJ75CA

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 1-Element Bi-Directional Transient Voltage Suppressor 600 W 2-Pin DO-214AA SMBJ75CA

Name: Taiwan Semiconductor 1-Element Bi-Directional Transient Voltage Suppressor 600 W 2-Pin DO-214AA SMBJ75CA
Brand: Taiwan Semiconductor
SKU: 132599
Price: 0.19 USD
Availability: InStock



Category Semiconductors Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.15mm
Length	4.75mm
Model	SMBJ75CA
Width	3.95mm
Mount Type	Surface
Series	SMBJ
Maximum Operating Temperature	150°C
Package Type	DO-214AA (SMB)
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	121V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	83.3V
Maximum Reverse Stand-off Voltage Vwm	75V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	5A
Maximum Reverse Leakage Current	5μA

Key Features

This transient voltage suppressor features a single diode configuration for bi-directional voltage protection.
It supports a minimum breakdown voltage of 83.3 V and a maximum reverse stand-off voltage of 75 V.
The component withstands a peak pulse power dissipation of 600 W and a maximum peak pulse current of 5 A.
Designed in a surface mount DO-214AA (SMB) package, it measures 4.75 mm in length, 3.95 mm in width, and 2.15 mm in height.
Operating temperature range spans from -55°C to 150°C ensuring durability under harsh conditions.
Low incremental surge resistance and fast response time improve protection efficiency.
The device is glass-passivated to enhance junction stability and performance.
Maximum reverse leakage current is rated at 5 μA to ensure minimal power loss.

Product Description

Taiwan Semiconductor SMBJ75CA 1-Element Bi-Directional Transient Voltage Suppressor delivers robust voltage surge protection with its 600 W peak pulse power capability. Packaged in a compact 2-pin DO-214AA surface mount package, this device ensures efficient utilization of PCB space.

The device features a single diode configured for bi-directional operation with a minimum breakdown voltage of 83.3 V and maximum reverse stand-off voltage of 75 V, providing a reliable shield against transient voltages. It can withstand a maximum peak pulse current of 5 A and clamping voltage of 121 V, ensuring safeguarding of sensitive components.

Designed for operation over a wide temperature range from -55°C to 150°C, the SMBJ75CA is glass-passivated to enhance junction stability and increase longevity. Its low incremental surge resistance and fast response time contribute towards high efficiency in surge protection applications.

The compact footprint of 4.75 mm length, 3.95 mm width, and 2.15 mm height makes it ideal for modern electronic assemblies requiring space-efficient components. With a maximum reverse leakage current of only 5 μA, power loss is minimized during normal operation.

This transient voltage suppressor does not meet automotive standards but has UL94V-0 flammability classification certification, ensuring safety in industrial and commercial electronic devices.

Single diode configuration for bidirectional transient voltage suppression. Peak pulse power of 600 W handling high energy surges. Surface mount DO-214AA SMB package with compact dimensions. Operates reliably in temperatures ranging from -55°C to 150°C.

Glass-passivated junction for enhanced durability and performance. Low leakage current of 5 μA minimizes power loss. Fast response time and low incremental surge resistance improve protection. UL94V-0 rated flammability suitable for industrial applications.

Ideal for electronics manufacturing, industrial machines, and laboratories. Explore a wide range of Taiwan Semiconductor products and transient voltage suppressors at EnvMart for your electronics and electrical projects and manufacturing needs.
