| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.72mm |
| Length | 5.2mm |
| Model | 1N4745ATR |
| Mount Type | Through Hole |
| Series | 1N47 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 15.5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 16V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 16Ω |

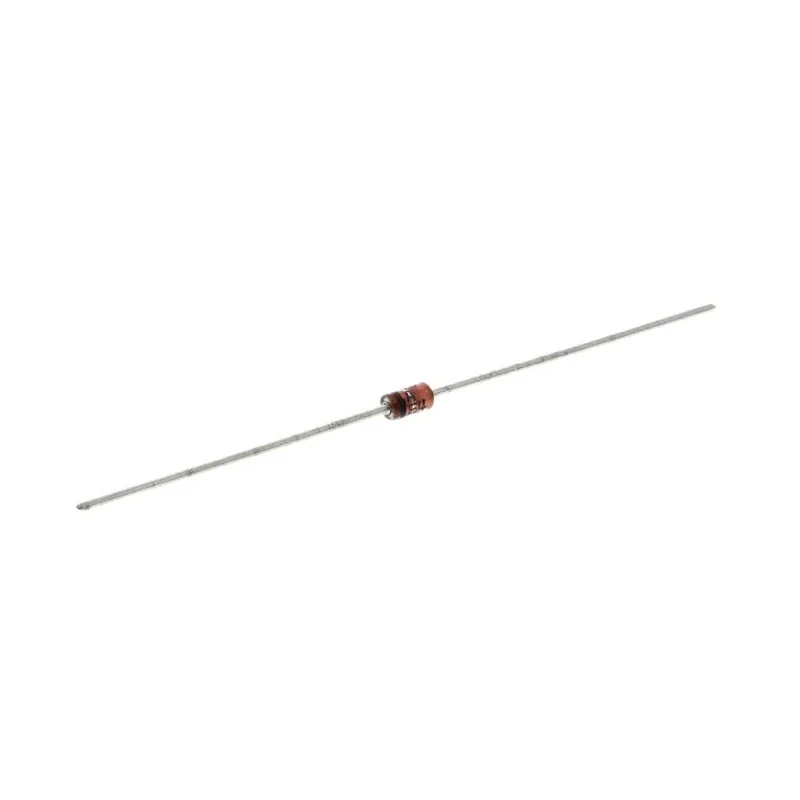

onsemi 1N4745ATR Zener Diode is a highly reliable 16 V, 1 W power general purpose diode designed for voltage regulation in various electronic applications. It is packaged in a through hole DO-41 2-pin configuration, making it suitable for PCB mounting in industrial and commercial circuits.
With a nominal Zener voltage of 16 volts and a tolerance of ±5%, this diode provides stable voltage reference and protection against overvoltage conditions. It dissipates a maximum power of 1 watt and is designed to handle test currents of 15.5 mA, ensuring robust performance.
The diode features a maximum Zener impedance of 16 ohms and a low reverse leakage current of 5 microamps, which maximizes efficiency and minimizes losses. Its temperature operating range spans from -65°C to 200°C, allowing it to function reliably in harsh environmental conditions.
Physically, the diode measures 5.2 mm in length and 2.72 mm in height, with a compact footprint ideal for discrete semiconductor applications. The single-element design is standard in various electronic components for voltage stabilization, voltage reference circuits, and protection devices.
This onsemi Zener diode is suitable for use in industrial electronics, power supplies, communication equipment, and instrumentation. It is commonly found in laboratories, manufacturing systems, HVAC controls, and electrical appliances requiring voltage regulation.
Provides 16 V nominal Zener voltage with ±5% tolerance. Maximum power dissipation of 1 watt. Through hole mount type with DO-41 package. Maximum Zener impedance of 16 ohms. Maximum reverse leakage current of 5 microamps.
Operating temperature range from -65°C to 200°C. Test current of 15.5 mA ensures performance consistency. Compact size for easy PCB integration. Explore EnvMart for a comprehensive range of Zener Diodes and other semiconductor components to meet your industrial and laboratory requirements.
