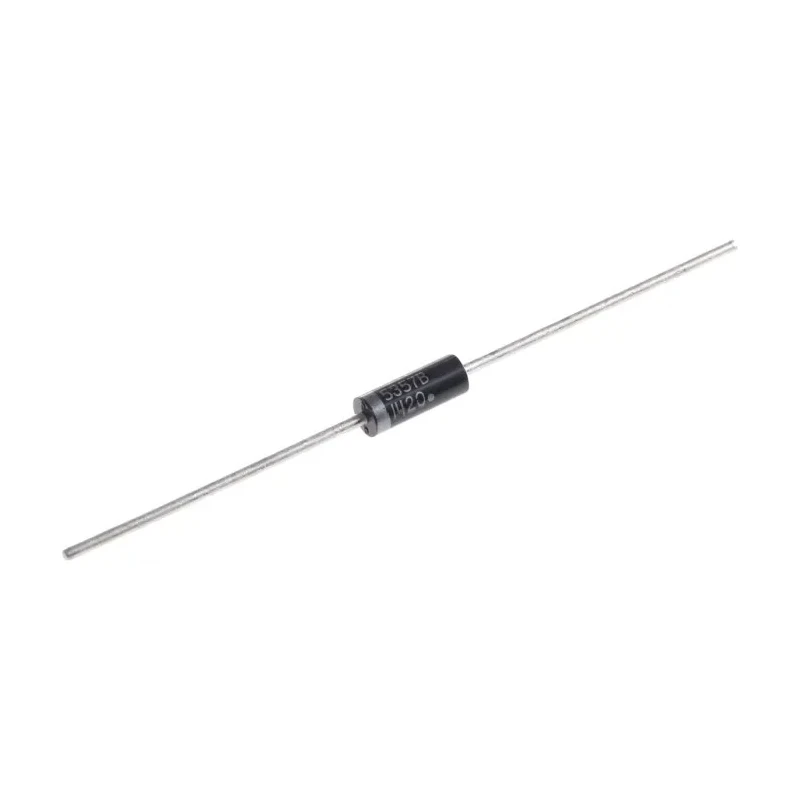

onsemi 20 V Zener Diode, Single 5 W Power Dissipation Through Hole 2-Pin DO-15 1N5357BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5357BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 65mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 20V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 3Ω |
Key Features
- Designed for voltage regulation with a nominal Zener voltage of 20 V and ±5% tolerance.
- Maximum power dissipation of 5 Watts enables reliable performance under load.
- Axial leaded DO-15 package optimized for through-hole mounting.
- Test current of 65 mA ensures stable Zener voltage operation.
- High reliability with temperature operating range from -65°C to 200°C.
- Maximum Zener impedance of 3 Ω for efficient voltage regulation.
- Extremely low maximum reverse leakage current of 500 nA for minimal power loss.
- Surmetic™ 40 axial-leaded design with corrosion-resistant sealed package.
Product Description
onsemi 1N5357BG Zener Diode is a high-performance single-element voltage regulator diode with a nominal Zener voltage of 20 V and a 5 W power rating.
This 2-pin diode is housed in a through-hole DO-15 axial lead package which is molded with void-free transfer-molded thermosetting plastic. This ensures robust protection against environmental factors and reliable operation under diverse industrial conditions.
The device operates reliably within a temperature range from -65°C to 200°C, making it suitable for demanding industrial environments.
With a test current of 65 mA and maximum Zener impedance of only 3 Ω, it maintains tight voltage regulation with minimal losses. Its reverse leakage current is as low as 500 nA, enhancing efficiency and stability in voltage regulation circuits.
Manufactured using Surmetic™ technology, it provides superior silicon-oxide passivated junctions for improved performance. The axial leads are corrosion resistant and facilitate straightforward soldering for ease of assembly.
This voltage regulator diode is designed for a wide range of industrial electrical and electronics applications requiring stable and precise voltage regulation. Designed for voltage regulation with a nominal Zener voltage of 20 V and ±5% tolerance.
Maximum power dissipation of 5 Watts enables reliable performance under load. Axial leaded DO-15 package optimized for through-hole mounting. Test current of 65 mA ensures stable Zener voltage operation. High reliability with temperature operating range from -65°C to 200°C.
Maximum Zener impedance of 3 Ω for efficient voltage regulation. Extremely low maximum reverse leakage current of 500 nA for minimal power loss. Surmetic™ 40 axial-leaded design with corrosion-resistant sealed package. Compatible with industrial applications requiring precise voltage regulation.
For comprehensive options in semiconductor devices, explore the Electronics & Electricals category on EnvMart.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 20 V with a tolerance of ±5%.
This model has a maximum power dissipation of 5 Watts, allowing for reliable performance under load.
It operates reliably within a temperature range from -65°C to 200°C, making it suitable for demanding environments.
The test current for the 1N5357BG is 65 mA, which ensures stable Zener voltage operation.
The maximum reverse leakage current is 500 nA, which helps minimize power loss.
The maximum Zener impedance is 3 Ω, which contributes to efficient voltage regulation.
This diode is housed in a DO-15 axial lead package optimized for through-hole mounting.
This model has a pin count of 2, as it is a single-element diode.
The height of this diode is 3.68 mm and the length is 8.89 mm.
It is a single diode configuration designed for voltage regulation.
This diode is manufactured using Surmetic™ technology, which provides superior silicon-oxide passivated junctions for improved performance.
The country of origin for this diode is India.
