onsemi Digital Transistor NPN 50 V 600 mW Surface Mount SOT-723 3-Pin DTC143TM3T5G

Free Delivery in India | Lowest Global Shipping Charges

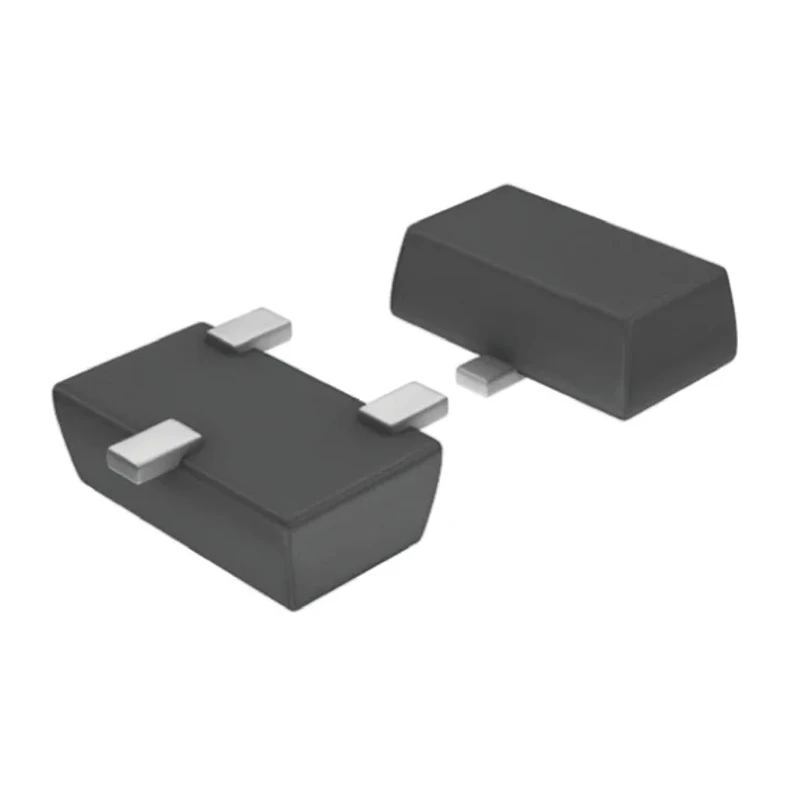

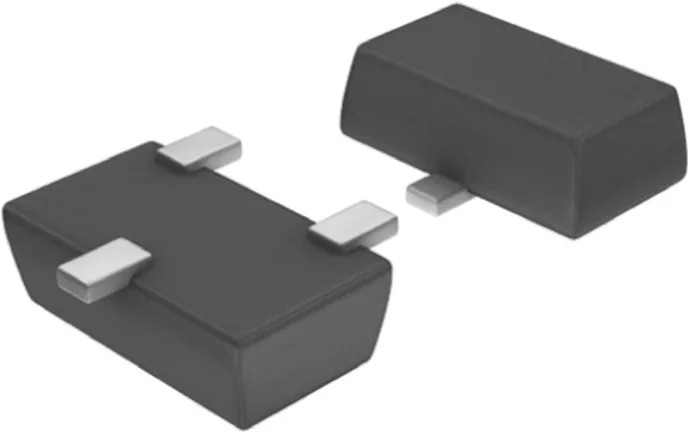

onsemi Digital Transistor NPN 50 V 600 mW Surface Mount SOT-723 3-Pin DTC143TM3T5G

Name: onsemi Digital Transistor NPN 50 V 600 mW Surface Mount SOT-723 3-Pin DTC143TM3T5G
Brand: onsemi
SKU: 132288
Price: 0.05 USD
Availability: InStock



Category Digital Transistor Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	0.55mm
Length	1.25mm
Model	DTC143TM3T5G
Width	0.85mm
Mount Type	Surface
Series	DTC143TM3
Maximum Operating Temperature	150°C
Package Type	SOT-723
Pin Count	3
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	160
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	600mW
Transistor Configuration	Single

Key Features

Features a maximum power dissipation rating of 600 mW suitable for low power switching.
Compact SOT-723 package with dimensions approximately 1.25 mm length, 0.85 mm width, and 0.55 mm height.
Manufactured with integrated bias resistors enabling direct drive from digital circuits.
Automotive qualified to AEC-Q101 standard for enhanced reliability in harsh environments.
Designed to operate safely at temperatures up to 150°C ensuring stable performance.
Minimum DC current gain (hFE) of 160 for effective amplification.
Transistor polarity is NPN with single transistor configuration.
Suitable for a wide range of industrial and electronic applications involving signal amplification and switching.

Product Description

onsemi DTC143TM3T5G digital transistor is a single NPN bipolar transistor featuring integrated bias resistors, designed primarily for surface mount applications in compact SOT-723 packaging measuring approximately 1.25 mm in length, 0.85 mm in width, and 0.55 mm in height.

The device supports a maximum collector emitter voltage (Vceo) of 50 V and maximum collector base voltage (Vcbo) of 50 V, making it suitable for low power switching and amplification tasks in various electronic and industrial circuits.

This digital transistor has a power dissipation rating of 600 mW and a minimum DC current gain (hFE) of 160, ensuring efficient operation with reliable gain characteristics. It is designed to operate at temperatures up to 150°C, thus performing reliably in demanding thermal environments.

The transistor comes with automotive-grade qualifications as per the AEC-Q101 standard, guaranteeing higher reliability for automotive and industrial applications. Its integrated resistor(s) allow direct interfacing with digital logic circuits, simplifying design and reducing component count.

Supplied in a reel package, the device is suitable for automated pick-and-place manufacturing, optimizing production efficiency. It is RoHS compliant, aligning with environmental and safety standards.

Maximum Collector Emitter Voltage: 50 V. Maximum Power Dissipation: 600 mW. Transistor Polarity: NPN. Transistor Configuration: Single. Mount Type: Surface mount (SOT-723). Maximum Operating Temperature: 150°C. Minimum DC Current Gain (hFE): 160.

Automotive Standard: AEC-Q101 qualified.

This transistor is ideal for industrial automation, automotive electronics, communication devices, and other digital switching applications requiring compact and reliable digital transistor solutions.
