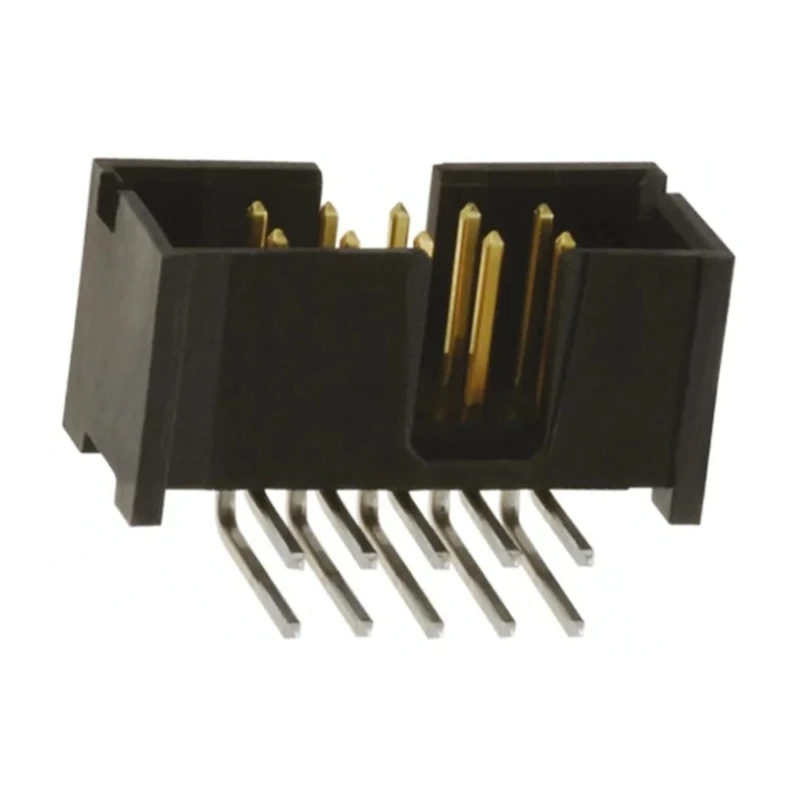

Molex C-Grid Series Right Angle Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70247-1051

The Molex 70247-1051 is a C-Grid Series right angle through hole PCB header designed for wire-to-board applications requiring reliable electrical connections. The component features a dual row, shrouded design with a 2.54 mm pitch between contacts, making it suitable for a wide range of compact electronics and electrical assemblies.

This PCB header includes 10 gold-plated phosphor bronze male contacts offering 2.5A current capacity and supports voltages up to 250V. It operates efficiently under temperatures ranging from -40°C to 120°C, suitable for diverse industrial environments.

Its through hole mount with 3.05 mm tail pin length ensures robust soldering and mechanical stability. The shrouded right angle connector enhances durability and alignment, preventing damage during mating and unmating.

This product is widely used in PCB connector applications such as electronic instrumentation, communications equipment, and industrial control systems. The compact dual row layout facilitates organized wiring and efficient board layout in space-constrained designs.

The header offers excellent conductivity and corrosion resistance due to its gold-plated phosphor bronze contacts. It meets industry standards for durability without specific certifications. The low profile and right angle orientation provide design flexibility for complex PCB assemblies.

The header is intended for new products and manufactured in accordance with quality manufacturing standards.

Choose the Molex C-Grid Series 70247-1051 PCB Header for dependable, space-saving PCB connections. Browse more PCB connectors and electronic components at EnvMart for comprehensive solutions.
