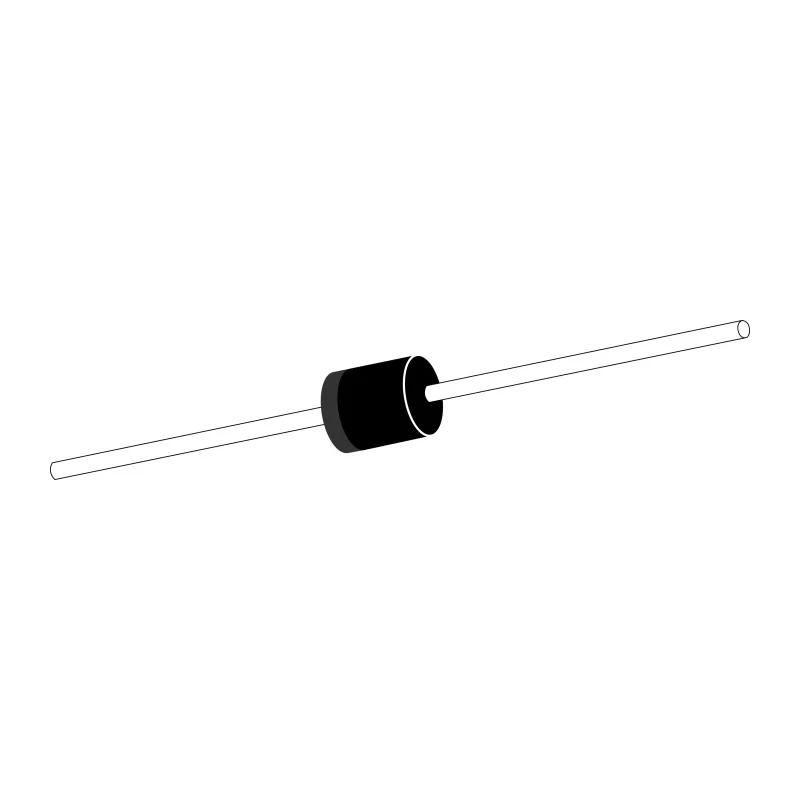

Taiwan Semiconductor General Purpose Rectifier Diode 100 V 6 A Through Hole 2-Pin Package R-6 6A10G R0

The Taiwan Semiconductor 6A10G R0 is a high-quality, general purpose rectifier diode engineered for efficient power regulation and protection in electronic circuits. This diode features a 100 V peak reverse voltage and supports a maximum continuous forward current of 6 amps, making it suitable for medium power rectification tasks.

Its through hole mount type and R-6 package provide secure mechanical and electrical connections in various electronic assemblies. The diode's single configuration with 2 pins simplifies integration into standard circuit boards.

Operating efficiently with a maximum forward voltage of 950 mV, it minimizes conduction losses, ensuring energy-efficient performance. It also supports a high peak non-repetitive forward surge current rating of 250 A, providing robustness against transient current spikes.

The diode operates reliably over a broad temperature range of -65°C up to 150°C, allowing consistent performance in harsh and varied environmental conditions. Its compact form factor with a diameter and width of 7.2 mm and length of 9.1 mm facilitates its use in space-constrained applications.

The peak reverse current is limited to 400 μA, optimizing leakage current characteristics which is vital for power-sensitive devices. It complies with several recognized standards including Method 208, MIL-STD-202, RoHS directives, and UL 94V-0 flammability standards, ensuring product quality and safety.

While it does not meet automotive standards, this diode is ideal for industrial, commercial, and laboratory applications where a reliable, high-performance general purpose rectifier diode is required.

Designed for through hole mounting in an R-6 package. Single diode configuration with 2 pins for easy soldering. Maximum forward voltage drop of 950 mV ensuring efficient conduction. Capable of handling peak non-repetitive forward surge current up to 250 A.

Wide operating temperature range from -65°C to 150°C for reliable performance. Compact dimensions: 7.2 mm diameter, 7.2 mm width, and 9.1 mm length. Peak reverse current typically 400 μA minimizing leakage current. Meets stringent standards: Method 208, MIL-STD-202, RoHS, and UL 94V-0 certified.

Not rated for automotive standard applications.

This Taiwan Semiconductor diode is suitable for applications in electronic manufacturing, power supplies, industrial automation, and laboratory equipment. Find more quality semiconductor and diode solutions under the Schottky Diodes & Rectifiers category at EnvMart.
