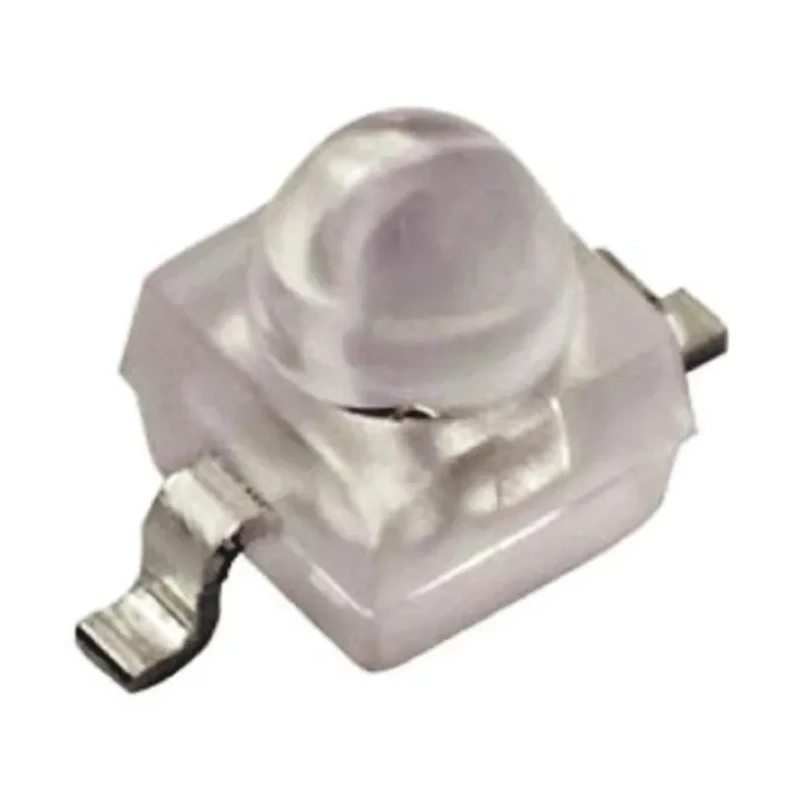

Vishay VEMT2520X01 Phototransistor ±15 ° Angle Visible Light Infrared Surface Mount Subminiature 2-Pin Package
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.8mm |
| Brand | Vishay |
| Dimensions | 2.3 x 2.3 x 2.8 mm |
| Height | 2.77mm |
| Length | 2.3mm |
| Model | VEMT2520X01 |
| Width | 2.3mm |
| Mount Type | Surface |
| Series | VEMT2520 |
| Maximum Operating Temperature | 100°C |
| Package Type | Subminiature |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 850nm |
| Spectrums Detected | Visible Light, Infrared |
| Angle of Half Sensitivity | ±15 ° |
| Collector Current | 50mA |
| Maximum Light Current | 9000μA |
| Maximum Dark Current | 100nA |
| Collector Emitter Voltage | 20V |
| Emitter Collector Voltage | 7V |
| Lead types | gull-wing (GW) or reverse gull-wing (RGW) |
Key Features
- Operates within a temperature range of -40°C to 100°C.
- Maximum collector current is rated at 50 mA.
- Features a surface mount subminiature 2-pin package with dimensions 2.3 x 2.3 x 2.8 mm.
- Exhibits high radiant sensitivity with peak wavelength at 850 nm.
- Equipped with gull-wing or reverse gull-wing lead types for PCB mounting.
- Complies with RoHS standards and automotive AEC-Q101 qualification.
- Designed for fast response times and low dark current (100 nA max).
- Suitable for industrial, electronics, and optoelectronic applications.
Product Description
Vishay VEMT2520X01 is a silicon NPN phototransistor designed for detecting visible light and infrared radiation in a compact surface mount subminiature 2-pin package measuring 2.3 x 2.3 x 2.8 mm. It offers a high radiant sensitivity with a peak wavelength tuned at 850 nm and a ±15 ° angle of half sensitivity, making it ideal for precision sensing in demanding electronic and industrial applications.
Operating reliably over a wide temperature range from -40°C to 100°C, this phototransistor features a maximum collector current rating of 50 mA and a low maximum dark current of 100 nA. It comes with gull-wing or reverse gull-wing lead options that ensure effortless soldering and robust PCB mounting.
Manufactured under stringent RoHS compliance and automotive-grade AEC-Q101 standards, the VEMT2520X01 guarantees durability and quality in automotive and commercial optoelectronics. The clear dome lens epoxy package provides excellent protection while allowing efficient light detection.
Common industry uses include electronics instrumentation, optocoupler circuits, and infrared sensing modules for automation and measurement systems. Its fast response time and high angle precision support reliable performance in machine vision, security, and telecommunications equipment.
Operates within a temperature range of -40°C to 100°C. Maximum collector current is rated at 50 mA. Compact surface mount 2-pin subminiature package. High radiant sensitivity at peak wavelength 850 nm. Available with gull-wing or reverse gull-wing leads.
RoHS compliant and AEC-Q101 automotive approved. Fast response times and low dark current enhance detection accuracy. Clear epoxy dome lens enhances optical performance. Ideal for industrial and electronic component applications.
Explore our extensive catalog to find more Vishay Phototransistors and optoelectronic components designed for industrial precision and reliability with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current for this phototransistor is rated at 50 mA.
It exhibits high radiant sensitivity with a peak wavelength at 850 nm.
This phototransistor comes in a compact surface mount subminiature package measuring 2.3 x 2.3 x 2.8 mm.
It operates reliably within a temperature range of -40°C to 100°C.
It is equipped with gull-wing or reverse gull-wing lead types for PCB mounting.
The maximum dark current is specified at 100 nA.
It complies with RoHS standards and is qualified under automotive AEC-Q101.
This phototransistor is designed to detect visible light and infrared radiation.
The angle of half sensitivity is ±15 °, allowing for precision sensing.
The maximum collector-emitter voltage is rated at 20V.
It is suitable for industrial, electronics, and optoelectronic applications, including electronics instrumentation and infrared sensing modules.
