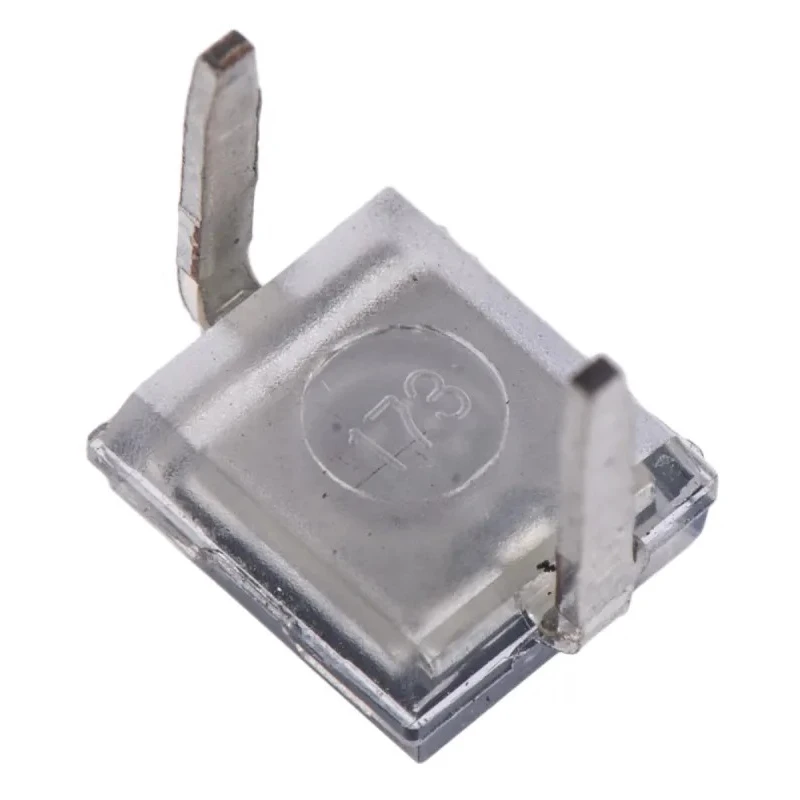

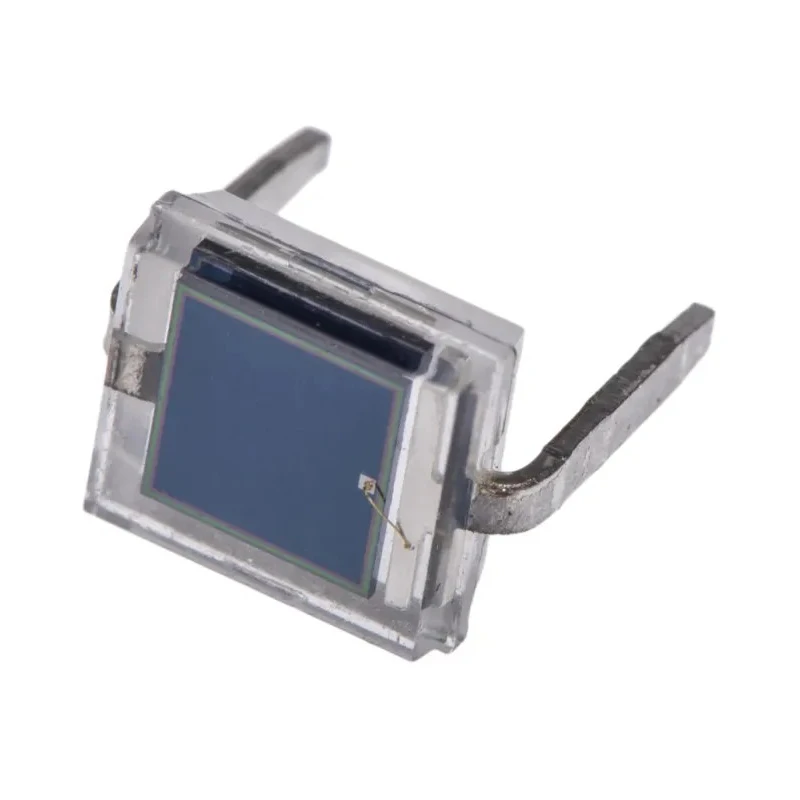

Vishay Visible Light, Infrared Photodiode, 65 ° Half Sensitivity Angle, Through Hole Flat Top BPW34

Vishay BPW34 is a silicon PIN photodiode designed for sensitive detection of visible and near-infrared light, featuring a 65 ° half sensitivity angle and housed in a flat top clear plastic miniature package. It operates efficiently over a wide temperature range from -40°C up to 100°C, making it reliable for various industrial, laboratory, and electronic applications.

The photodiode measures 5.4 mm in length, 4.3 mm in width, and 3.2 mm in height, with a radiant sensitive area of 7.5 mm². It is packaged in tape and reel format, supporting through hole mounting for ease of integration into PCB assembly lines.

Key performance parameters include a dark current of 2 nA, typical rise and fall times of 100 nanoseconds, and an open circuit voltage of 350 mV. The device withstands a breakdown voltage of 60 V and has a short circuit current of 50 microamperes, designed with forward polarity.

This Vishay photodiode demonstrates high photo and radiant sensitivity alongside fast response timing, suitable for high speed photodetector applications in consumer electronics, instrumentation, automation, and optical sensing.

Operates effectively in harsh temperature environments from -40°C to 100°C. Compact flat top package with through hole mount type for versatile PCB integration. High photo sensitivity and radiant sensitivity for precise optical detection.

Fast response times enable usage in dynamic sensing and optical communication systems. Low dark current ensures minimal noise for sensitive measurements. Compliant with RoHS, confirming environmental safety adherence. Packaging in tape and reel supports automated manufacturing processes.

This photodiode is ideal for industrial, laboratory, electronic, and manufacturing applications where reliable visible and infrared light detection is required. Explore more Vishay electronic components and Photodiode solutions with EnvMart for your precision optical detection needs.
