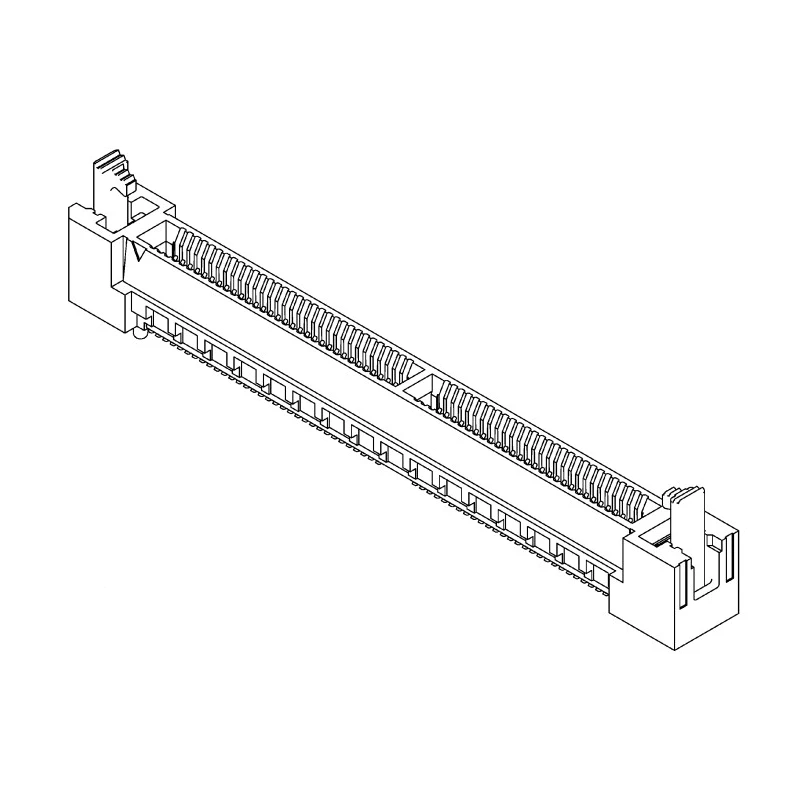

Samtec HSEC8-DV Series Straight Edge Connector Female, Surface Mount, 120-Contacts, 0.8 mm Pitch, 2 Row HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.1A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- This connector features gold over nickel plating ensuring excellent conductivity and corrosion resistance.
- The beryllium copper alloy contacts provide strength and durability for long service life.
- Supports operating temperatures ranging from -55°C up to 125°C suitable for demanding environments.
- Designed to accept 1.6 mm thick cards with a nominal insertion depth of 3.15 mm.
- The surface mount termination type promotes secure PCB installation and ease of manufacturing.
- Rated for a current of 3.1A and a voltage of 240V to support moderate electrical loads.
- Constructed with liquid crystal polymer housing material offering mechanical stability and insulation.
- A key alignment pin ensures precise mating and prevents incorrect insertion.
Product Description
Samtec HSEC8-DV series straight edge connector female is a high-quality surface mount edge connector designed with 120 contacts arranged in 2 rows and 0.8 mm pitch spacing suitable for PCIe cards.
This model features beryllium copper alloy contacts plated with gold over nickel, providing reliable electrical connection and durability for demanding industrial applications. Operating temperature ranges from -55°C minimum to 125°C maximum, allowing its use in harsh industrial, communications, and computing environments.
The termination is surface mount type ensuring efficient PCB assembly with a housing crafted from liquid crystal polymer for excellent mechanical strength and insulation. The HSEC8 series connectors accept cards with 1.6 mm thickness and have a nominal insertion depth of 3.15 mm, further secured by an alignment pin for correct mating.
Gold over nickel contact plating ensures maximum conductivity and corrosion resistance. Beryllium copper alloy contact material enhances contact durability and strength. Supports up to 3.1A current and 240V voltage for moderate electrical load applications.
Designed for PCIe card type connections with 0.8mm pitch and 2 rows of contacts. Surface mount termination allows optimal PCB mounting. Temperature range from -55°C to 125°C accommodates diverse industrial conditions. Liquid crystal polymer housing supplies insulation and mechanical robustness.
This edge connector is suitable for use in electronic component manufacturing, power connectors, computing devices, and industrial automation systems requiring reliable, compact edge card socket solutions.
Explore more high-quality Edge Connectors from Samtec and related electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HSEC8-DV series connector is rated for a maximum current of 3.1A.
It can handle a voltage of up to 240V.
The contacts are arranged with a pitch of 0.8 mm.
This connector operates within a temperature range of -55°C to 125°C.
It features a total of 120 contacts arranged in 2 rows.
It is designed to accept PCIe cards with a thickness of 1.6 mm.
The contacts are made from beryllium copper alloy, providing strength and durability.
It uses a surface mount termination type for efficient PCB assembly.
The housing is constructed from liquid crystal polymer, offering mechanical stability and insulation.
Yes, it includes a key alignment pin to ensure precise mating and prevent incorrect insertion.
The connector is designed with a straight orientation.
The connector is manufactured in India.
