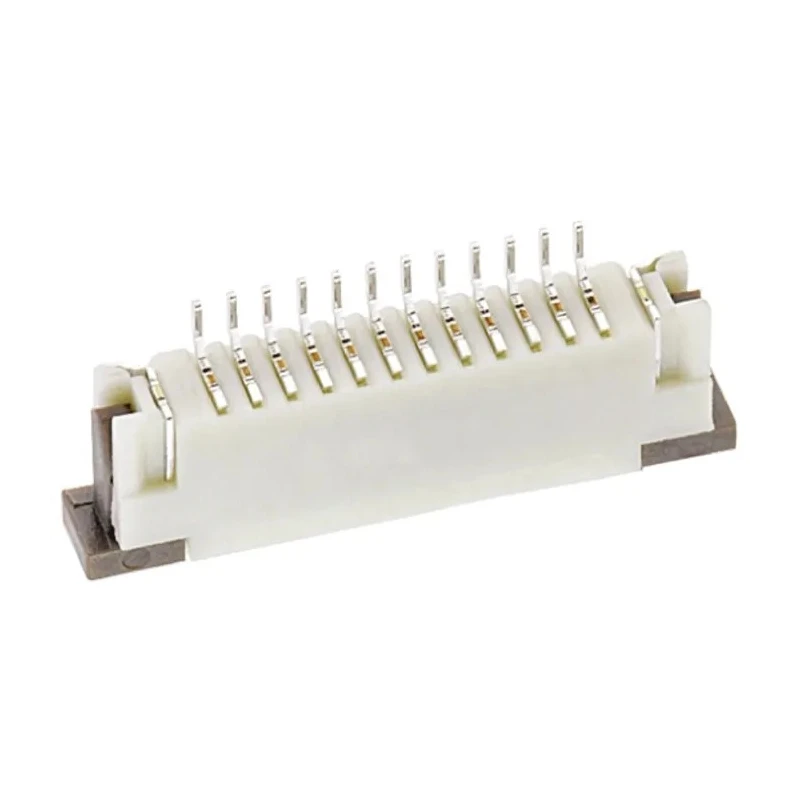

Wurth Elektronik 1 mm Pitch 16 Way Straight Male FPC Connector Solder Pin 68611614122

Wurth Elektronik 68611614122 FPC Connector is a 1 mm pitch, 16 way, straight male connector ideal for wire-to-board PCB applications requiring high reliability and compact design. This surface mount connector uses phosphor bronze contacts and features a Zero Insertion Force (ZIF) mechanism to ease assembly and reduce wear during insertion cycles.

The connector supports a current rating of 1A and a voltage of 125V, suitable for low power electronic circuits. Its housing is made of polyphenylene sulphide with a UL94-V0 flammability rating, ensuring safety and robustness under industrial operating conditions.

Key technical aspects include a top contact position, single row with 16 contacts, tin over nickel plating enhancing corrosion resistance, and an integrated locking mechanism ensuring stable connection during vibration or mechanical stress.

Operating temperatures range from -25°C to 85°C, making it suitable for industrial, commercial, and laboratory electronic assemblies. The design allows for up to 25 mating cycles, supporting repeated connection and disconnection.

Typical use cases include PCB signal interfaces in power management, telecommunications equipment, instrumentation systems, and embedded computing platforms. This connector series supports compact layouts with an emphasis on reliable contact force and ease of use through a ZIF termination style.

Connector series 686 offers a top-contact FPC connector solution with surface mount technology, tailored for manufacturers and assemblers needing consistent quality and performance in electronics production.

Features a pitch of 1 mm for compact connector placement. Includes 16 contacts made from phosphor bronze for reliable conductivity. Male connector gender with solder pin termination for secure PCB mounting. Supports a current rating of 1A and voltage rating of 125V.

Designed with Zero Insertion Force (ZIF) for easy component insertion and removal. Constructed with a polyphenylene sulphide housing providing UL94-V0 flammability rating. Operating temperature range from -25°C to 85°C ensuring durability in varied environments.

Top contact position with tin over nickel contact plating for corrosion resistance. Locking mechanism included for secure connection stability. Series 686 connector suitable for compact electronic applications. Explore more FPC Connectors and related electronic components in the Electronics Components category at EnvMart for your design and production requirements.
