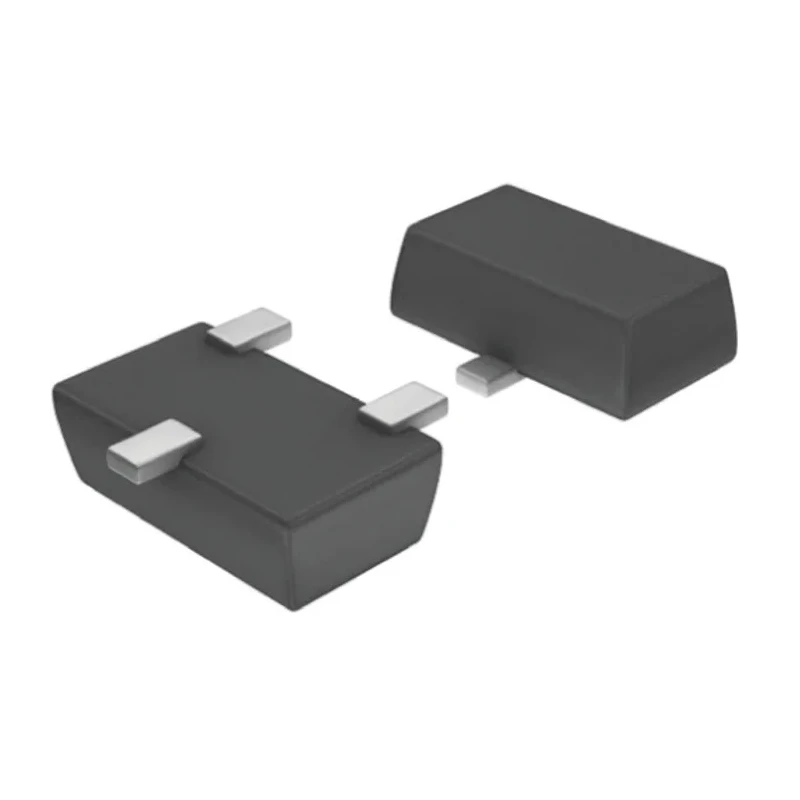

DiodesZetex NPN Bipolar Transistor 4 A, 45 V, 2W Power Dissipation, 3-Pin SOT-23 Package ZXTN07045EFFTA

DiodesZetex ZXTN07045EFFTA is a high-quality NPN bipolar transistor designed for medium power electronic applications requiring up to 4 A collector current and 45 V collector-emitter voltage. Packaged in a compact 3-Pin SOT-23 surface mount device, this transistor offers efficient power dissipation of 2 watts and is suitable for modern, space-constrained PCB designs.

This transistor operates reliably over a wide temperature range from -55°C to 150°C, making it highly durable for industrial, automotive, and commercial electronics. Its minimum DC current gain of 70 supports amplified signal strength with a high transition frequency of 190 MHz enhancing switching speed in RF and amplification tasks.

Certified to meet the automotive standard AEC-Q101, the ZXTN07045EFFTA ensures dependable performance for automotive electronic circuits and systems. Its compact physical dimensions (3 mm by 2.5 mm by 1 mm) allow seamless integration into densely packed electronic assemblies.

Applications include general purpose amplification and switching circuits in automotive, industrial, and consumer electronic equipment. The surface-mount SOT-23 package optimizes assembly with automated placement technologies and reduces board space usage.

This transistor supports a maximum power dissipation of 2 watts ensuring reliable thermal performance. It features a 3-Pin SOT-23 surface mount package ideal for space-efficient PCB layouts. The device operates over a temperature range of -55°C to 150°C making it suitable for harsh environments.

The transistor exhibits a minimum DC current gain (hFE) of 70 with a maximum transition frequency up to 190 MHz. Compliant with automotive standard AEC-Q101 ensuring quality and reliability for automotive designs. Single transistor configuration in an NPN polarity supports versatile circuit applications.

Compact dimensions of 3 mm length, 2.5 mm width, and 1 mm height facilitate integration into diverse electronic systems. Explore the full selection of Bipolar Transistors and other Semiconductor components at EnvMart for your electronic design and manufacturing needs.
