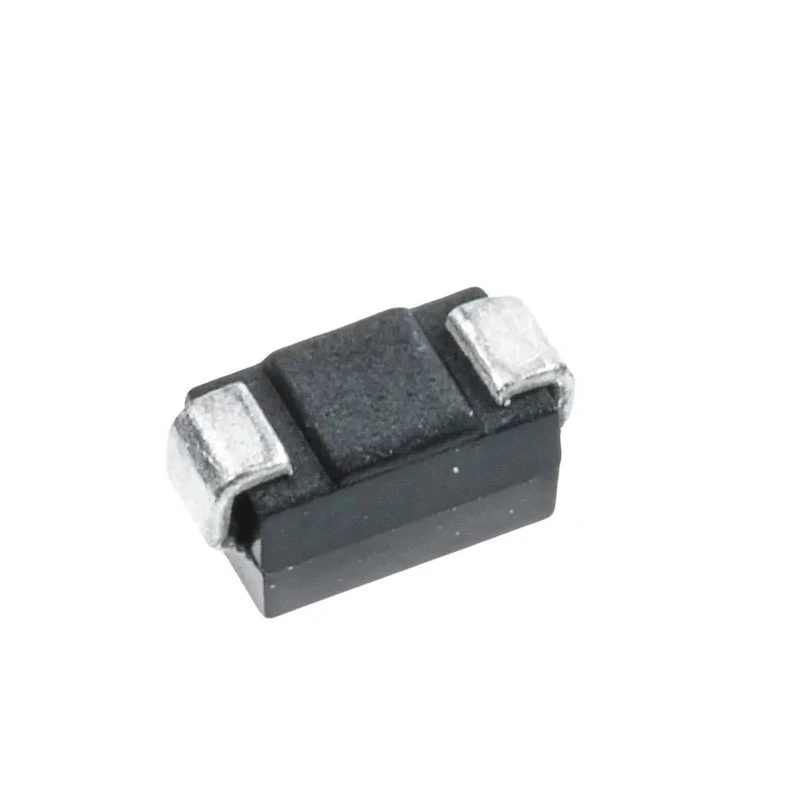

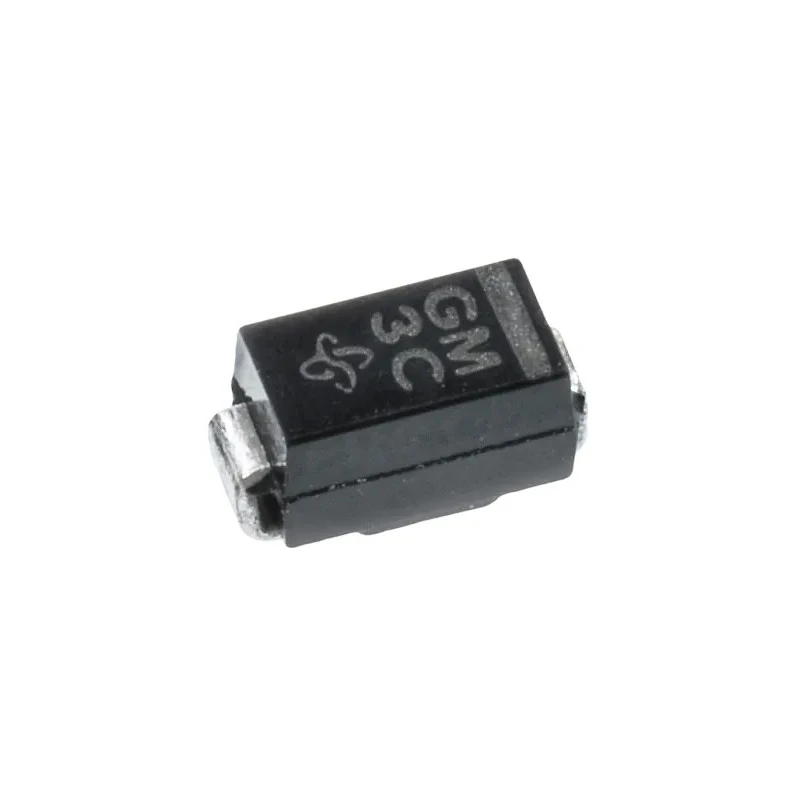

Vishay 1 kV 1 A General Purpose Switching Diode 2-Pin DO-214BA GF1M-E3/5CA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | GF1M-E3/5CA |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | GF1M |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 2μs |
| HY Electronic Corp 1 kV 1 A Diode General Purpose 2-Pin DO-214AC S1MBrand | HY Electronic Corp |
Key Features
- Packaged in a DO-214BA surface mount 2-pin package.
- Maximum continuous forward current of 1 ampere.
- Peak reverse voltage rating of 1 kilovolt providing robust voltage handling.
- Low peak reverse current of 5 microamperes ensures minimal leakage.
- Fast peak reverse recovery time of 2 microseconds for efficient switching.
- Operates reliably between -65°C and 175°C temperature range.
- Maximum forward voltage drop of 1.2 volts at rated current.
- Automotive grade AEC-Q101 compliant ensuring high quality and reliability.
Product Description
Vishay GF1M-E3/5CA is a high-quality general purpose switching diode designed for surface mount applications. It features a DO-214BA 2-pin package suitable for compact electronic assemblies requiring efficient rectification and voltage blocking in a robust form.
This diode supports a maximum continuous forward current of 1 ampere and withstands peak reverse repetitive voltages up to 1 kilovolt. With a low peak reverse current of 5 microamperes and a forward voltage drop of 1.2 volts, it ensures efficient conduction with minimal power loss.
The device exhibits a fast peak reverse recovery time of 2 microseconds, optimizing high-speed switching in industrial, automotive, and consumer electronic circuits. It operates reliably over a broad temperature range from -65°C to 175°C, making it suitable for demanding applications.
Compact physical dimensions (length 4.75 mm, width 2.9 mm, height 2.74 mm) and compliance with the automotive standard AEC-Q101 further enhance its suitability for automotive electronics and industrial controls.
Manufactured in Taiwan, this Vishay diode is RoHS compliant ensuring environmental safety standards. Packaged in a DO-214BA surface mount format. Forward current of 1 A for medium power applications. Voltage blocking capability of 1 kV to protect circuits from high voltages.
High-speed switching with 2 µs recovery time. Wide operating temperature range and automotive qualification.
This diode is ideal for use in power supplies, automotive electronics, industrial equipment, and general semiconductor projects requiring reliable switching and rectification components.
Explore other Vishay electronic components and semiconductors at EnvMart for your design and manufacturing needs.
Explore more products in our Switching Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
This model has a peak reverse voltage rating of 1 kilovolt.
The peak reverse recovery time is 2 microseconds, allowing for efficient switching.
The dimensions of the DO-214BA package are 4.75 mm in length, 2.9 mm in width, and 2.74 mm in height.
It operates reliably within a temperature range of -65°C to 175°C.
The maximum forward voltage drop at rated current is 1.2 volts.
Yes, this diode is compliant with the automotive standard AEC-Q101.
The peak reverse current rating is 5 microamperes, ensuring minimal leakage.
This diode uses surface mount technology, packaged in a DO-214BA format.
The rectifier type is general purpose, suitable for various applications.
This diode is manufactured in Taiwan and is RoHS compliant.
It is suitable for use in power supplies, automotive electronics, industrial equipment, and general semiconductor projects.
